Active Anti-Roll Bar System (Arc Pipes, Rear) (With Roll Stability Control) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Active Anti-Roll Bar System (ARC Pipes, Rear) (With Roll Stability Control) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR6702 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
RYA500020 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FY108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYP500060 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RQB500011 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR038632 INSULATOR - ARB PIPE Enquire To Order
LR038632 INSULATOR - ARB PIPE Enquire To Order
Photo Part No Description Price (each) Stock
RQR500010 COLLET - ARB PIPE Enquire To Order
Photo Part No Description Price (each) Stock
RQB500313 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
RQB500334 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
ANR6704 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
RQU500080 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR085487 KIT - SEAL Enquire To Order
LR085487 KIT - SEAL Enquire To Order
View All

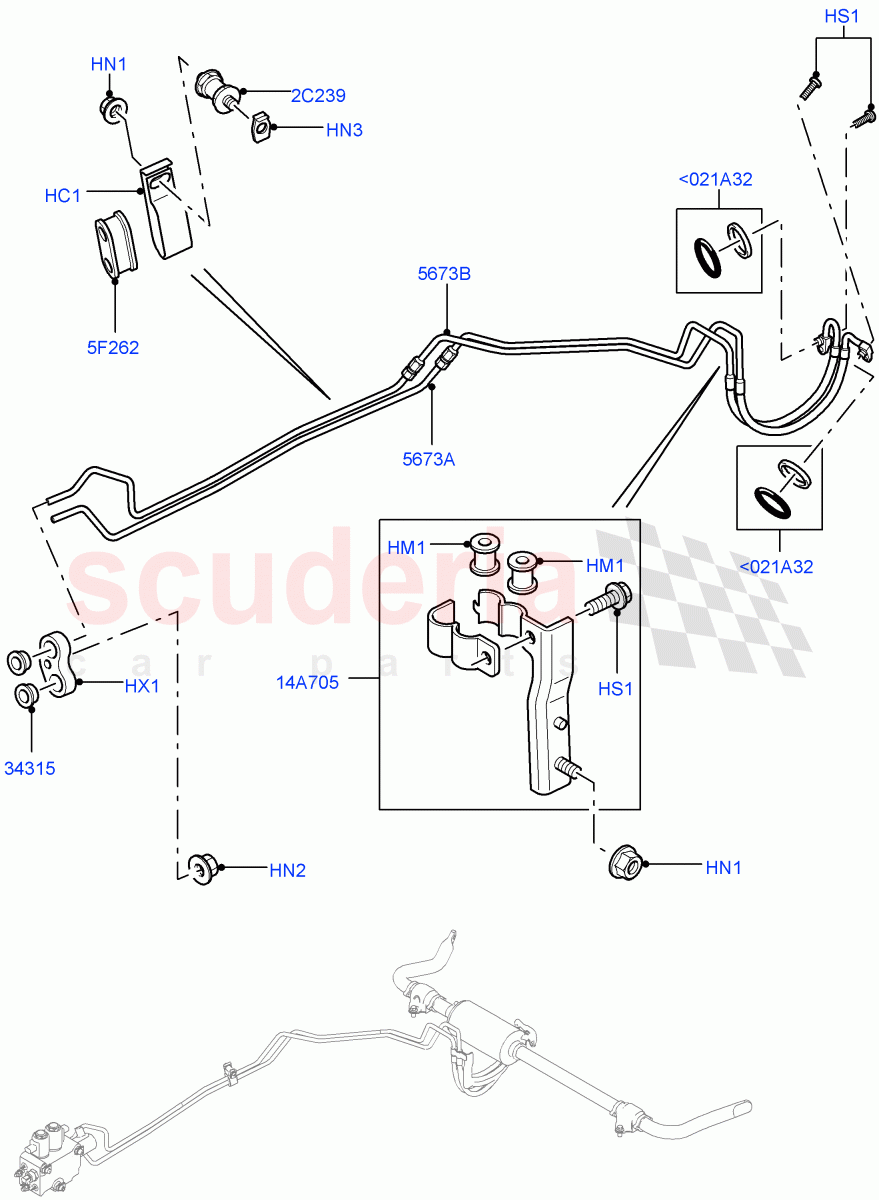

Active Anti-Roll Bar System (ARC Pipes, Rear) (With Roll Stability Control) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR085487
KIT - SEAL
From: AA000001 / To: DA807447 		- 2 Enquire
<021A32 LR085487
KIT - SEAL
From: DA807448 		- 2 Enquire
HC1 ANR6702
CLIP
Double / From: AA000001 		- 1 Enquire
HM1 RYA500020
GROMMET
Grommet / From: AA000001 		- 2 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001 		- 2 Enquire
HN2 FY108046
NUT - HEX.
M8 / From: AA000001 		- 1 Enquire
HN3 LR000053
NUT - FLANGED
M6 / From: AA000001 		- 1 Enquire
HS1 RYP500060
SCREW
M8 X 16MM, Torx / From: AA000001 		- 2 Enquire
HX1 RQB500011
CLIP
ARC Pipes / From: AA000001 		- 1 Enquire
2C239 LR038632
INSULATOR - ARB PIPE
From: AA000001 / To: DA807447 		- 1 Enquire
2C239 LR038632
INSULATOR - ARB PIPE
From: DA807448 		- 1 Enquire
5F262 ANR6704
MOUNTING - RUBBER
From: AA000001 		- 1 Enquire
14A705 RQU500080
BRACKET
From: AA000001 		- 1 Enquire
5673A RQB500313
TUBE
Rear Pipe Actuator A / From: AA000001 		- 1 Enquire
5673B RQB500334
TUBE
Rear Pipe Actuator B / From: AA000001 		- 1 Enquire
34315 RQR500010
COLLET - ARB PIPE
From: AA000001 		- 2 Enquire
