Find Your Part

Timing Gear (Sprockets, Solenoids) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Timing Gear (Sprockets, Solenoids) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA,...

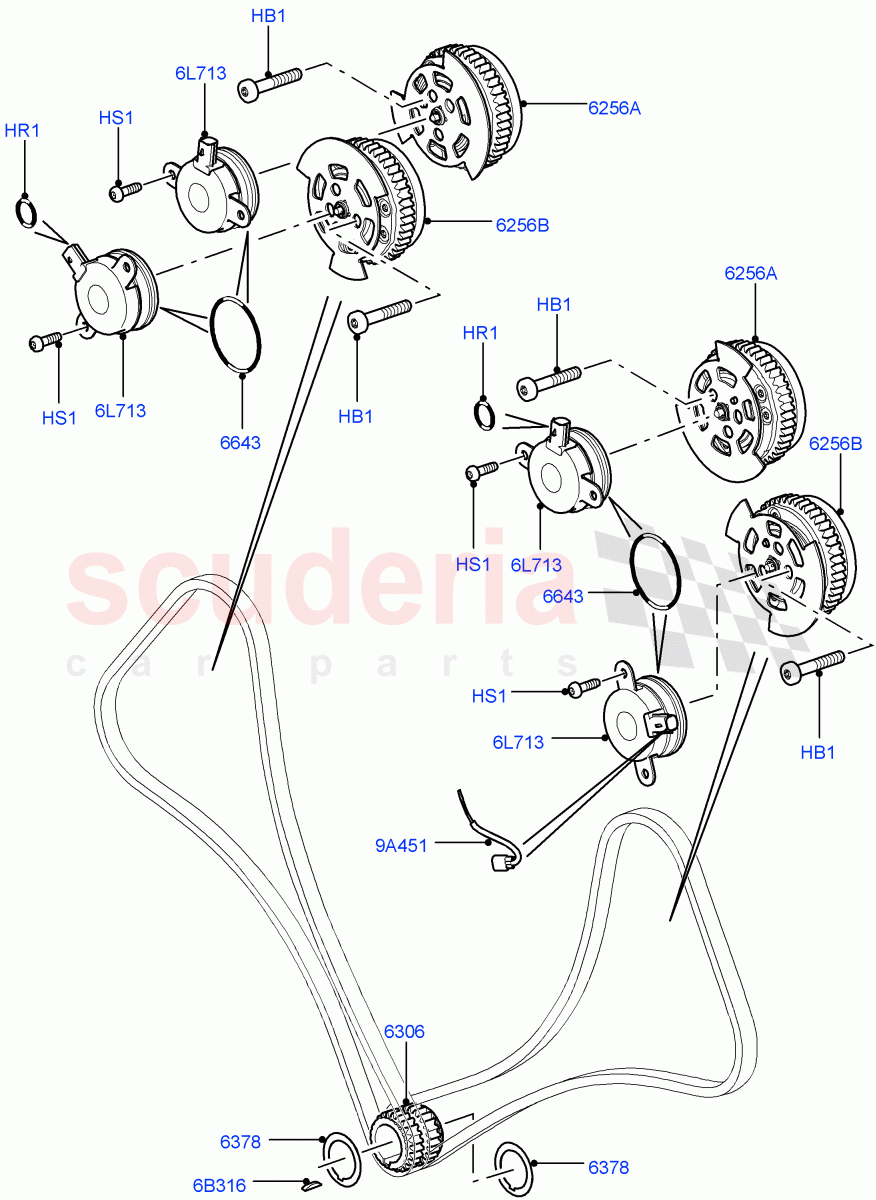

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010694	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045390	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR034108	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010884	GEAR - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011954	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010772	SPROCKET	Enquire	To Order
	LR023934	SPROCKET - CAMSHAFT	Enquire	To Order
	LR041445	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010775	SPROCKET	Enquire	To Order
	LR023931	SPROCKET - CAMSHAFT	Enquire	To Order
	LR041446	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016405	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR019983	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR042160	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061705	WIRE - SOLENOID	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010694	BOLT	LR010694 BOLT Camshaft, M8, Sprocket - Drive / From: AA000001	-	12	Enquire
HR1	LR045390	SOLENOID - ENGINE VARIABLE TIMING	LR045390 SOLENOID - ENGINE VARIABLE TIMING Solenoid - Engine Variable Timing, Wiring Connector / From: AA000001 / To: BA273946	-	4	Enquire
HR1	LR034108	O-RING	LR034108 O-RING Solenoid - Engine Variable Timing, Wiring Connector / From: BA273947	-	4	Enquire
HS1	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Solenoid - Engine Variable Timing / From: AA000001	-	8	Enquire
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF From: AA000001	-	1	Enquire
6L713	LR016405	SOLENOID - ENGINE VARIABLE TIMING	LR016405 SOLENOID - ENGINE VARIABLE TIMING From: AA000001 / To: BA273946	-	4	Enquire
6L713	LR019983	SOLENOID - ENGINE VARIABLE TIMING	LR019983 SOLENOID - ENGINE VARIABLE TIMING From: BA273947 / To: CA739136	-	4	Enquire
6L713	LR042160	SOLENOID - ENGINE VARIABLE TIMING	LR042160 SOLENOID - ENGINE VARIABLE TIMING From: CA739137 / To: DA764957	-	4	Enquire
6L713	LR045390	SOLENOID - ENGINE VARIABLE TIMING	LR045390 SOLENOID - ENGINE VARIABLE TIMING Required LR061705 Repair Link When Replacing Old VCT Solenoid Type / From: DA764958	-	4	Enquire
9A451	LR061705	WIRE - SOLENOID	LR061705 WIRE - SOLENOID For VCT Solenoids With New Connector Type Only, Service Repair Links / From: AA000001	-	4	Enquire
6256A	LR010772	SPROCKET	LR010772 SPROCKET Inlet / From: AA000001 / To: AA242771	-	2	Enquire
6256A	LR023934	SPROCKET - CAMSHAFT	LR023934 SPROCKET - CAMSHAFT Inlet / From: AA242772 / To: DA764957	-	2	Enquire
6256A	LR041445	SPROCKET - CAMSHAFT	LR041445 SPROCKET - CAMSHAFT Inlet / From: DA764958	-	2	Enquire
6256B	LR010775	SPROCKET	LR010775 SPROCKET Exhaust / From: AA000001 / To: AA242771	-	2	Enquire
6256B	LR023931	SPROCKET - CAMSHAFT	LR023931 SPROCKET - CAMSHAFT Exhaust / From: AA242772 / To: DA764957	-	2	Enquire
6256B	LR041446	SPROCKET - CAMSHAFT	LR041446 SPROCKET - CAMSHAFT Exhaust / From: DA764958	-	2	Enquire
6306	LR010884	GEAR - CRANKSHAFT	LR010884 GEAR - CRANKSHAFT From: AA000001	-	1	Enquire
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive / From: AA000001	-	2	Enquire
6643	LR011954	O-RING	LR011954 O-RING Solenoid - Engine Variable Timing / From: AA000001	-	4	Enquire
