Fuel Injectors And Pipes (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Fuel Injectors And Pipes (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

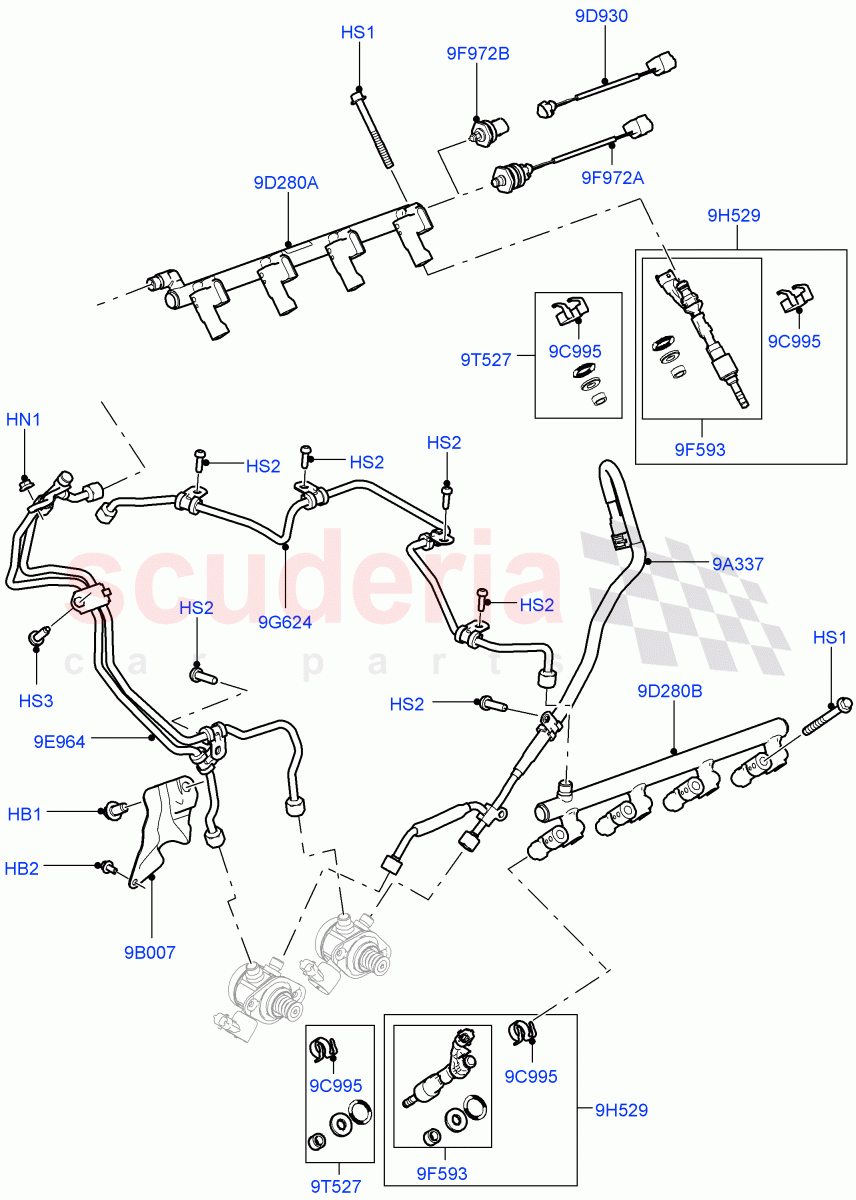

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012779	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106122	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011874	SCREW	Enquire	To Order
	LR030807	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069002	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012782	SHIELD - FUEL TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010767	RETAINER - INJECTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044452	WIRE - ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010832	PIPE - FUEL	Enquire	To Order
	LR030208	PIPE - FUEL	Enquire	To Order
	LR038165	Pipe - Fuel	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR105439	KIT - FUEL INJECTION	Enquire	To Order
	LR079542	INJECTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011349	TUBE - FUEL CROSSOVER	Enquire	To Order
	LR038162	TUBE - FUEL CROSSOVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105439	KIT - FUEL INJECTION	Enquire	To Order
	LR037088	KIT - FUEL INJECTION	Enquire	To Order
	LR069897	KIT - FUEL INJECTION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR020028	KIT - "O" RING	Enquire	To Order
	LR037089	KIT - INJECTOR REFIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010807	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR024838	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR044706	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010810	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR024837	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR035128	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012280	SENSOR - FUEL INJECTOR PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044707	SENSOR - FUEL INJECTOR PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR012779	BOLT	LR012779 BOLT M10 X 20MM / From: AA000001	-	1	Enquire
HB2	FS106122	BOLT	FS106122 BOLT Cover, M6 x 12MM / From: AA000001	-	1	Enquire
HN1	FN105042	NUT - HEX. - FLANGED	FN105042 NUT - HEX. - FLANGED M5 / From: AA000001	-	1	Enquire
HS1	LR011274	SCREW	LR011274 SCREW Fuel Rail / From: AA000001	-	8	Enquire
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM / From: AA000001	-	7	Enquire
HS3	LR011874	SCREW	LR011874 SCREW M8 X 20MM(TORX) / From: AA000001 / To: CA739136	-	1	Enquire
HS3	LR030807	SCREW	LR030807 SCREW M8 X 25MM, Torx / From: CA739137	-	1	Enquire
9A337	LR069002	PIPE - FUEL	LR069002 PIPE - FUEL Low Pressure, Pump Feed / From: AA000001	-	1	Enquire
9B007	LR012782	SHIELD - FUEL TUBES	LR012782 SHIELD - FUEL TUBES Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
9C995	LR010767	RETAINER - INJECTION VALVE	LR010767 RETAINER - INJECTION VALVE From: AA000001	-	8	Enquire
9D280A	LR010807	MANIFOLD - FUEL SUPPLY	LR010807 MANIFOLD - FUEL SUPPLY RH / From: AA000001 / To: AA242772	-	1	Enquire
9D280A	LR024838	MANIFOLD - FUEL SUPPLY	LR024838 MANIFOLD - FUEL SUPPLY RH / From: AA242772 / To: DA771217	-	1	Enquire
9D280A	LR044706	MANIFOLD - FUEL SUPPLY	LR044706 MANIFOLD - FUEL SUPPLY RH / From: DA771218	-	1	Enquire
9D280B	LR010810	MANIFOLD - FUEL SUPPLY	LR010810 MANIFOLD - FUEL SUPPLY LH / From: AA000001 / To: AA242771	-	1	Enquire
9D280B	LR024837	MANIFOLD - FUEL SUPPLY	LR024837 MANIFOLD - FUEL SUPPLY LH / From: AA242772 / To: DA771217	-	1	Enquire
9D280B	LR035128	MANIFOLD - FUEL SUPPLY	LR035128 MANIFOLD - FUEL SUPPLY LH / From: DA771218	-	1	Enquire
9D930	LR044452	WIRE - ADAPTER	LR044452 WIRE - ADAPTER Wire Adapter - To Connect New Trapezoidal Connector Of Fuel Rail Pressure Sensor With Old Engine Harness / From: AA000001 / To: DA771217	-	1	Enquire
9E964	LR010832	PIPE - FUEL	LR010832 PIPE - FUEL Fuel Lines To Fuel Rail, High Pressure / From: AA000001 / To: CA739136	-	1	Enquire
9E964	LR030208	PIPE - FUEL	LR030208 PIPE - FUEL Fuel Lines To Fuel Rail, High Pressure / From: CA739137 / To: CA755855	-	1	Enquire
9E964	LR038165	Pipe - Fuel	LR038165 Pipe - Fuel Fuel Lines To Fuel Rail, High Pressure / From: CA755856 / To: DA772220	-	1	Enquire
9E964	LR042411	PIPE - FUEL	LR042411 PIPE - FUEL Fuel Lines To Fuel Rail, High Pressure / From: DA772221 / To: DA814631	-	1	Enquire
9E964	LR065487	PIPE - FUEL	LR065487 PIPE - FUEL Fuel Lines To Fuel Rail, High Pressure / From: DA814632	-	1	Enquire
9F593	LR105439	KIT - FUEL INJECTION	LR105439 KIT - FUEL INJECTION From: AA000001 / To: DA814631	-	8	Enquire
9F593	LR079542	INJECTOR - FUEL	LR079542 INJECTOR - FUEL From: DA814632	-	8	Enquire
9F972A	LR012280	SENSOR - FUEL INJECTOR PRESSURE	LR012280 SENSOR - FUEL INJECTOR PRESSURE From: AA000001 / To: DA771217	-	1	Enquire
9F972B	LR044707	SENSOR - FUEL INJECTOR PRESSURE	LR044707 SENSOR - FUEL INJECTOR PRESSURE From: DA771218	-	1	Enquire
9G624	LR011349	TUBE - FUEL CROSSOVER	LR011349 TUBE - FUEL CROSSOVER High Pressure / From: AA000001 / To: DA764957	-	1	Enquire
9G624	LR038162	TUBE - FUEL CROSSOVER	LR038162 TUBE - FUEL CROSSOVER High Pressure / From: DA764958	-	1	Enquire
9H529	LR105439	KIT - FUEL INJECTION	LR105439 KIT - FUEL INJECTION Includes Injector And Retainer / From: AA000001 / To: CA999999	-	8	Enquire
9H529	LR037088	KIT - FUEL INJECTION	LR037088 KIT - FUEL INJECTION Includes Injector And Retainer / From: DA000001 / To: DA795867	-	8	Enquire
9H529	LR069897	KIT - FUEL INJECTION	LR069897 KIT - FUEL INJECTION Includes Injector And Retainer, Set Of 4 Pieces / From: DA795868 / To: DA814631	-	2	Enquire
9H529	LR105439	KIT - FUEL INJECTION	LR105439 KIT - FUEL INJECTION Injector Assembly, Kit For 1 Cylinder / From: DA814632	-	8	Enquire
9T527	LR020028	KIT - "O" RING	LR020028 KIT - "O" RING Includes Oring, Teflon Seal, Retainer / From: AA000001 / To: CA999999	-	8	Enquire
9T527	LR037089	KIT - INJECTOR REFIT	LR037089 KIT - INJECTOR REFIT Includes Oring, Teflon Seal, Retainer / From: DA000001	-	8	Enquire
