Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

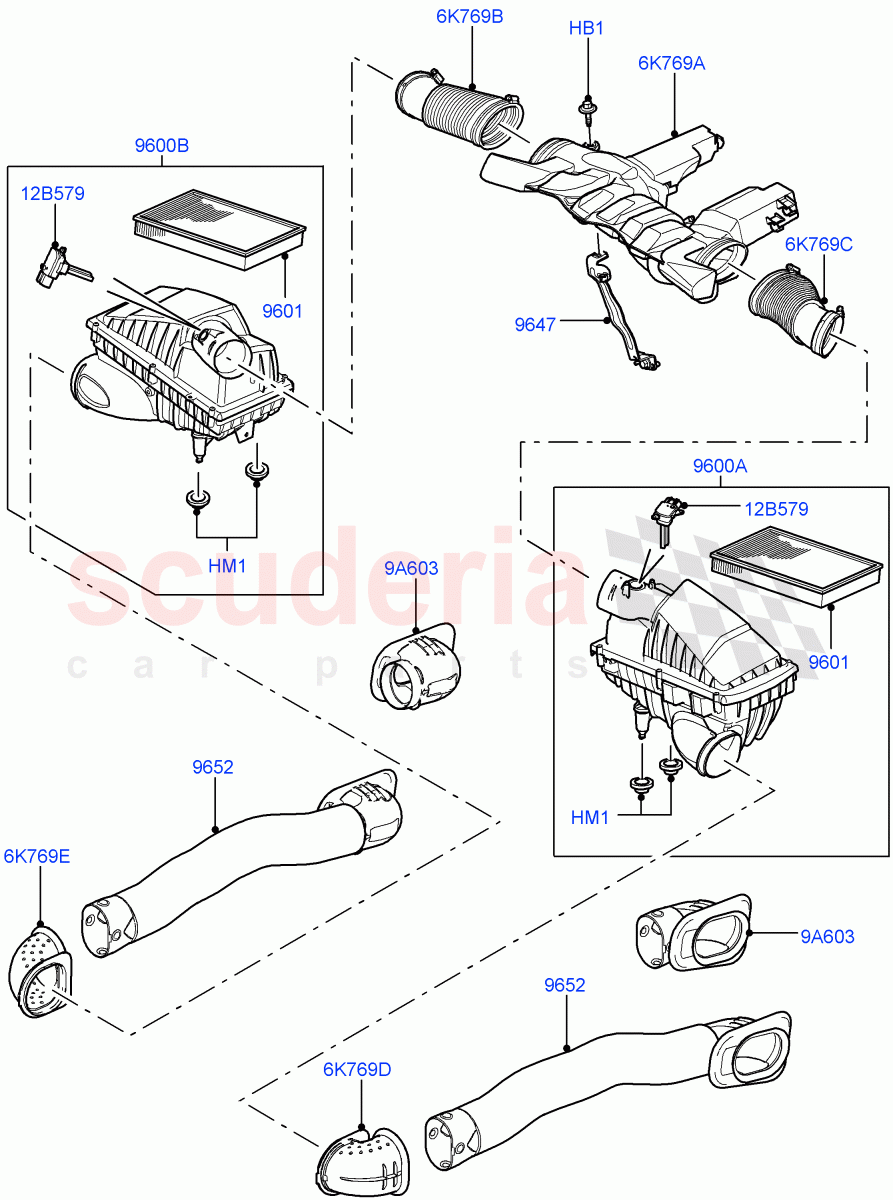

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PJQ500012	MOUNTING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014311	BRACKET - AIR DUCT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013711	TUBE - AIR CLEANER INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013709	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013710	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014213	COVER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012073	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012667	DUCT - AIR	Enquire	To Order
	LR023450	DUCT - AIR	Enquire	To Order
	LR031462	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013706	DUCT - AIR	Enquire	To Order
	LR023811	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013705	DUCT - AIR	Enquire	To Order
	LR023806	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013712	DUCT - AIR	Enquire	To Order
	LR020022	DUCT - AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PHD000714	DUCT - AIR	Enquire	To Order
	LR020024	DUCT - AIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Bracket, Hexagonal Head, M6 X 24MM / From: AA000001	-	1	Enquire
HM1	PJQ500012	MOUNTING - RUBBER	PJQ500012 MOUNTING - RUBBER Mounting Rubber / From: AA000001	-	4	Enquire
6K769A	LR012667	DUCT - AIR	LR012667 DUCT - AIR Air Cleaner To Throttle Body, Centre / From: AA000001 / To: AA239273	-	1	Enquire
6K769A	LR023450	DUCT - AIR	LR023450 DUCT - AIR Air Cleaner To Throttle Body, Centre / From: AA239274 / To: BA705549	-	1	Enquire
6K769A	LR031462	DUCT - AIR	LR031462 DUCT - AIR Air Cleaner To Throttle Body, Centre / From: BA705550	-	1	Enquire
6K769B	LR013706	DUCT - AIR	LR013706 DUCT - AIR RH, Air Cleaner To Throttle Body / From: AA000001 / To: AA256684	-	1	Enquire
6K769B	LR023811	DUCT - AIR	LR023811 DUCT - AIR RH, Air Cleaner To Throttle Body / From: AA256685	-	1	Enquire
6K769C	LR013705	DUCT - AIR	LR013705 DUCT - AIR LH, Air Cleaner To Throttle Body / From: AA000001 / To: AA256684	-	1	Enquire
6K769C	LR023806	DUCT - AIR	LR023806 DUCT - AIR LH, Air Cleaner To Throttle Body / From: AA256685	-	1	Enquire
6K769D	LR013712	DUCT - AIR	LR013712 DUCT - AIR LH, Elbow Connector / From: AA000001 / To: AA229469	-	1	Enquire
6K769D	LR020022	DUCT - AIR INTAKE	LR020022 DUCT - AIR INTAKE LH, Elbow Connector / From: AA229470	-	1	Enquire
6K769E	PHD000714	DUCT - AIR	PHD000714 DUCT - AIR RH, Elbow Connector / From: AA000001 / To: AA225783	-	1	Enquire
6K769E	LR020024	DUCT - AIR	LR020024 DUCT - AIR RH, Elbow Connector / From: AA225784	-	1	Enquire
9A603	LR014213	COVER - AIR CLEANER	LR014213 COVER - AIR CLEANER From: BA700548	-	2	Enquire
12B579	LR012073	SENSOR - MASS AIR FLOW	LR012073 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: AA000001	-	2	Enquire
9600A	LR013709	CLEANER - AIR	LR013709 CLEANER - AIR LH / From: AA000001	-	1	Enquire
9600B	LR013710	CLEANER - AIR	LR013710 CLEANER - AIR RH / From: AA000001	-	1	Enquire
9601	LR161843	FILTER - AIR CLEANER	LR161843 FILTER - AIR CLEANER From: AA000001	-	2	Enquire
9647	LR014311	BRACKET - AIR DUCT SUPPORT	LR014311 BRACKET - AIR DUCT SUPPORT Centre duct / From: AA000001	-	1	Enquire
9652	LR013711	TUBE - AIR CLEANER INTAKE	LR013711 TUBE - AIR CLEANER INTAKE From: AA000001	-	2	Enquire
