Auxiliary Fuel Fired Pre-Heater (Page B) (With Fuel Fired Heater) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Auxiliary Fuel Fired Pre-Heater (Page B) (With Fuel Fired Heater) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ALU1844L BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYP501130 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS106122 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
PYC101890 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FN106041 Nut Enquire To Order
Photo Part No Description Price (each) Stock
JYP500020 SCREW - PAN HEAD - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
LR018305 TUBE - AUXILIARY HEATER SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
JEZ500050 PIPE - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
JHB000420 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
JEX000030 PUMP - WATER Enquire To Order
Photo Part No Description Price (each) Stock
MAN500020 CLIP - FUEL PIPE SECURING Enquire To Order
Photo Part No Description Price (each) Stock
JEX500020 PUMP - FUEL Enquire To Order
LR061887 Pump - Fuel Enquire To Order
LR068412 PUMP - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR013840 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR013937 HEATER - AUXILIARY Enquire To Order
LR021638 HEATER - AUXILIARY Enquire To Order
LR030843 HEATER - AUXILIARY Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR018306 HEATER - AUXILIARY Enquire To Order
LR021632 HEATER - AUXILIARY Enquire To Order
LR030840 HEATER - AUXILIARY Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014459 PIPE - AIR INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR013836 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
JEU500010 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
JEU500040 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
JEG500070 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR013935 CLIP Enquire To Order
View All

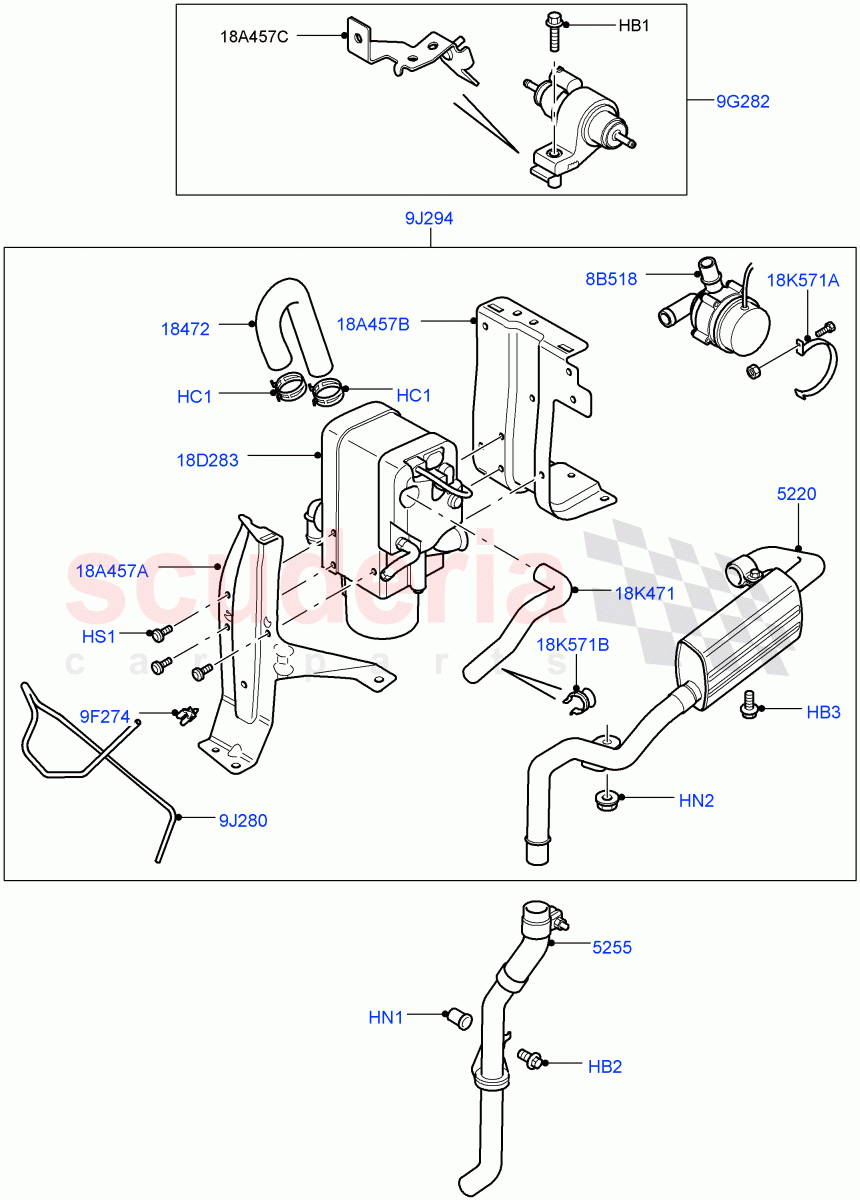

Auxiliary Fuel Fired Pre-Heater (Page B) (With Fuel Fired Heater) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 ALU1844L
BOLT
M6 x 25MM / From: AA000001 		- 1 Enquire
HB2 RYP501130
BOLT
M6 x 12MM / From: AA000001 		- 1 Enquire
HB3 FS106122
BOLT
M6 x 12MM / From: AA000001 		- 1 Enquire
HC1 PYC101890
CLIP
Hose / From: AA000001 		- 2 Enquire
HN1 AWR6715
NUT - SPECIAL
M6 / From: AA000001 		- 1 Enquire
HN2 FN106041
Nut
M6 / From: AA000001 		- 1 Enquire
HS1 JYP500020
SCREW - PAN HEAD - SELF-TAPPING
Fuel Burning Heater / From: AA000001 		- 6 Enquire
8B518 JEX000030
PUMP - WATER
From: AA000001 		- 1 Enquire
9F274 MAN500020
CLIP - FUEL PIPE SECURING
For Fuel Tube / From: AA000001 		- 1 Enquire
9G282 JEX500020
PUMP - FUEL
Connects To Fuel Tank, Rear / From: AA000001 / To: AA999999 		- 1 Enquire
9G282 LR061887
Pump - Fuel
Connects To Fuel Tank, Rear / From: BA000001 / To: BA999999 		- 1 Enquire
9G282 LR068412
PUMP - FUEL
Connects To Fuel Tank, Rear / From: CA000001 		- 1 Enquire
9J280 LR013840
PIPE - FUEL
Fuel Supply / From: AA000001 		- 1 Enquire
9J294 LR013937
HEATER - AUXILIARY
Complete Assembly / From: AA000001 / To: AA233964 		- 1 Enquire
9J294 LR021638
HEATER - AUXILIARY
Complete Assembly / From: AA233965 / To: BA296395 		- 1 Enquire
9J294 LR030843
HEATER - AUXILIARY
Complete Assembly / From: BA296396 / To: DA760919 		- 1 Enquire
9J294 LR043111
HEATER - AUXILIARY
Complete Assembly / From: DA760920 		- 1 Enquire
18A457A LR013836
BRACKET
From: AA000001 		- 1 Enquire
18A457B JEU500010
BRACKET
From: AA000001 		- 1 Enquire
18A457C JEU500040
BRACKET
For Fuel Pump / From: AA000001 		- 1 Enquire
18D283 LR018306
HEATER - AUXILIARY
Heater Main Unit / From: AA000001 / To: AA233964 		- 1 Enquire
18D283 LR021632
HEATER - AUXILIARY
Heater Main Unit / From: AA233965 / To: BA298807 		- 1 Enquire
18D283 LR030840
HEATER - AUXILIARY
Heater Main Unit / From: BA298808 / To: CA742877 		- 1 Enquire
18D283 LR041675
HEATER - AUXILIARY
Heater Main Unit / From: CA742878 / To: CA743877 		- 1 Enquire
18D283 LR066870
HEATER - AUXILIARY
Heater Main Unit / From: CA743878 		- 1 Enquire
18K471 LR014459
PIPE - AIR INLET
From: AA000001 		- 1 Enquire
18K571A JEG500070
CLIP
Attaches To Water Pump / From: AA000001 		- 1 Enquire
18K571B LR013935
CLIP
From: AA000001 		- 1 Enquire
5220 LR018305
TUBE - AUXILIARY HEATER SUPPLY
Fuel Burning Heater / From: AA000001 		- 1 Enquire
5255 JEZ500050
PIPE - EXHAUST
Fuel Burning Heater / From: AA000001 		- 1 Enquire
18472 JHB000420
HOSE
Attaches To Water Pump / From: AA000001 		- 1 Enquire
