Air Suspension Compressor And Lines (Compressor Assy, 'AMK' Compressor) ((V) FROMBA708255, (V) TOCA725268) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Air Suspension Compressor And Lines (Compressor Assy, 'AMK' Compressor) ((V) FROMBA708255, (V)...

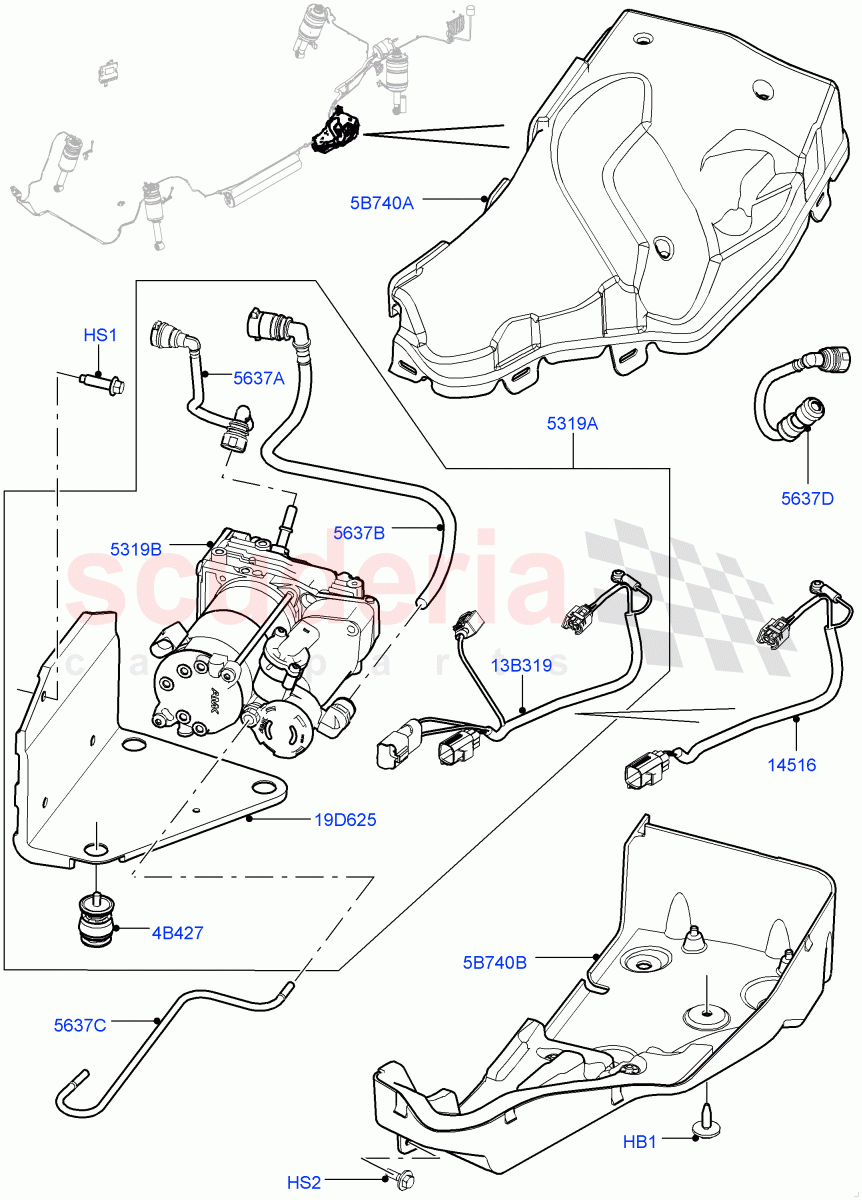

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EYP000270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060166	WIRING - REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038116	MOUNTING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032902	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038148	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038114	TUBE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038115	TUBE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031952	TUBE - COMPRESSOR LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037066	TUBE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038117	WIRE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038118	BRACKET - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031951	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order
	LR045250	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031950	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order
	LR039614	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	EYP000270	SCREW	EYP000270 SCREW M6 X 20MM / From: BA708255	-	1	Enquire
HS1	RYP500110	SCREW	RYP500110 SCREW M8 X 25MM / From: BA708255	-	3	Enquire
HS2	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: BA708255	-	2	Enquire
4B427	LR038116	MOUNTING - RUBBER	LR038116 MOUNTING - RUBBER From: BA708255	-	3	Enquire
5B740A	LR031951	COVER - AIR SUSPENSION COMPRESSOR	LR031951 COVER - AIR SUSPENSION COMPRESSOR Upper / From: BA708255 / To: CA754230	-	1	Enquire
5B740A	LR045250	Cover	LR045250 Cover Upper / From: CA754231	-	1	Enquire
5B740B	LR031950	COVER - AIR SUSPENSION COMPRESSOR	LR031950 COVER - AIR SUSPENSION COMPRESSOR Lower / From: BA708255 / To: CA754230	-	1	Enquire
5B740B	LR039614	COVER - AIR SUSPENSION COMPRESSOR	LR039614 COVER - AIR SUSPENSION COMPRESSOR Lower / From: CA754231	-	1	Enquire
13B319	LR038117	WIRE - AIR COMPRESSOR	LR038117 WIRE - AIR COMPRESSOR Compressor Assy / From: BA708255	-	1	Enquire
19D625	LR038118	BRACKET - COMPRESSOR	LR038118 BRACKET - COMPRESSOR From: BA708255	-	1	Enquire
5319A	LR032902	COMPRESSOR - SUSPENSION LEVELLING	LR032902 COMPRESSOR - SUSPENSION LEVELLING Includes Mounting Bracket, With Pipes, With Wiring Harness / From: BA708255	-	1	Enquire
5319B	LR038148	COMPRESSOR - SUSPENSION LEVELLING	LR038148 COMPRESSOR - SUSPENSION LEVELLING Less Bracket, Less Pipes, With Wiring Harness / From: BA708255	-	1	Enquire
5637A	LR038114	TUBE - AIR COMPRESSOR	LR038114 TUBE - AIR COMPRESSOR Intake / From: BA708255	-	1	Enquire
5637B	LR038115	TUBE - AIR COMPRESSOR	LR038115 TUBE - AIR COMPRESSOR Exhaust / From: BA708255	-	1	Enquire
5637C	LR031952	TUBE - COMPRESSOR LINE	LR031952 TUBE - COMPRESSOR LINE Air Compressor To Valve Block, High Pressure / From: BA708255	-	1	Enquire
5637D	LR037066	TUBE - AIR COMPRESSOR	LR037066 TUBE - AIR COMPRESSOR Intake, Service Only / From: BA708255	-	1	Enquire
14516	LR060166	WIRING - REPAIR	LR060166 WIRING - REPAIR Thermistor Harness Repair / From: BA708255	-	1	Enquire
