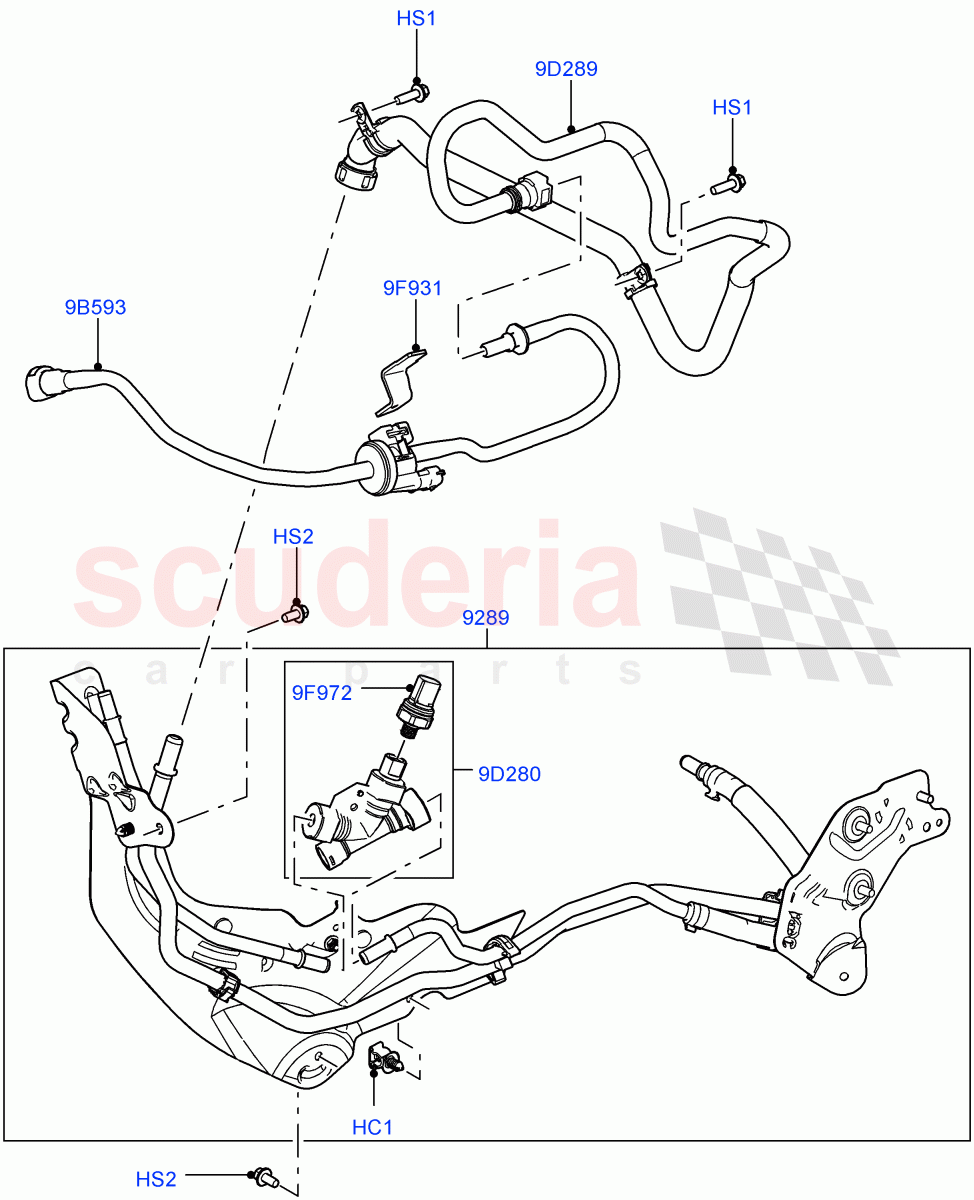

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010546	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500360	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010806	VALVE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013820	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015391	TUBE - FUEL VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011563	BRACKET - FUEL VAPOUR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015356	SENSOR - FUEL INJECTOR PRESSURE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR010546	CLIP	LR010546 CLIP 6 -12 X 0.7 / From: AA000001	-	1	Enquire
HS1	KYP500360	SCREW	KYP500360 SCREW M6 X 20MM / From: AA000001	-	2	Enquire
HS2	FA106126	SCREW	FA106126 SCREW Hexagonal Head, M6 x 12MM / From: AA000001	-	2	Enquire
9B593	LR010806	VALVE - FUEL VAPOUR	LR010806 VALVE - FUEL VAPOUR To Engine, Vapour Line / From: AA000001	-	1	Enquire
9D280	LR013820	MANIFOLD - FUEL SUPPLY	LR013820 MANIFOLD - FUEL SUPPLY With Sensor / From: AA000001	-	1	Enquire
9D289	LR015391	TUBE - FUEL VAPOUR SEPARATOR	LR015391 TUBE - FUEL VAPOUR SEPARATOR From Under Floor Pipes To Vapour Valve, Vapour Line / From: AA000001	-	1	Enquire
9F931	LR011563	BRACKET - FUEL VAPOUR VALVE	LR011563 BRACKET - FUEL VAPOUR VALVE Fuel Vapour Valve / From: AA000001	-	1	Enquire
9F972	LR015356	SENSOR - FUEL INJECTOR PRESSURE	LR015356 SENSOR - FUEL INJECTOR PRESSURE From: AA000001	-	1	Enquire
9289	LR013822	PIPE - FUEL	LR013822 PIPE - FUEL Feed, From Fuel Tank To Under Floor Pipes, Under Floor, Vapour Line / From: AA000001 / To: AA235215	-	1	Enquire
9289	LR021660	PIPE - FUEL	LR021660 PIPE - FUEL Feed, From Fuel Tank To Under Floor Pipes, Under Floor, Vapour Line / From: AA235216	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Fuel Lines (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]
