Fuel Pump And Sender Unit (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Fuel Pump And Sender Unit (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR038099 FILTER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR050538 CONNECTOR - CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR015377 FLOAT Enquire To Order
LR043384 FLOAT Enquire To Order
Photo Part No Description Price (each) Stock
LR021911 FLOAT Enquire To Order
LR015000 FLOAT Enquire To Order
LR042716 SENDER - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR015376 BRACKET - FUEL TANK Enquire To Order
LR042710 BRACKET - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
WQM500020 CONTROL - FUEL PUMP DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR043385 SENDER AND PUMP Enquire To Order
LR043385 SENDER AND PUMP Enquire To Order
View All

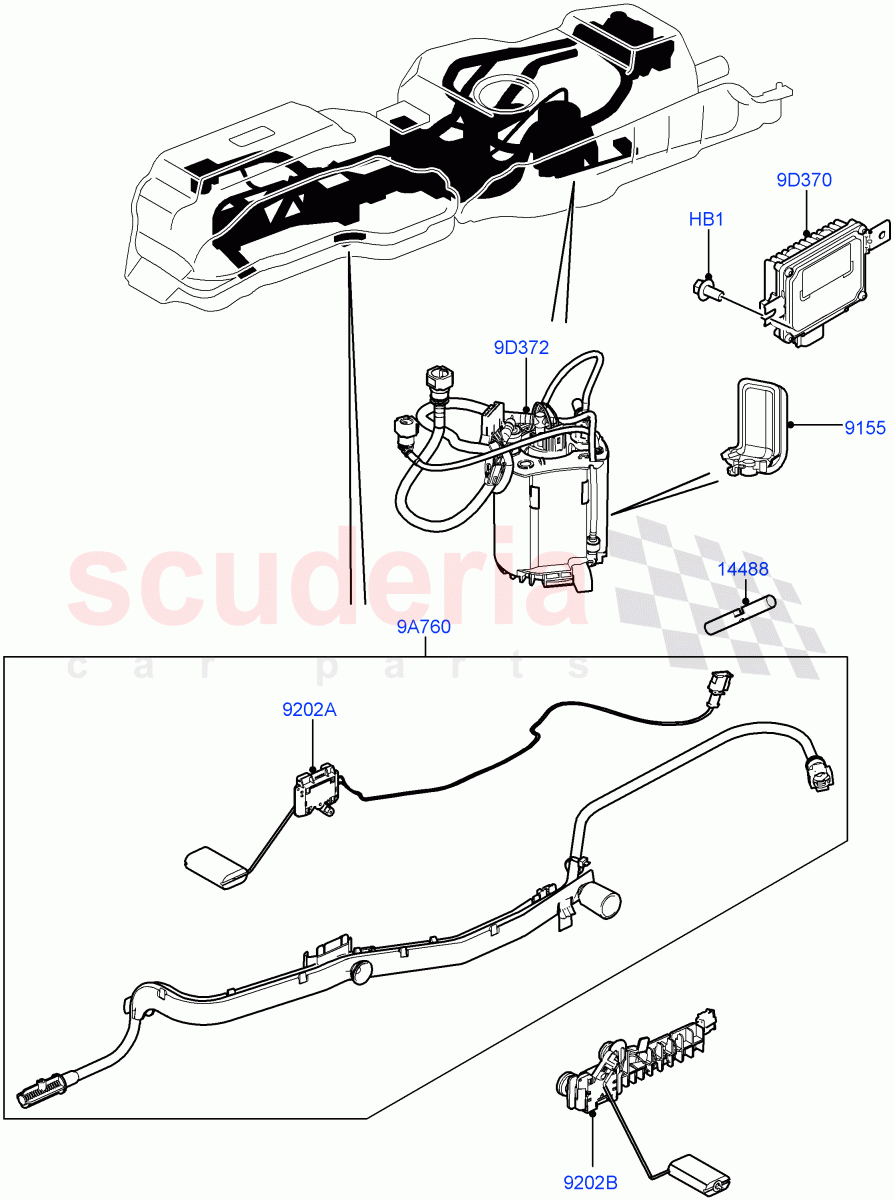

Fuel Pump And Sender Unit (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001 		- 2 Enquire
9A760 LR015376
BRACKET - FUEL TANK
With Fuel Sender / From: AA000001 / To: CA750958 		- 1 Enquire
9A760 LR042710
BRACKET - FUEL TANK
With Fuel Sender / From: CA750959 		- 1 Enquire
9D370 WQM500020
CONTROL - FUEL PUMP DRIVE
For Fuel Pump / From: AA000001 		- 1 Enquire
9D372 LR043385
SENDER AND PUMP
From: AA000001 / To: CA750958 		- 1 Enquire
9D372 LR043385
SENDER AND PUMP
From: CA750959 		- 1 Enquire
9155 LR038099
FILTER - FUEL
(+)"CHN" / From: AA000001 		- 1 Enquire
9202A LR015377
FLOAT
Front / From: AA000001 / To: CA750958 		- 1 Enquire
9202A LR043384
FLOAT
Front / From: CA750959 		- 1 Enquire
9202B LR021911
FLOAT
Rear / From: AA247657 / To: CA750958 		- 1 Enquire
9202B LR015000
FLOAT
Rear / From: AA000001 / To: AA247656 		- 1 Enquire
9202B LR042716
SENDER - FUEL TANK
Rear / From: CA750959 		- 1 Enquire
14488 LR050538
CONNECTOR - CABLE
Fuel Level Sender Harness Connector Repair Kit / From: AA212145 / To: BA712004 		- 6 Enquire
