Name: Oil Pan/Oil Level Indicator (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 4.7 (1 reviews)

Oil Pan/Oil Level Indicator (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Oil Pan/Oil Level Indicator (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

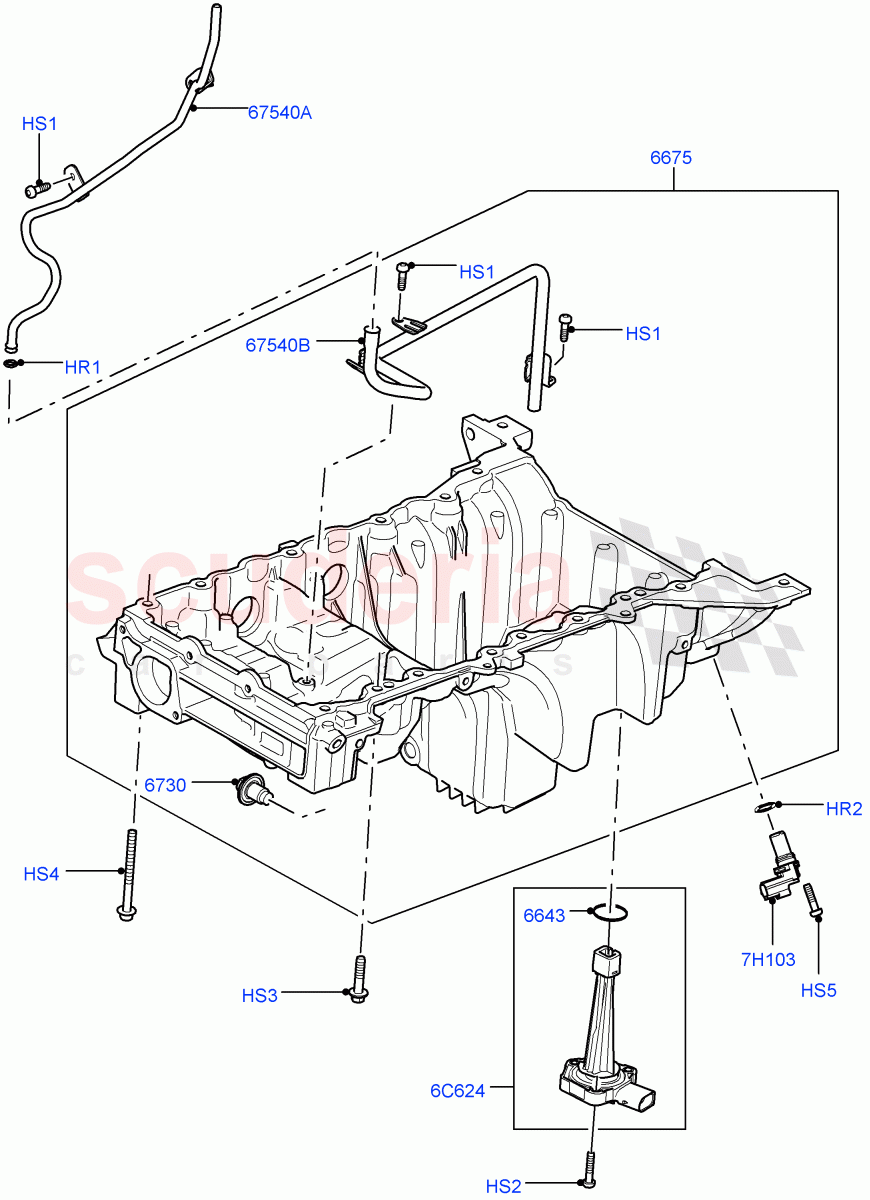

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011206	O-RING	$5.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008872	RING - RUBBER	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011267	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006867	O-RING	$15.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012792	PAN - ENGINE OIL	$1,068.34	To Order
	LR035934	PAN - ENGINE OIL	$712.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4594914	PLUG - OIL DRAIN	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	$85.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008876	SENSOR - ENGINE SPEED	$129.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010727	TUBE - OIL EXTRACTION	$42.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011312	TUBE - OIL	$48.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR011206	O-RING	LR011206 O-RING Tube - Oil Extraction / From: AA000001	$5.40	1
HR2	LR008872	RING - RUBBER	LR008872 RING - RUBBER 14 x 1MM, Sensor - Crankshaft Position - CPS / From: AA000001	$4.63	1
HS1	LR011267	SCREW IN STOCK	LR011267 SCREW M6 X 20MM, Tube Indicator / From: AA000001 IN STOCK	$1.00	4
HS2	LR011271	SCREW IN STOCK	LR011271 SCREW M6 x 30MM, Sensor - Oil Level / From: AA000001 IN STOCK	$1.19	3
HS3	LR011700	SCREW IN STOCK	LR011700 SCREW M8 X 35MM, Oil Pan / From: AA000001 IN STOCK	$1.34	11
HS4	LR011274	SCREW	LR011274 SCREW Oil Pan / From: AA000001	$2.49	5
HS5	LR011270	SCREW IN STOCK	LR011270 SCREW M6 x 25MM, To Crankshaft Sensor, Torx / From: AA000001 IN STOCK	$1.19	1
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL From: AA000001	$85.24	1
7H103	LR008876	SENSOR - ENGINE SPEED	LR008876 SENSOR - ENGINE SPEED Sensor - Crankshaft Position - CPS / From: AA000001	$129.10	1
6643	LR006867	O-RING	LR006867 O-RING Sensor - Oil Level / From: AA000001	$15.61	1
6675	LR012792	PAN - ENGINE OIL	LR012792 PAN - ENGINE OIL From: AA000001 / To: CA742436	$1,068.34	1
6675	LR035934	PAN - ENGINE OIL	LR035934 PAN - ENGINE OIL From: CA742437	$712.57	1
6730	4594914	PLUG - OIL DRAIN	4594914 PLUG - OIL DRAIN M14 X 1.5 / From: AA000001	$5.32	1
67540A	LR010727	TUBE - OIL EXTRACTION	LR010727 TUBE - OIL EXTRACTION Upper / From: AA000001	$42.94	1
67540B	LR011312	TUBE - OIL	LR011312 TUBE - OIL Lower / From: AA000001	$48.18	1
