Vacuum Control And Air Injection (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009660 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR011273 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR010690 PUMP - VACUUM Enquire To Order
LR048796 PUMP - VACUUM Enquire To Order
LR060475 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR015539 HOSE - VACUUM Enquire To Order
LR015540 HOSE - VACUUM Enquire To Order
LR020553 HOSE - VACUUM Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015541 HOSE - VACUUM Enquire To Order
LR020554 HOSE - VACUUM Enquire To Order
LR048231 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR010811 HOSE - VACUUM Enquire To Order
LR025086 HOSE - VACUUM Enquire To Order
LR105295 HOSE - VACUUM Enquire To Order
View All

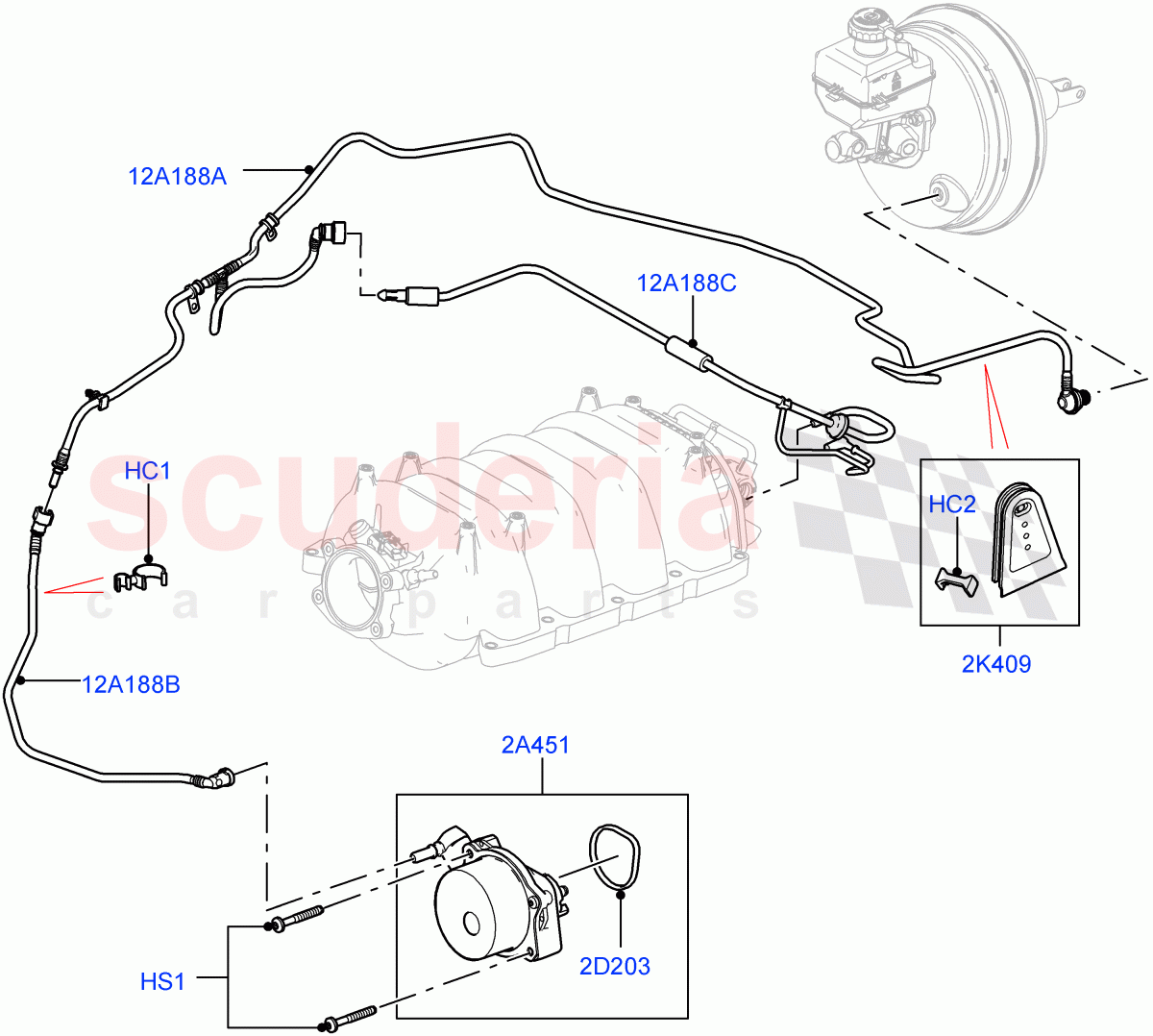

Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR009660
CLIP
Double, Vacuum Pump Hose / From: AA000001 		- 2 Enquire
HS1 LR011273
SCREW
M6 X 45MM, Pump - Vacuum / From: AA000001 		- 2 Enquire
2A451 LR010690
PUMP - VACUUM
From: AA000001 / To: DA814631 		- 1 Enquire
2A451 LR048796
PUMP - VACUUM
From: DA814632 / To: DA999999 		- 1 Enquire
2A451 LR060475
PUMP - VACUUM
From: EA000001 		- 1 Enquire
2D203 LR012685
SEAL - VACUUM PUMP
From: AA000001 		- 1 Enquire
12A188A LR015539
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: AA000001 / To: AA237065 		- 1 Enquire
12A188A LR015540
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: AA000001 / To: DA763777 		- 1 Enquire
12A188A LR020553
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: AA237066 / To: CA753330 		- 1 Enquire
12A188A LR038330
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: CA753331 / To: DA787598 		- 1 Enquire
12A188A LR038331
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: DA763778 / To: DA813052 		- 1 Enquire
12A188A LR048230
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: DA813053 		- 1 Enquire
12A188A LR046111
HOSE - VACUUM
LHD / Brake Vacuum Booster / From: DA787599 		- 1 Enquire
12A188B LR015541
HOSE - VACUUM
Pump - Vacuum / From: AA000001 / To: AA241656 		- 1 Enquire
12A188B LR020554
HOSE - VACUUM
Pump - Vacuum / From: AA241657 / To: DA794959 		- 1 Enquire
12A188B LR048231
HOSE - VACUUM
Pump - Vacuum / From: DA794960 		- 1 Enquire
12A188C LR010811
HOSE - VACUUM
From: AA000001 / To: AA999999 		- 1 Enquire
12A188C LR025086
HOSE - VACUUM
From: BA000001 / To: CA600354 		- 1 Enquire
12A188C LR105295
HOSE - VACUUM
From: CA600355 		- 1 Enquire
