Timing Gear Covers (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Timing Gear Covers (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4540794 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR011413 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
LR010706 SEAL - CRANKSHAFT OIL - FRONT $50.37 To Order
Photo Part No Description Price (each) Stock
LR011995 COVER - CYLINDER FRONT $149.67 To Order
Photo Part No Description Price (each) Stock
LR011216 COVER - CYLINDER FRONT $132.58 To Order
Photo Part No Description Price (each) Stock
LR011217 COVER - CYLINDER FRONT $105.14 To Order
LR032086 COVER - CYLINDER FRONT $138.62 IN STOCK
Photo Part No Description Price (each) Stock
LR014372 SENSOR - CAMSHAFT POSITION $220.89 To Order
View All

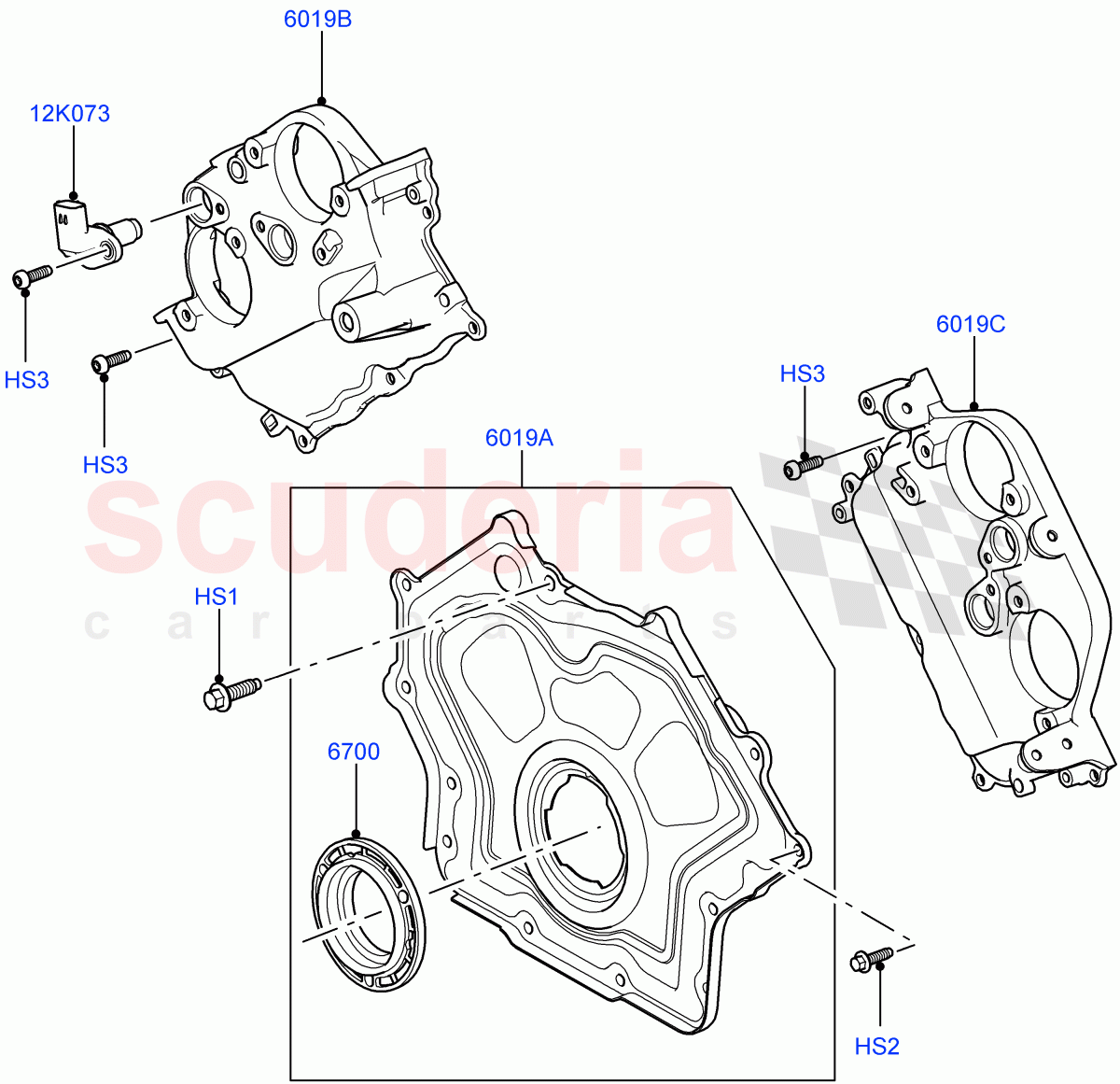

Timing Gear Covers (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4540794
SCREW
Front Cover to Cyl Block, M8 X 25MM / From: AA000001 		$1.53 1
HS2 LR011413
SCREW
Front Cover to Cyl Block, M6 X 20MM / From: AA000001 		$1.04 12
HS3 LR010904
SCREW
M6 X 20MM / From: AA000001 		$1.19 14
12K073 LR014372
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: AA000001 		$220.89 4
6019A LR011995
COVER - CYLINDER FRONT
Front Cover to Cyl Block / From: AA000001 		$149.67 1
6019B LR011216
COVER - CYLINDER FRONT
RH Upper / From: AA000001 		$132.58 1
6019C LR011217
COVER - CYLINDER FRONT
LH Upper / From: AA000001 / To: CA739136 		$105.14 1
6019C LR032086
COVER - CYLINDER FRONT
LH Upper / From: CA739137
IN STOCK 		$138.62 1
6700 LR010706
SEAL - CRANKSHAFT OIL - FRONT
From: AA000001 		$50.37 1
