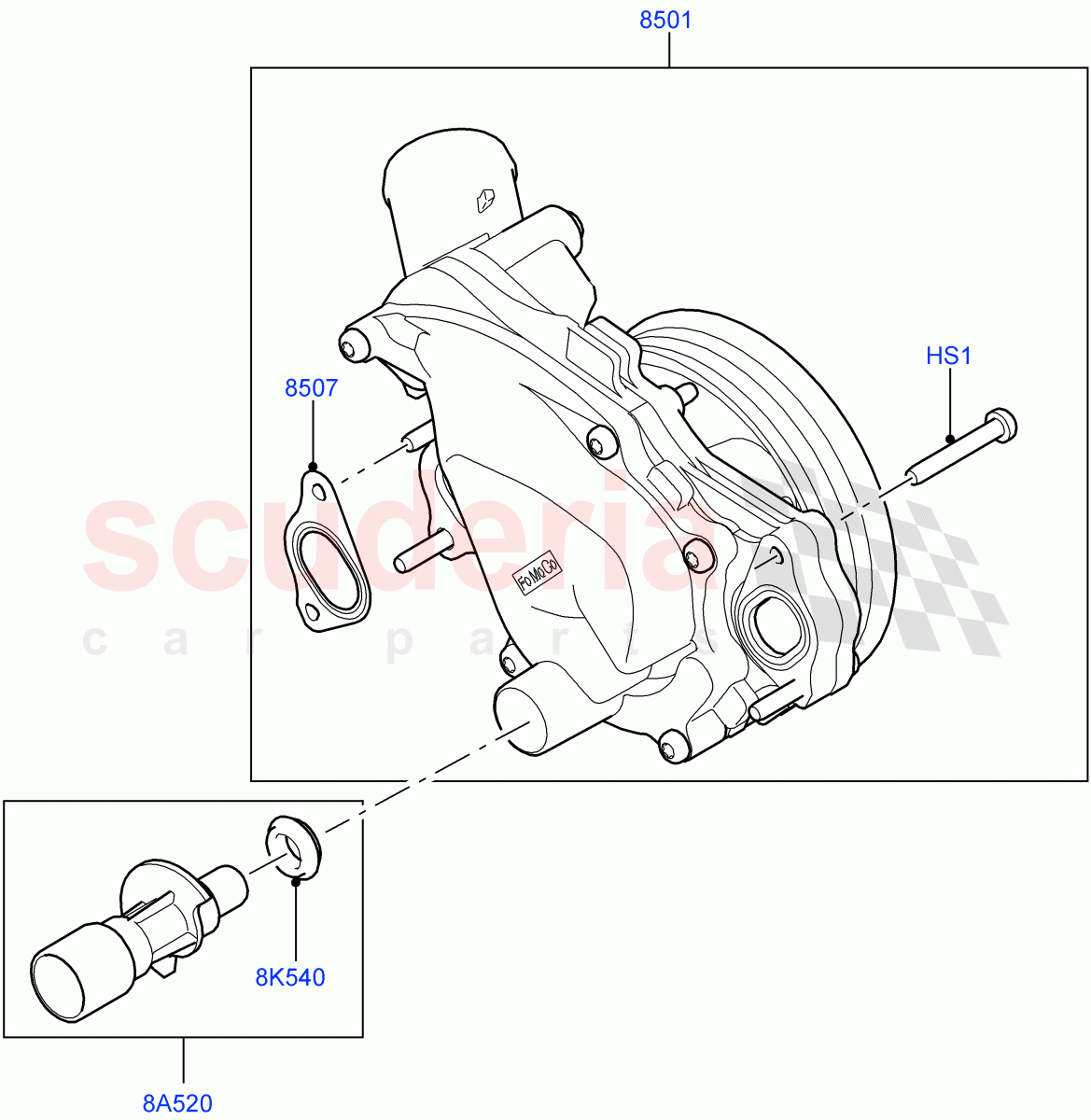

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030593	SEAL - OIL COOLER OUTLET WATER PUMP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx / From: AA000001	-	4	Enquire
8A520	LR011997	TUBE - OIL COOLER	LR011997 TUBE - OIL COOLER Oil Cooler Hose / From: AA000001 / To: AA999999	-	1	Enquire
8A520	LR028136	TUBE - OIL COOLER	LR028136 TUBE - OIL COOLER Oil Cooler Hose / From: BA000001	-	1	Enquire
8K540	LR030593	SEAL - OIL COOLER OUTLET WATER PUMP	LR030593 SEAL - OIL COOLER OUTLET WATER PUMP Oil Cooler Outlet Pipe / From: AA000001	-	1	Enquire
8501	LR010801	PUMP - WATER	LR010801 PUMP - WATER From: AA000001 / To: CA718163	-	1	Enquire
8501	LR097165	PUMP - WATER	LR097165 PUMP - WATER From: CA718164 / To: DA814631	-	1	Enquire
8501	LR055239	PUMP - WATER	LR055239 PUMP - WATER From: DA814632	-	1	Enquire
8507	LR011562	GASKET - WATER PUMP	LR011562 GASKET - WATER PUMP From: AA000001 / To: BA999999	-	2	Enquire
8507	LR049370	GASKET - WATER PUMP	LR049370 GASKET - WATER PUMP From: CA000001	-	2	Enquire
