Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

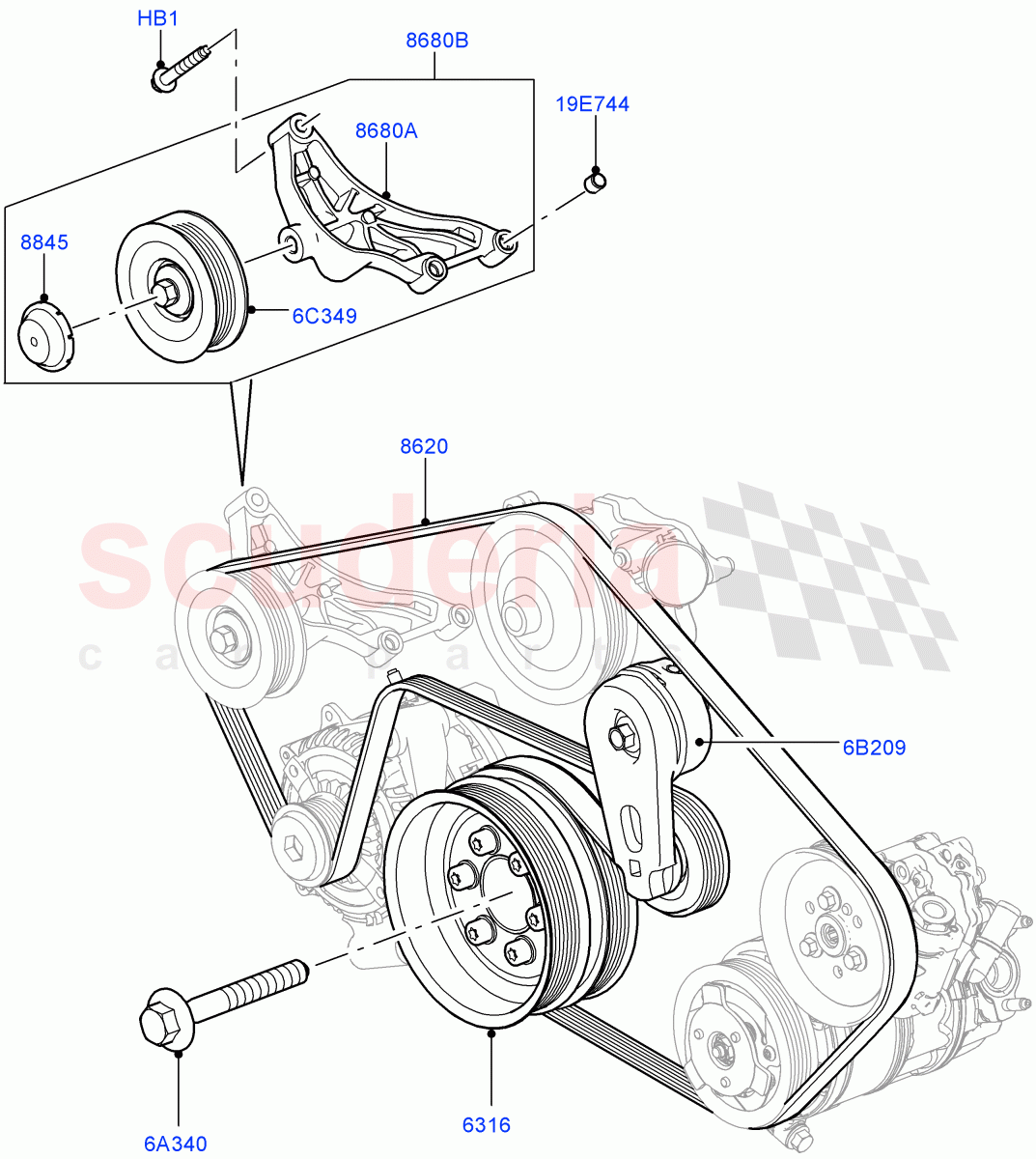

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012000	PULLEY - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011345	V-BELT	Enquire	To Order
	LR064185	BELT - ACCESSORY DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010756	TENSIONER	Enquire	To Order
	LR071035	TENSIONER - DRIVE BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106769	IDLER	Enquire	To Order
	LR010689	IDLER	Enquire	To Order
	LR106769	IDLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029159	BRACKET - IDLER PULLEY	Enquire	To Order
	LR012980	BRACKET - IDLER PULLEY	Enquire	To Order
	LR077670	BRACKET - IDLER PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099573	BRACKET - IDLER PULLEY	Enquire	To Order
	LR099573	BRACKET - IDLER PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYU500020	PIN - LOCATING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	4567977	BOLT	4567977 BOLT Bracket, M8 X 50 / From: AA000001	-	3	Enquire
6A340	LR011952	BOLT M18 X110	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft / From: AA000001	-	1	Enquire
6B209	LR010756	TENSIONER	LR010756 TENSIONER Includes Bolt, Primary Drive / From: AA000001 / To: CA999999	-	1	Enquire
6B209	LR071035	TENSIONER - DRIVE BELT	LR071035 TENSIONER - DRIVE BELT Includes Bolt, Primary Drive / From: DA000001	-	1	Enquire
6C349	LR106769	IDLER	LR106769 IDLER 90MM, Drive Belt / From: DA000001 / To: DA793722	-	1	Enquire
6C349	LR010689	IDLER	LR010689 IDLER 90MM, Drive Belt / From: AA000001 / To: CA999999	-	1	Enquire
6C349	LR106769	IDLER	LR106769 IDLER 90MM, Drive Belt / From: DA793723	-	1	Enquire
19E744	PYU500020	PIN - LOCATING	PYU500020 PIN - LOCATING	-	2	Enquire
6316	LR012000	PULLEY - CRANKSHAFT	LR012000 PULLEY - CRANKSHAFT From: AA000001	-	1	Enquire
8620	LR011345	V-BELT	LR011345 V-BELT Primary Drive / From: AA000001 / To: DA814631	-	1	Enquire
8620	LR064185	BELT - ACCESSORY DRIVE	LR064185 BELT - ACCESSORY DRIVE Primary Drive / From: DA814632	-	1	Enquire
8680A	LR029159	BRACKET - IDLER PULLEY	LR029159 BRACKET - IDLER PULLEY From: BA275354 / To: BA999999	-	1	Enquire
8680A	LR012980	BRACKET - IDLER PULLEY	LR012980 BRACKET - IDLER PULLEY From: AA000001 / To: BA275353	-	1	Enquire
8680A	LR077670	BRACKET - IDLER PULLEY	LR077670 BRACKET - IDLER PULLEY From: CA000001	-	1	Enquire
8680B	LR099573	BRACKET - IDLER PULLEY	LR099573 BRACKET - IDLER PULLEY With Idler / From: AA000001 / To: BA999999	-	1	Enquire
8680B	LR099573	BRACKET - IDLER PULLEY	LR099573 BRACKET - IDLER PULLEY With Idler / From: CA000001	-	1	Enquire
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY For Plastic Idler LR035544 / From: DA000001	-	1	Enquire
