Front Seat Pads/Valances & Heating ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Front Seat Pads/Valances & Heating ((V) FROMAA000001)

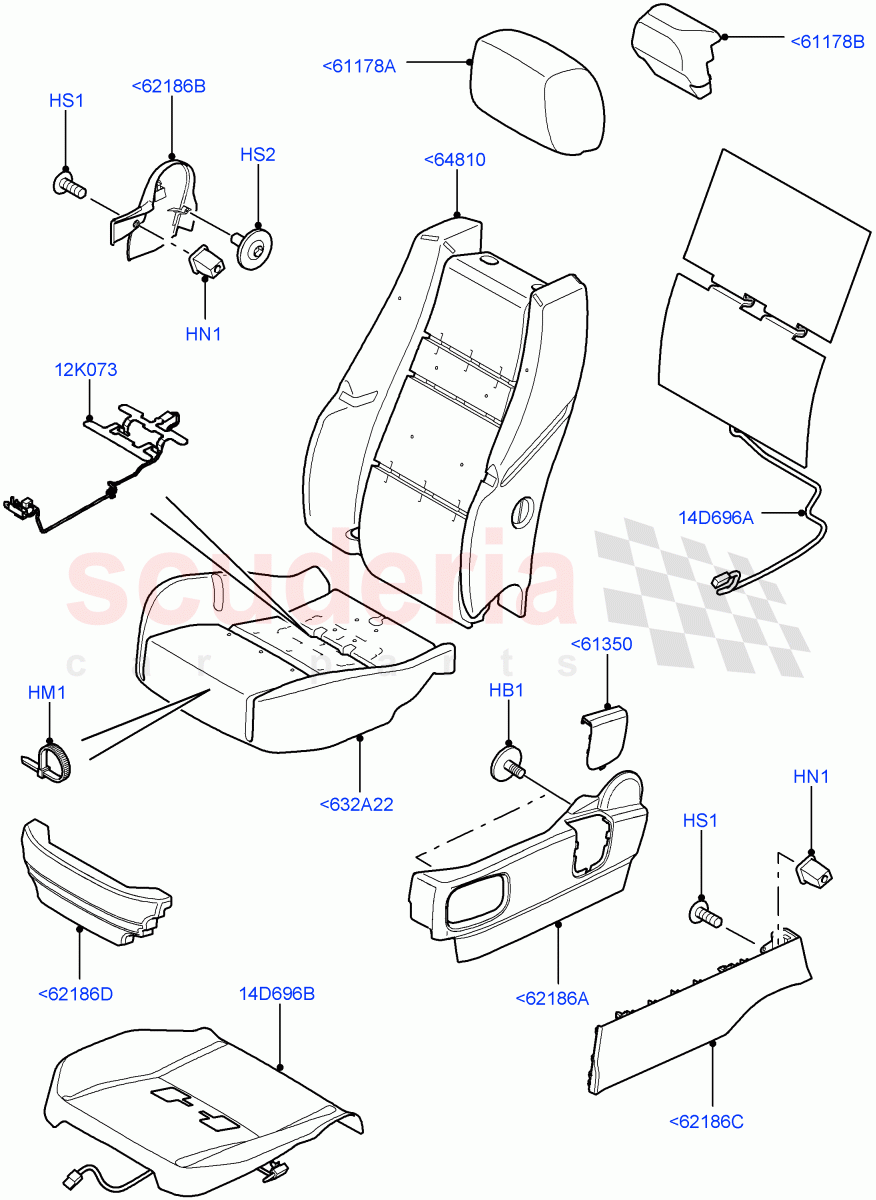

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYG500110 BOLT - SHOULDERED Enquire To Order
Photo Part No Description Price (each) Stock
LR039437 CABLE TIE Enquire To Order
Photo Part No Description Price (each) Stock
HYH000110 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
DA608044L SCREW - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
HYG500070 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR016498 COVER - SEAT VALANCE Enquire To Order
LR016499 COVER - SEAT VALANCE Enquire To Order
LR016501 COVER - ACCESS HOLE Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015099 PAD - SEAT BACK Enquire To Order
LR015101 PAD - SEAT BACK Enquire To Order
LR015102 PAD - SEAT BACK Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR017308 SENSOR - BODY WEIGHT - AIRBAG Enquire To Order
Photo Part No Description Price (each) Stock
HGH500020 PAD - HEADREST Enquire To Order
Photo Part No Description Price (each) Stock
HGH500030 PAD - HEADREST Enquire To Order
Photo Part No Description Price (each) Stock
LR015065 VALANCE - SEAT CUSHION Enquire To Order
LR015067 VALANCE - SEAT CUSHION Enquire To Order
LR015068 VALANCE - SEAT CUSHION Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR009208 VALANCE - SEAT CUSHION Enquire To Order
HJE500100NUG VALANCE - SEAT SIDE Enquire To Order
HJE500110NUG VALANCE - SEAT SIDE Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
EBV500022PVJ VALANCE - SEAT CUSHION Enquire To Order
LR008680 VALANCE - SEAT CUSHION Enquire To Order
EBV500032PVJ VALANCE - SEAT CUSHION Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016889 VALANCE - SEAT SIDE Enquire To Order
LR016890 VALANCE - SEAT SIDE Enquire To Order
LR016891 VALANCE - SEAT SIDE Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016234 PAD - SEAT CUSHION Enquire To Order
HGB500050 PAD - SEAT CUSHION Enquire To Order
LR021399 PAD - SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR016247 ELEMENT Enquire To Order
LR016248 ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR016245 ELEMENT - HEATING Enquire To Order
LR016246 ELEMENT - HEATING Enquire To Order
View All
Front Seat Pads/Valances & Heating ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<632A22 LR016234
PAD - SEAT CUSHION
With Sports Base Bench Rear Seat / Not For Use With NAS Passenger Seat / From: AA000001 / To: AA224293 		- 2 Enquire
<632A22 HGB500050
PAD - SEAT CUSHION
With Conventional Rear Seat / Not For Use With NAS Passenger Seat / From: AA000001 		- 2 Enquire
<632A22 LR021399
PAD - SEAT CUSHION
With Sports Base Bench Rear Seat / Not For Use With NAS Passenger Seat / From: AA224294 		- 2 Enquire
<61178A HGH500020
PAD - HEADREST
With Provision For DVD Screen / From: AA000001 		- 2 Enquire
<61178B HGH500030
PAD - HEADREST
With Provision For DVD Screen / Insert / From: AA000001 		- 2 Enquire
<61350 LR016498
COVER - SEAT VALANCE
Arabica / RH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 LR016499
COVER - SEAT VALANCE
Ocean / RH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 LR016501
COVER - ACCESS HOLE
Arabica / LH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 LR016500
COVER - ACCESS HOLE
Ocean / LH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 FCL500062NUG
COVER - SEAT VALANCE
Ivory/Ocean / RH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 FCL500062PVJ
COVER - SEAT VALANCE
Ebony / Ivory Interior / RH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 FCL500072PVJ
COVER - SEAT VALANCE
Ebony / Ivory Interior / LH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 LR007906
COVER - SEAT VALANCE
Almond/Nutmeg / LH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 LR007905
COVER - SEAT VALANCE
Almond/Nutmeg / RH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<61350 FCL500072NUG
COVER - ACCESS HOLE
Ivory/Ocean / LH, Access Hole Cover, Valance / From: AA000001 		- 1 Enquire
<62186A LR015065
VALANCE - SEAT CUSHION
Arabica / RH Seat / From: AA000001 		- 1 Enquire
<62186A LR015067
VALANCE - SEAT CUSHION
Ocean / RH Seat / From: AA000001 		- 1 Enquire
<62186A LR015068
VALANCE - SEAT CUSHION
Ivory/Ocean / RH Seat / From: AA000001 		- 1 Enquire
<62186A LR013200
VALANCE - SEAT CUSHION
Ebony / Ivory Interior / RH Seat / From: AA000001 		- 1 Enquire
<62186A LR013201
VALANCE - SEAT CUSHION
Almond/Nutmeg / RH Seat / From: AA000001 		- 1 Enquire
<62186A LR015069
VALANCE - SEAT CUSHION
Arabica / LH Seat / From: AA000001 		- 1 Enquire
<62186A LR015070
VALANCE - SEAT CUSHION
Ocean / LH Seat / From: AA000001 		- 1 Enquire
<62186A LR015072
VALANCE - SEAT CUSHION
Ivory/Ocean / LH Seat / From: AA000001 		- 1 Enquire
<62186A LR013203
VALANCE - SEAT CUSHION
Ebony / Ivory Interior / LH Seat / From: AA000001 		- 1 Enquire
<62186A LR013204
VALANCE - SEAT CUSHION
Almond/Nutmeg / LH Seat / From: AA000001 		- 1 Enquire
<62186B LR009208
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior / LH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B HJE500100NUG
VALANCE - SEAT SIDE
Ivory/Ocean / RH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B HJE500110NUG
VALANCE - SEAT SIDE
Ivory/Ocean / LH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B LR009224
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior / RH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B LR016540
VALANCE - SEAT CUSHION
Arabica / RH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B LR016541
VALANCE - SEAT CUSHION
Ocean / RH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B LR016542
VALANCE - SEAT CUSHION
Arabica / LH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B LR016543
VALANCE - SEAT CUSHION
Ocean / LH Seat Inboard / From: AA000001 		- 1 Enquire
<62186B LR007934
VALANCE - SEAT CUSHION
Almond/Nutmeg / LH Seat / From: AA000001 		- 1 Enquire
<62186B LR007946
VALANCE - SEAT CUSHION
Almond/Nutmeg / RH Seat / From: AA000001 		- 1 Enquire
<62186C EBV500022PVJ
VALANCE - SEAT CUSHION
Int Ebony Carpet / Lower, RH Seat Outboard / From: AA000001 		- 1 Enquire
<62186C LR008680
VALANCE - SEAT CUSHION
Interior Nutmeg Carpet - LR / Lower, RH Seat Outboard / From: AA000001 		- 1 Enquire
<62186C EBV500032PVJ
VALANCE - SEAT CUSHION
Int Ebony Carpet / LH Seat Outboard, Lower / From: AA000001 		- 1 Enquire
<62186C LR016490
VALANCE - SEAT CUSHION
Interior Ocean Carpet / Lower, RH Seat Outboard / From: AA000001 		- 1 Enquire
<62186C LR016491
VALANCE - SEAT CUSHION
Interior Ocean Carpet / LH Seat Outboard, Lower / From: AA000001 		- 1 Enquire
<62186C LR008681
VALANCE - SEAT CUSHION
Interior Nutmeg Carpet - LR / LH Seat Outboard, Lower / From: AA000001 		- 1 Enquire
<62186D LR016889
VALANCE - SEAT SIDE
Arabica / From: AA000001 / To: AA219981 		- 2 Enquire
<62186D LR016890
VALANCE - SEAT SIDE
Ocean / From: AA000001 / To: AA224293 		- 2 Enquire
<62186D LR016891
VALANCE - SEAT SIDE
Ivory / From: AA000001 / To: AA218728 		- 2 Enquire
<62186D LR015515
VALANCE - SEAT CUSHION
Ebony Black/Ebony Black Interior / From: AA000001 / To: AA219265 		- 2 Enquire
<62186D LR016892
VALANCE - SEAT SIDE
Almond/Nutmeg / From: AA000001 / To: AA218728 		- 2 Enquire
<62186D LR019752
VALANCE - SEAT SIDE
Arabica / From: AA219982 		- 2 Enquire
<62186D LR019754
VALANCE - SEAT SIDE
Ocean / From: AA224294 		- 2 Enquire
<62186D LR019750
VALANCE - SEAT SIDE
Ivory/Ebony / From: AA218729 		- 2 Enquire
<62186D LR019751
VALANCE - SEAT CUSHION
Ebony / Ivory Interior / From: AA219266 		- 2 Enquire
<62186D LR019753
VALANCE - SEAT SIDE
Almond/Nutmeg / From: AA218729 		- 2 Enquire
<64810 LR015099
PAD - SEAT BACK
Articulated Drivers Seat Bolster, RHD, Windsor (M-L) / RH / From: AA000001 		- 1 Enquire
<64810 LR015101
PAD - SEAT BACK
(-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, LHD, Leather/Alcantara / RH / From: AA000001 		- 1 Enquire
<64810 LR015102
PAD - SEAT BACK
(+)"CDN/MEX/USA", Articulated Drivers Seat Bolster, LHD, Leather/Alcantara / RH / From: AA000001 		- 1 Enquire
<64810 LR015105
PAD - SEAT BACK
Articulated Drivers Seat Bolster, RHD, Windsor (M-L) / LH / From: AA000001 		- 1 Enquire
<64810 LR015108
PAD - SEAT BACK
(-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, LHD, Leather/Alcantara / LH / From: AA000001 		- 1 Enquire
<64810 LR015109
PAD - FRONT SEAT HEATING
(+)"CDN/MEX/USA", Articulated Drivers Seat Bolster, LHD, Leather/Alcantara / LH / From: AA000001 		- 1 Enquire
<64810 HGA500100
PAD - SEAT BACK
(-)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster, Taurus Leather/PVC (M-L) / RH / From: AA000001 		- 1 Enquire
<64810 HGA500110
PAD - SEAT BACK
(-)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster, Taurus Leather/PVC (M-L) / LH / From: AA000001 		- 1 Enquire
<64810 HGA500160
PAD - SEAT BACK
(+)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster, Taurus Leather/PVC (M-L) / RH / From: AA000001 		- 1 Enquire
<64810 HGA500170
PAD - SEAT BACK
(+)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster, Taurus Leather/PVC (M-L) / LH / From: AA000001 		- 1 Enquire
HB1 HYG500110
BOLT - SHOULDERED
M4 x 10MM / From: AA000001 		- 4 Enquire
HM1 LR039437
CABLE TIE
Cable Tie, RH Seat / From: DA801828 		- 1 Enquire
HN1 HYH000110
NUT - LOCKING
Lower Valance / From: AA000001 		- 4 Enquire
HS1 DA608044L
SCREW - SELF-TAPPING
Size 8 - Self Tapping / From: AA000001 		- 4 Enquire
HS2 HYG500070
SCREW
M4 x 10MM / From: AA000001 		- 2 Enquire
12K073 LR017308
SENSOR - BODY WEIGHT - AIRBAG
(-)"CDN/MEX/USA" / For Passenger Front Seat / From: AA000001 		- 1 Enquire
14D696A LR016247
ELEMENT
Taurus Leather/PVC (M-L), With Heated Seats - Front/Rear / From: AA000001 		- 2 Enquire
14D696A LR016248
ELEMENT
Windsor (M-L), With Heated Seats - Front/Rear / From: AA000001 		- 2 Enquire
14D696B LR016245
ELEMENT - HEATING
Taurus Leather/PVC (M-L), With Heated Seats - Front/Rear / From: AA000001 		- 2 Enquire
14D696B LR016246
ELEMENT - HEATING
Leather/Alcantara, With Heated Seats - Front/Rear, With Sports Base Bench Rear Seat / From: AA000001 		- 2 Enquire
