Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Front Brake Discs And Calipers (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

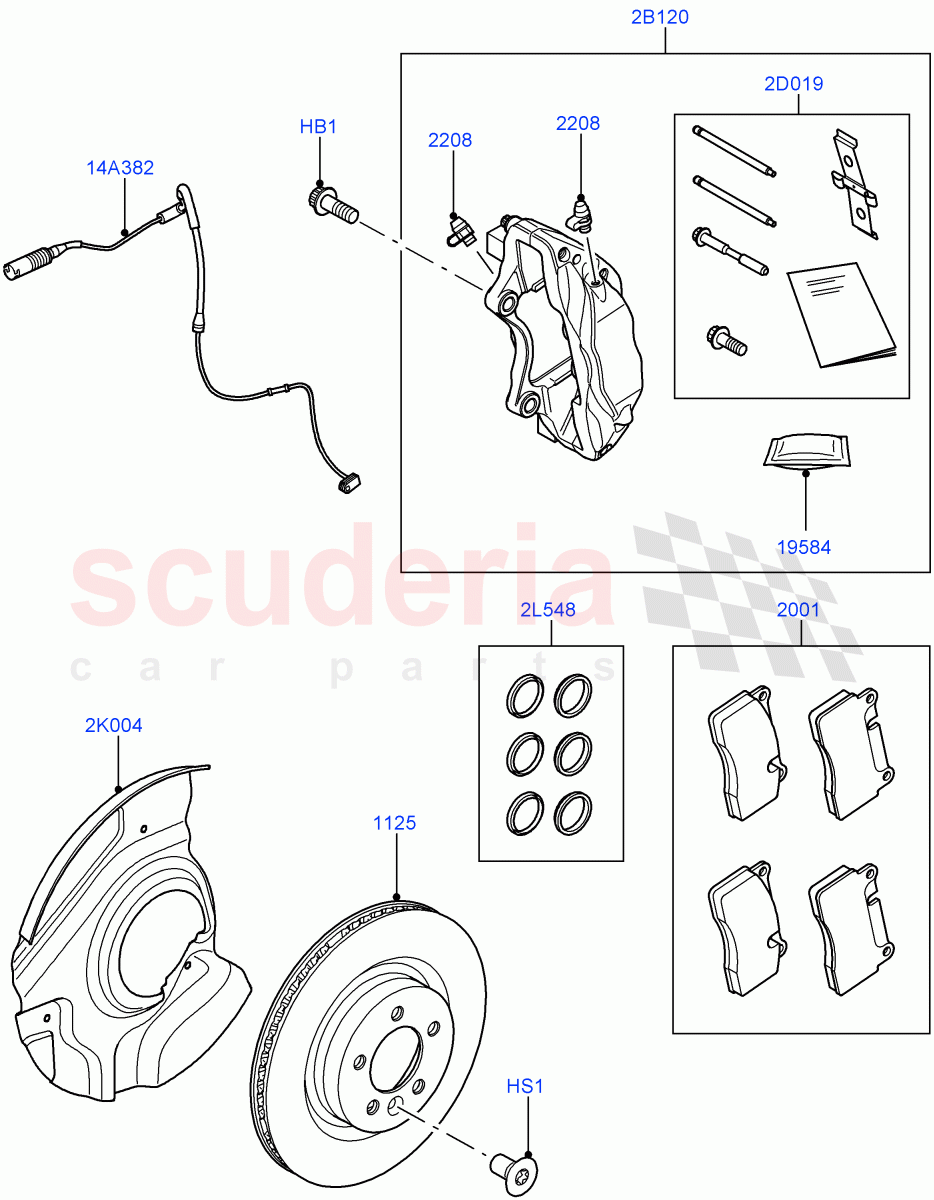

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYG500050	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP100241	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016176	DISC - BRAKE	Enquire	To Order
	LR027106	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016684	KIT - CALIPER BRAKE PAD	Enquire	To Order
	LR160069	KIT - CALIPER BRAKE PAD	Enquire	To Order
	LR064181	Kit - Caliper Brake Pad	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SEE500070	KIT - CAP AND MOUNTINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020972	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016659	CALIPER	Enquire	To Order
	LR016661	CALIPER	Enquire	To Order
	LR038154	CALIPER - BRAKE - LESS PADS	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016683	KIT - BRAKE CALIPER ATTACHMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013665	SHIELD - SPLASH	Enquire	To Order
	LR013666	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016685	KIT - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019401	WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SYG500050	BOLT	SYG500050 BOLT M16 X 1.5 X 45, To Caliper / From: AA000001	-	4	Enquire
HS1	SYP100241	SCREW	SYP100241 SCREW Disc - Brake, M10 X 1.5 / From: AA000001	-	2	Enquire
2B120	LR016659	CALIPER	LR016659 CALIPER RH, Brembo, Less Pads / From: AA000001 / To: AA244737	-	1	Enquire
2B120	LR016661	CALIPER	LR016661 CALIPER LH, Brembo, Less Pads / From: AA000001 / To: AA244737	-	1	Enquire
2B120	LR038154	CALIPER - BRAKE - LESS PADS	LR038154 CALIPER - BRAKE - LESS PADS Brake Calipers - Red / RH, Brembo, Less Pads / From: DA000001	-	1	Enquire
2B120	LR038155	CALIPER - BRAKE - LESS PADS	LR038155 CALIPER - BRAKE - LESS PADS Brake Calipers - Red / LH, Brembo, Less Pads / From: DA000001	-	1	Enquire
2B120	LR042746	CALIPER - BRAKE - LESS PADS	LR042746 CALIPER - BRAKE - LESS PADS RH, Brembo, Less Pads / From: AA244738 / To: CA999999	-	1	Enquire
2B120	LR042775	CALIPER - BRAKE - LESS PADS	LR042775 CALIPER - BRAKE - LESS PADS LH, Brembo, Less Pads / From: AA244738 / To: CA999999	-	1	Enquire
2B120	LR042746	CALIPER - BRAKE - LESS PADS	LR042746 CALIPER - BRAKE - LESS PADS Standard Duty FRT/RR Calp & Pads / RH, Brembo, Less Pads / From: DA000001	-	1	Enquire
2B120	LR042775	CALIPER - BRAKE - LESS PADS	LR042775 CALIPER - BRAKE - LESS PADS Standard Duty FRT/RR Calp & Pads / LH, Brembo, Less Pads / From: DA000001	-	1	Enquire
2D019	LR016683	KIT - BRAKE CALIPER ATTACHMENT	LR016683 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: AA000001	-	2	Enquire
2K004	LR013665	SHIELD - SPLASH	LR013665 SHIELD - SPLASH RH / From: AA000001	-	1	Enquire
2K004	LR013666	SHIELD - SPLASH	LR013666 SHIELD - SPLASH LH / From: AA000001	-	1	Enquire
2L548	LR016685	KIT - BOOT	LR016685 KIT - BOOT Brembo, Caliper Set, Dust Boots / From: AA000001	-	2	Enquire
14A382	LR019401	WIRING	LR019401 WIRING From: AA000001	-	1	Enquire
1125	LR016176	DISC - BRAKE	LR016176 DISC - BRAKE From: AA000001	-	2	Enquire
1125	LR027106	DISC - BRAKE	LR027106 DISC - BRAKE Before Ordering Please Refer To Technical Service Bulletin LTB00317, Before Ordering Please Refer To Technical Service Bulletin LTB00326 / From: AA215623	-	2	Enquire
2001	LR016684	KIT - CALIPER BRAKE PAD	LR016684 KIT - CALIPER BRAKE PAD Axle Set, Brembo / From: AA000001 / To: AA222235	-	1	Enquire
2001	LR160069	KIT - CALIPER BRAKE PAD	LR160069 KIT - CALIPER BRAKE PAD Axle Set, Brembo / From: AA222236 / To: DA811935	-	1	Enquire
2001	LR064181	Kit - Caliper Brake Pad	LR064181 Kit - Caliper Brake Pad (+)"USA", Axle Set, Brembo / From: DA811936	-	1	Enquire
2001	LR160069	KIT - CALIPER BRAKE PAD	LR160069 KIT - CALIPER BRAKE PAD (+) ROW, Axle Set, Brembo / From: DA811936	-	1	Enquire
2208	SEE500070	KIT - CAP AND MOUNTINGS	SEE500070 KIT - CAP AND MOUNTINGS From: AA000001	-	4	Enquire
19584	LR020972	GREASE - CHASSIS LUBRICATION	LR020972 GREASE - CHASSIS LUBRICATION From: AA000001	-	1	Enquire
