Fuses, Holders And Circuit Breakers (Passenger Compartment) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Fuses, Holders And Circuit Breakers (Passenger Compartment) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
YQQ500090 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
YQT500010 PLIERS - FUSE Enquire To Order
Photo Part No Description Price (each) Stock
YQF100490 FUSE Enquire To Order
YQF100510 FUSE Enquire To Order
YQF100520 FUSE Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR018339 BOX - FUSE Enquire To Order
LR018340 BOX - FUSE Enquire To Order
LR020133 JUNCTION BOX Enquire To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014414 BRACKET - FUSE BOX Enquire To Order
LR014415 BRACKET - FUSE BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR015544 BRACKET Enquire To Order
LR020128 BRACKET Enquire To Order
View All

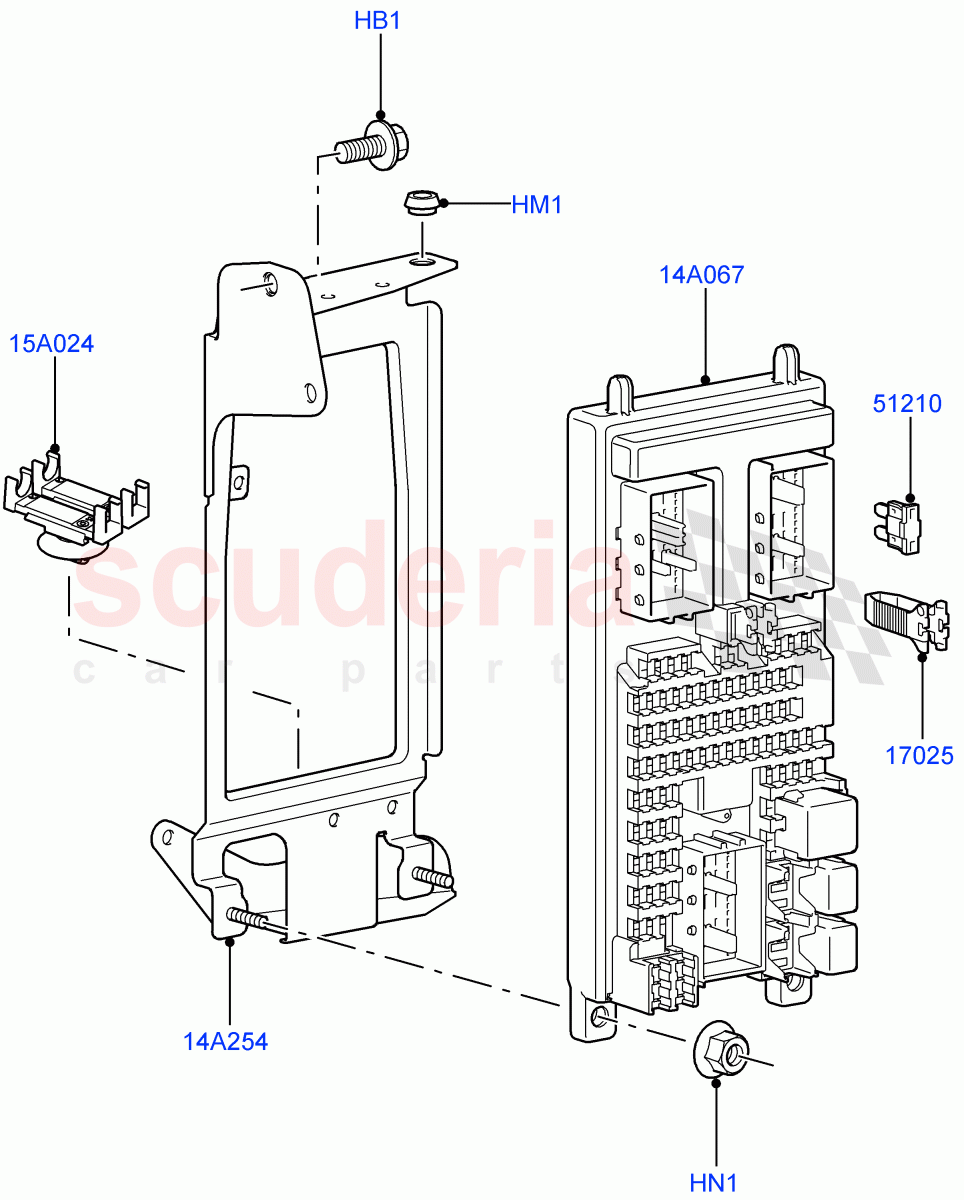

Fuses, Holders And Circuit Breakers (Passenger Compartment) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167
SCREW
M8 X 16MM / From: AA000001 		- 1 Enquire
HM1 YQQ500090
GROMMET
Grommet / From: AA000001 		- 1 Enquire
HN1 FN106042
NUT
Hexagonal Head, M6 / From: AA000001 		- 1 Enquire
14A067 LR018339
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: AA000001 / To: AA231150 		- 1 Enquire
14A067 LR018340
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: AA000001 / To: AA231150 		- 1 Enquire
14A067 LR020133
JUNCTION BOX
With Manual Tilt & Reach Adj Column / From: AA231151 / To: AA246811 		- 1 Enquire
14A067 LR020134
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: AA231151 / To: AA246811 		- 1 Enquire
14A067 LR023565
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: AA246812 / To: BA270820 		- 1 Enquire
14A067 LR027537
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: BA270821 / To: BA702226 		- 1 Enquire
14A067 LR023567
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: AA246812 / To: BA270820 		- 1 Enquire
14A067 LR027540
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: BA270821 / To: BA702226 		- 1 Enquire
14A067 LR029577
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: CA000001 / To: DA789670 		- 1 Enquire
14A067 LR029578
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: CA000001 / To: DA761206 		- 1 Enquire
14A067 LR032733
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: BA702227 / To: BA999999 		- 1 Enquire
14A067 LR023520
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: BA702227 / To: BA999999 		- 1 Enquire
14A067 LR043942
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: DA789671 / To: DA803151 		- 1 Enquire
14A067 LR043943
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: DA761207 / To: DA803151 		- 1 Enquire
14A067 LR053224
BOX - FUSE
With Manual Tilt & Reach Adj Column / From: DA803152 		- 1 Enquire
14A067 LR053223
BOX - FUSE
Elec. Tilt & Reach Adj Strng Colmn / From: DA803152 		- 1 Enquire
14A254 LR014414
BRACKET - FUSE BOX
LHD / From: AA000001 		- 1 Enquire
14A254 LR014415
BRACKET - FUSE BOX
RHD / From: AA000001 		- 1 Enquire
15A024 LR015544
BRACKET
Surround Camera System / From: AA000001 / To: AA236905 		- 1 Enquire
15A024 LR020128
BRACKET
Surround Camera System / From: AA236906 		- 1 Enquire
17025 YQT500010
PLIERS - FUSE
From: AA000001 		- 1 Enquire
51210 YQF100490
FUSE
Mini 5 Amp, Tan Minifuse / From: AA000001 / To: AA262641 		- 1 Enquire
51210 YQF100510
FUSE
MINI 10 AMP, Red Minifuse / From: AA000001 / To: AA262641 		- 1 Enquire
51210 YQF100520
FUSE
Blue Minifuse, MINI 15 AMP / From: AA000001 / To: AA262641 		- 1 Enquire
51210 YQF100530
FUSE
20 AMP, Yellow Minifuse / From: AA000001 / To: AA262641 		- 1 Enquire
51210 YQF100540
FUSE
25 AMP, Natural Minifuse / From: AA000001 / To: AA262641 		- 1 Enquire
51210 YQF100550
FUSE
Green Minifuse, MINI 30 AMP / From: AA000001 / To: AA262641 		- 1 Enquire
