Gear Change-Automatic Transmission (Floor) (3.0 V6 Diesel, 6 Speed Auto Transmission ZF 6HP28, 5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Gear Change-Automatic Transmission (Floor) (3.0 V6 Diesel, 6 Speed Auto Transmission ZF 6HP28, 5.0L...

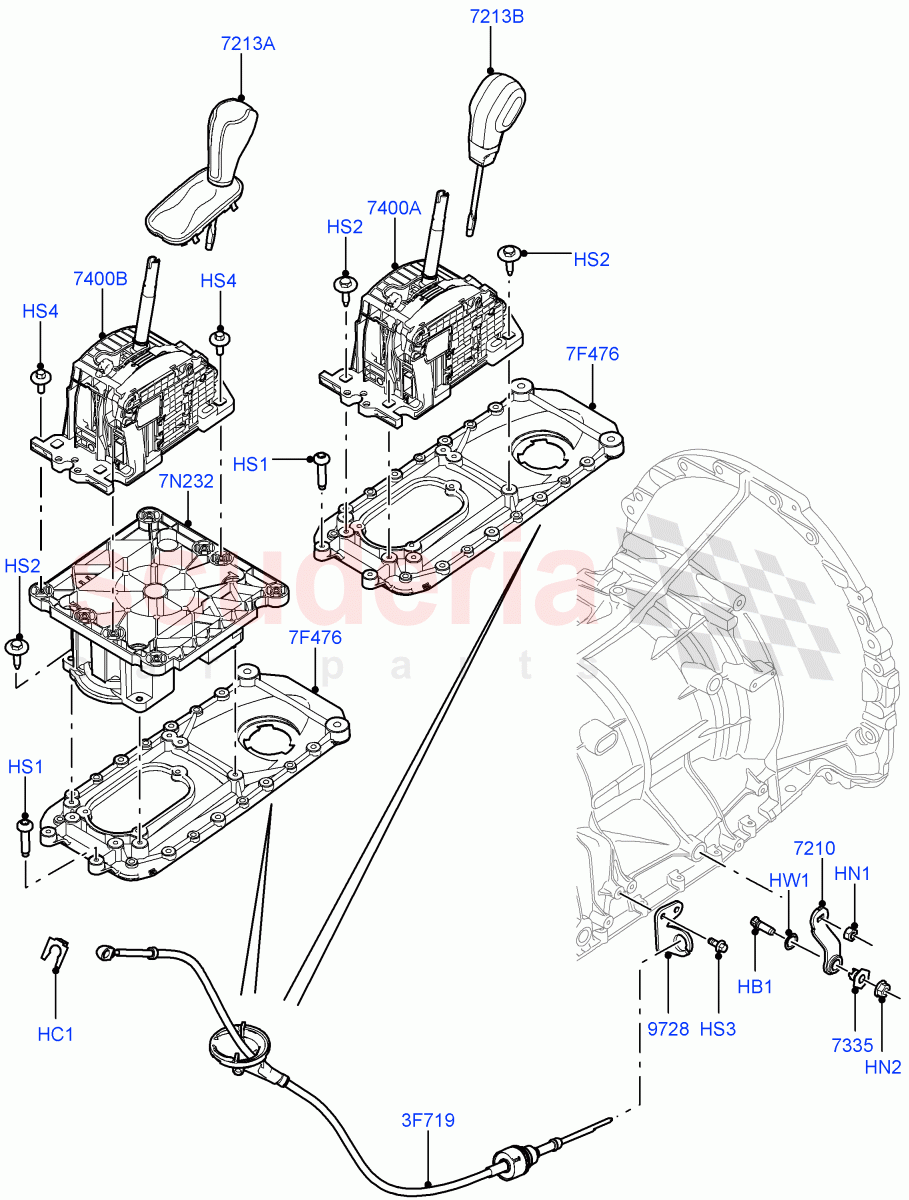

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYG000050	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYC500030	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500020	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP106690L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYF000060	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012704	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZT500040	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCU500011	BRACKET	Enquire	To Order
	UCU500070	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCV500070	CABLE - SELECTOR LEVER CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018050	KNOB - GEAR CHANGE LEVER	Enquire	To Order
	LR019175	KNOB - GEAR CHANGE LEVER	Enquire	To Order
	LR019176	KNOB - GEAR CHANGE LEVER	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016306	LEVER - GEAR SHIFT	Enquire	To Order
	LR021517	LEVER - GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCC500081	COVER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UFN500021	PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	TYG000050	BOLT	TYG000050 BOLT M8 X 22MM / From: AA000001	-	1	Enquire
HC1	UYC500030	CLIP	UYC500030 CLIP Attaches Selector Cable / From: AA000001	-	1	Enquire
HN1	VYH500020	NUT - HEX.	VYH500020 NUT - HEX. M8 x 1.0MM / From: AA000001	-	1	Enquire
HN2	FN108046	NUT - HEX.	FN108046 NUT - HEX. HEX Flange, Hexagonal Head, M8 / From: AA000001	-	1	Enquire
HS1	UYP500030	SCREW	UYP500030 SCREW M6 x 25MM, Torx / From: AA000001	-	8	Enquire
HS2	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer / From: AA000001	-	4	Enquire
HS3	FS106166	SCREW	FS106166 SCREW HEX Flange, Hexagonal Head, M6 X 16MM / From: AA000001	-	2	Enquire
HS4	DYP106690L	SCREW	DYP106690L SCREW M6 X 20MM / From: AA000001	-	4	Enquire
HW1	TYF000060	WASHER - SPRING	TYF000060 WASHER - SPRING 8MM, WASHERS / From: AA000001	-	1	Enquire
3F719	UCV500070	CABLE - SELECTOR LEVER CONTROL	UCV500070 CABLE - SELECTOR LEVER CONTROL From: AA000001	-	1	Enquire
7F476	UCC500081	COVER PLATE	UCC500081 COVER PLATE From: AA000001	-	1	Enquire
7N232	UFN500021	PLATE	UFN500021 PLATE From: AA000001	-	1	Enquire
7210	LR012704	LEVER	LR012704 LEVER From: AA000001	-	1	Enquire
7213A	LR018050	KNOB - GEAR CHANGE LEVER	LR018050 KNOB - GEAR CHANGE LEVER Ebony Black / From: AA000001 / To: CA754348	-	1	Enquire
7213A	LR019175	KNOB - GEAR CHANGE LEVER	LR019175 KNOB - GEAR CHANGE LEVER Ivory/Ocean / From: AA000001 / To: CA999999	-	1	Enquire
7213A	LR019176	KNOB - GEAR CHANGE LEVER	LR019176 KNOB - GEAR CHANGE LEVER Ivory/Ebony / From: AA000001 / To: DA774189	-	1	Enquire
7213A	LR019177	KNOB - GEAR CHANGE LEVER	LR019177 KNOB - GEAR CHANGE LEVER Ebony/Tan / From: AA000001 / To: DA774189	-	1	Enquire
7213A	LR019174	KNOB - GEAR CHANGE LEVER	LR019174 KNOB - GEAR CHANGE LEVER Arabica/Almond / From: AA000001 / To: DA774189	-	1	Enquire
7213A	LR019176	KNOB - GEAR CHANGE LEVER	LR019176 KNOB - GEAR CHANGE LEVER Ebony Black/Ebony Black Interior, Inter Badging Headrest - Sport / From: DA000001 / To: DA774189	-	1	Enquire
7213A	LR019173	KNOB - GEAR CHANGE LEVER	LR019173 KNOB - GEAR CHANGE LEVER Ebony/Pimento Red, Int Bdg Hdrest-Embsd Autobiog / From: AA000001 / To: DA774189	-	1	Enquire
7213A	LR039941	KNOB - GEAR CHANGE LEVER	LR039941 KNOB - GEAR CHANGE LEVER Ebony Black / From: CA754349	-	1	Enquire
7213A	LR044362	KNOB - GEAR CHANGE LEVER	LR044362 KNOB - GEAR CHANGE LEVER Ebony/Pimento Red, Int Bdg Hdrest-Embsd Autobiog / From: DA774190	-	1	Enquire
7213A	LR044365	KNOB - GEAR CHANGE LEVER	LR044365 KNOB - GEAR CHANGE LEVER Arabica/Almond / From: DA774190	-	1	Enquire
7213A	LR044369	KNOB - GEAR CHANGE LEVER	LR044369 KNOB - GEAR CHANGE LEVER Ebony/Tan / From: DA774190	-	1	Enquire
7213A	LR044368	KNOB - GEAR CHANGE LEVER	LR044368 KNOB - GEAR CHANGE LEVER Ebony/Pimento Red, Inter Badging Headrest - Sport / From: DA774190	-	1	Enquire
7335	TZT500040	BUSH	TZT500040 BUSH From: AA000001	-	1	Enquire
7400B	LR016306	LEVER - GEAR SHIFT	LR016306 LEVER - GEAR SHIFT From: AA000001 / To: AA235074	-	1	Enquire
7400B	LR021517	LEVER - GEAR SHIFT	LR021517 LEVER - GEAR SHIFT Includes Cable UCV500070 / From: AA235075	-	1	Enquire
9728	UCU500011	BRACKET	UCU500011 BRACKET 5.0L OHC SGDI SC V8 Petrol - AJ133 / From: AA000001	-	1	Enquire
9728	UCU500070	BRACKET	UCU500070 BRACKET 3.0L 24V DOHC V6 TC Diesel / From: AA000001	-	1	Enquire
