Turbocharger (Lh) (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000628 BOLT $4.40 To Order
Photo Part No Description Price (each) Stock
LR000631 BOLT - HEX.HEAD $2.51 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.08 IN STOCK
Photo Part No Description Price (each) Stock
4408651 SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
6988544 SCREW - PAN HEAD $0.73 To Order
Photo Part No Description Price (each) Stock
1255708 SCREW $8.94 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.25 To Order
Photo Part No Description Price (each) Stock
LR003679 GASKET - EXHAUST MANIFOLD $19.72 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $12.80 To Order
Photo Part No Description Price (each) Stock
LR003784 HOSE - CONNECTING $223.79 To Order
Photo Part No Description Price (each) Stock
LR006636 PIPE - OIL FEED $216.66 To Order
Photo Part No Description Price (each) Stock
LR004038 TURBOCHARGER $2,756.02 To Order
LR008827 TURBOCHARGER $2,494.07 To Order
LR021044 TURBOCHARGER $2,936.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003787 GASKET $7.79 To Order
Photo Part No Description Price (each) Stock
LR004042 BRACKET $304.00 To Order
Photo Part No Description Price (each) Stock
LR023088 ACTUATOR $99.86 To Order
View All

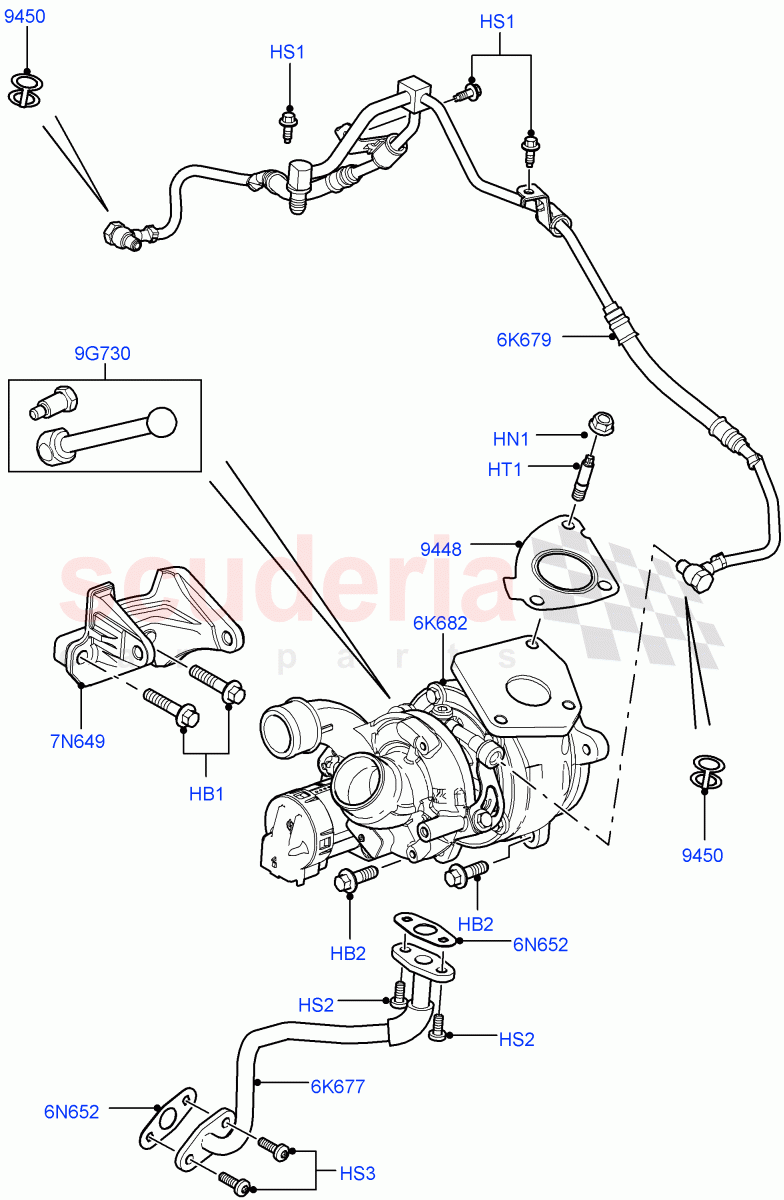

Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000628
BOLT
Hexagonal Head, M8 x 40MM / From: AA000001 		$4.40 2
HB2 LR000631
BOLT - HEX.HEAD
M8 1.25 X 25 / From: AA000001 		$2.51 2
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: AA000001
IN STOCK 		$2.08 3
HS1 4408651
SCREW
M6 X 14MM / From: AA000001 		$1.22 3
HS2 6988544
SCREW - PAN HEAD
M6 x 14MM / From: AA000001 		$0.73 2
HS3 1255708
SCREW
M6 X 20MM / From: AA000001 		$8.94 2
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM / From: AA000001 		$4.25 3
6K677 LR003784
HOSE - CONNECTING
From: AA000001 		$223.79 1
6K679 LR006636
PIPE - OIL FEED
From: AA000001 		$216.66 1
6K682 LR004038
TURBOCHARGER
LH, New Part-Please Check For Reman Version / From: AA000001 / To: AA240815 		$2,756.02 1
6K682 LR008827
TURBOCHARGER
LH, Remanufactured Part / From: AA000001 / To: AA240815 		$2,494.07 1
6K682 LR021044
TURBOCHARGER
LH, New Part-Please Check For Reman Version / From: AA240816 		$2,936.87 1
6K682 LR021654
TURBOCHARGER
LH, Remanufactured Part / From: AA240816 		$1,979.22 1
6N652 LR003787
GASKET
From: AA000001 		$7.79 2
7N649 LR004042
BRACKET
From: AA000001 		$304.00 1
9G730 LR023088
ACTUATOR
LH, Incl. pin, Includes Rod, Service Kit / From: AA000001 / To: AA229558 		$99.86 1
9448 LR003679
GASKET - EXHAUST MANIFOLD
From: AA000001 		$19.72 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer / From: AA000001 		$12.80 2
