Exhaust System (3.6L V8 32V Dohc Efi Diesel Lion, Stage Iv + Dpf Emissions) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion, Stage IV + DPF Emissions) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500100 BOLT $2.01 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.50 IN STOCK
Photo Part No Description Price (each) Stock
YYC500240 CLAMP - HOSE $1.99 To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $7.66 IN STOCK
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.85 To Order
Photo Part No Description Price (each) Stock
LR007503 SILENCER $800.92 To Order
Photo Part No Description Price (each) Stock
LR016221 SILENCER $306.89 To Order
LR019723 SILENCER $313.02 To Order
Photo Part No Description Price (each) Stock
LR016222 SILENCER $356.29 To Order
LR019724 SILENCER $338.03 To Order
Photo Part No Description Price (each) Stock
LR014310 SENSOR - EXHAUST GAS PRESSURE $199.48 To Order
Photo Part No Description Price (each) Stock
LR009448 FILTER - DIESEL PARTICLE $3,479.18 To Order
Photo Part No Description Price (each) Stock
LR019121 FINISHER - EXHAUST $455.68 To Order
LR019122 FINISHER - EXHAUST $455.68 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.76 IN STOCK
Photo Part No Description Price (each) Stock
YQU500610 BRACKET - 3-WAY CONNECTOR $30.92 To Order
Photo Part No Description Price (each) Stock
LR015372 CLAMP - EXHAUST $79.69 To Order
Photo Part No Description Price (each) Stock
LR015370 CLAMP $101.10 To Order
Photo Part No Description Price (each) Stock
LR009430 CLAMP $37.24 To Order
Photo Part No Description Price (each) Stock
WCM500130 GASKET - CATALYST $4.71 To Order
Photo Part No Description Price (each) Stock
WCM500080 GASKET - EXHAUST PIPE $15.49 To Order
Photo Part No Description Price (each) Stock
LR019833 CATALYTIC CONVERTER $2,351.07 To Order
Photo Part No Description Price (each) Stock
WCD502190 CATALYTIC CONVERTER $2,096.86 To Order
Photo Part No Description Price (each) Stock
LR016224 CATALYTIC CONVERTER $160.77 To Order
Photo Part No Description Price (each) Stock
LR016225 Catalytic Converter Enquire To Order
Photo Part No Description Price (each) Stock
DBP7104 MOUNTING - RUBBER $8.12 To Order
Photo Part No Description Price (each) Stock
LR014155 INSULATOR - RUBBER $36.35 To Order
Photo Part No Description Price (each) Stock
WCS500030 INSULATOR - RUBBER $26.72 To Order
Photo Part No Description Price (each) Stock
WDN500130 SENSOR - EXHAUST GAS - TEMPERATURE $120.67 To Order
Photo Part No Description Price (each) Stock
WDN500070 SENSOR - EXHAUST GAS - TEMPERATURE $160.14 To Order
Photo Part No Description Price (each) Stock
WDN500050 SENSOR - EXHAUST GAS - TEMPERATURE $121.06 To Order
View All

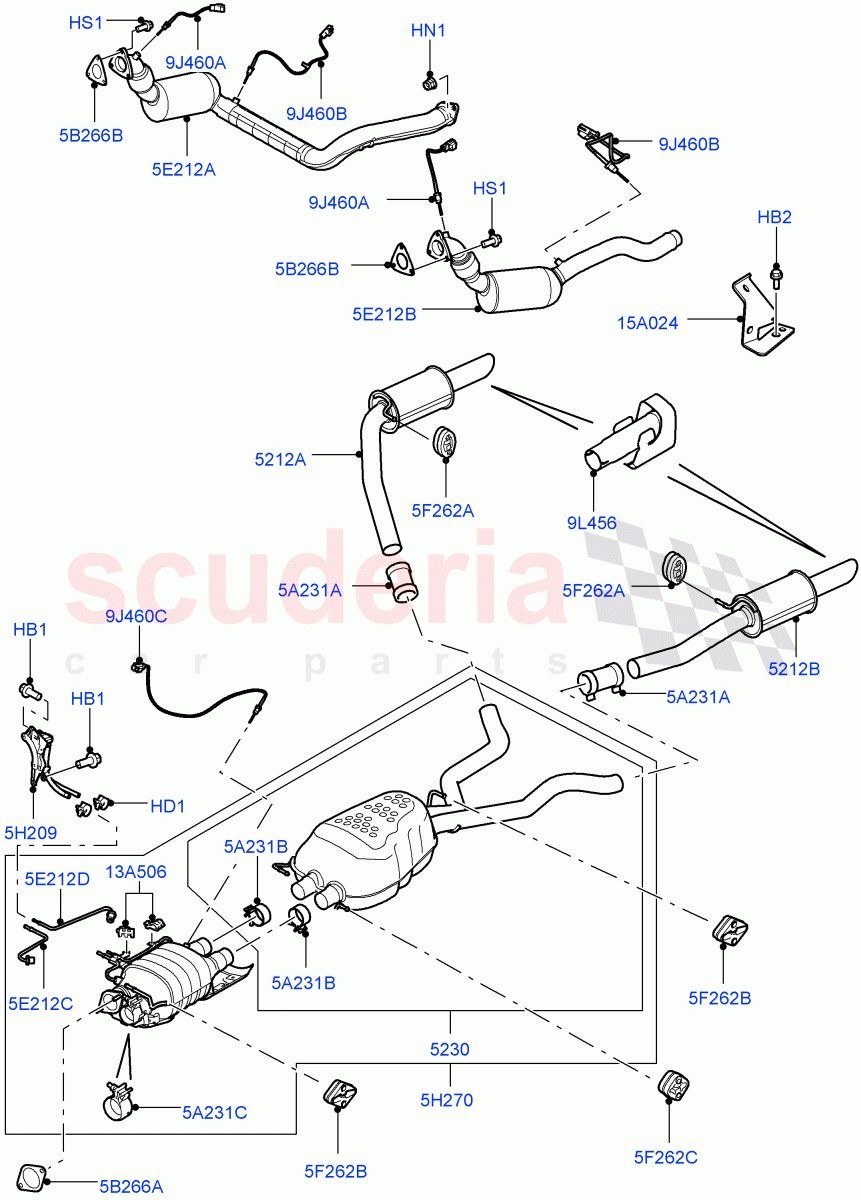

Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion, Stage IV + DPF Emissions) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 YYP500100
BOLT
M8 X 16MM / From: AA000001 		$2.01 2
HB2 FS106126
BOLT
Bracket, Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.50 2
HD1 YYC500240
CLAMP - HOSE
Exhaust Gas Pressure / From: AA000001 		$1.99 2
HN1 LR025680
M10 FLANGED HEX NUT
M10 / From: AA000001
IN STOCK 		$7.66 2
HS1 WYP000025
SCREW
Front, Hexagonal Head, M8 X 20MM / From: AA000001 		$2.85 6
5A231A LR015372
CLAMP - EXHAUST
60MM, Rear / From: AA000001 / To: DA770940 		$79.69 2
5A231B LR015370
CLAMP
55MM / From: AA000001 		$101.10 2
5A231C LR009430
CLAMP
55MM, Front / From: AA000001 		$37.24 1
5B266A WCM500130
GASKET - CATALYST
Catalyst, Centre / From: AA000001 		$4.71 1
5B266B WCM500080
GASKET - EXHAUST PIPE
Exhaust pipe / From: AA000001 		$15.49 2
5E212A LR019833
CATALYTIC CONVERTER
RH / From: AA000001 		$2,351.07 1
5E212B WCD502190
CATALYTIC CONVERTER
LH / From: AA000001 		$2,096.86 1
5E212C LR016224
CATALYTIC CONVERTER
Inlet Pipe, Short / From: AA000001 		$160.77 1
5E212D LR016225
Catalytic Converter
Long, Outlet, Pipe / From: AA000001 		- 1 Enquire
5F262A DBP7104
MOUNTING - RUBBER
Rear / From: AA000001 		$8.12 2
5F262B LR014155
INSULATOR - RUBBER
From: AA000001 		$36.35 2
5F262C WCS500030
INSULATOR - RUBBER
Centre / From: AA000001 		$26.72 2
5H209 LR014310
SENSOR - EXHAUST GAS PRESSURE
From: AA000001 / To: DA999999 		$199.48 1
5H270 LR009448
FILTER - DIESEL PARTICLE
Includes Heat Shield / From: AA000001 		$3,479.18 1
9J460A WDN500130
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature, Upper / From: AA000001 		$120.67 2
9J460B WDN500070
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature, Lower / From: AA000001 		$160.14 1
9J460C WDN500050
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature, Rear / From: AA000001 		$121.06 1
9L456 LR019121
FINISHER - EXHAUST
With Body Kit Diesel / RH, Rear / From: AA000001 / To: BA270632 		$455.68 1
9L456 LR019122
FINISHER - EXHAUST
With Body Kit Diesel / LH, Rear / From: AA000001 / To: BA270632 		$455.68 1
13A506 YQR000050
CLIP - WIRING
From: AA000001
IN STOCK 		$0.76 2
15A024 YQU500610
BRACKET - 3-WAY CONNECTOR
From: AA000001 		$30.92 1
5212A LR016221
SILENCER
Less Body Kit / RH, Rear / From: AA000001 		$306.89 1
5212A LR019723
SILENCER
With Body Kit Diesel / RH, Rear / From: AA000001 		$313.02 1
5212B LR016222
SILENCER
Less Body Kit / LH, Rear / From: AA000001 		$356.29 1
5212B LR019724
SILENCER
With Body Kit Diesel / LH, Rear / From: AA000001 		$338.03 1
5230 LR007503
SILENCER
Exhaust Clamps Included, Intermediate / From: AA000001 		$800.92 1
