Vacuum Control And Air Injection (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Vacuum Control And Air Injection (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1372612 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FN108042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
1331241 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR001852 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR004014 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR016308 HOSE - VACUUM Enquire To Order
LR018330 HOSE - VACUUM Enquire To Order
View All

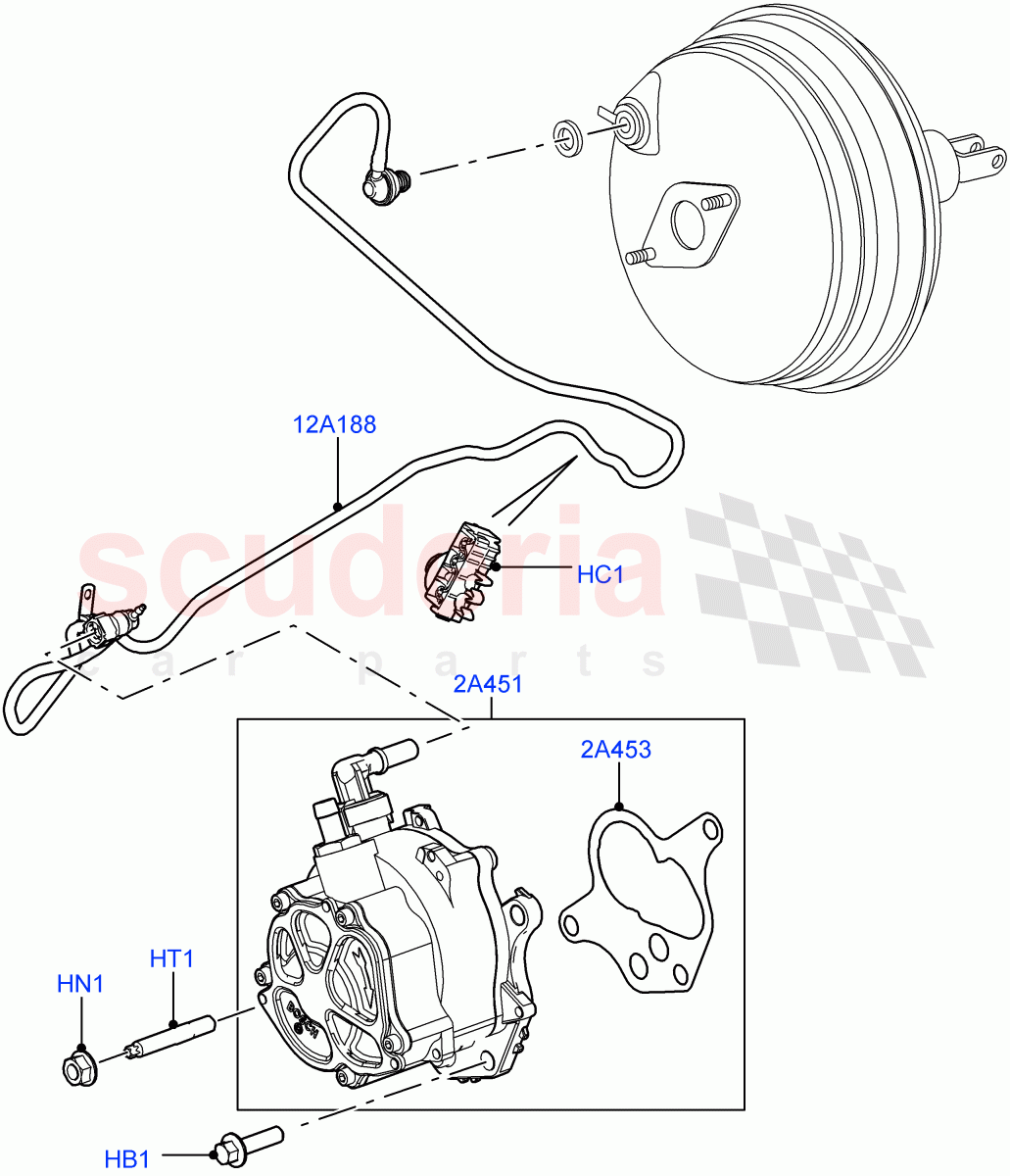

Vacuum Control And Air Injection (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1372612
SCREW
M8 x 30MM / From: AA000001 		- 2 Enquire
HN1 FN108042
NUT
M8 / From: AA000001 		- 1 Enquire
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: AA000001 		- 1 Enquire
2A451 LR001852
PUMP - VACUUM
From: AA000001 		- 1 Enquire
2A453 LR004014
GASKET
From: AA000001 		- 1 Enquire
12A188 LR016308
HOSE - VACUUM
RHD / Pump To Booster / From: AA000001 		- 1 Enquire
12A188 LR018330
HOSE - VACUUM
LHD / Pump To Booster / From: AA000001 		- 1 Enquire
