Transfer Drive Components (6 Speed Auto ZF 6HP26 Steptronic, 6 Speed Man ZF S6-53, 8 Speed Auto Trans ZF 8HP70 4WD, 6 Speed Auto Transmission ZF 6HP28) ((V) FROMAA000001, (V) TODA999999) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Transfer Drive Components (6 Speed Auto ZF 6HP26 Steptronic, 6 Speed Man ZF S6-53, 8 Speed Auto...

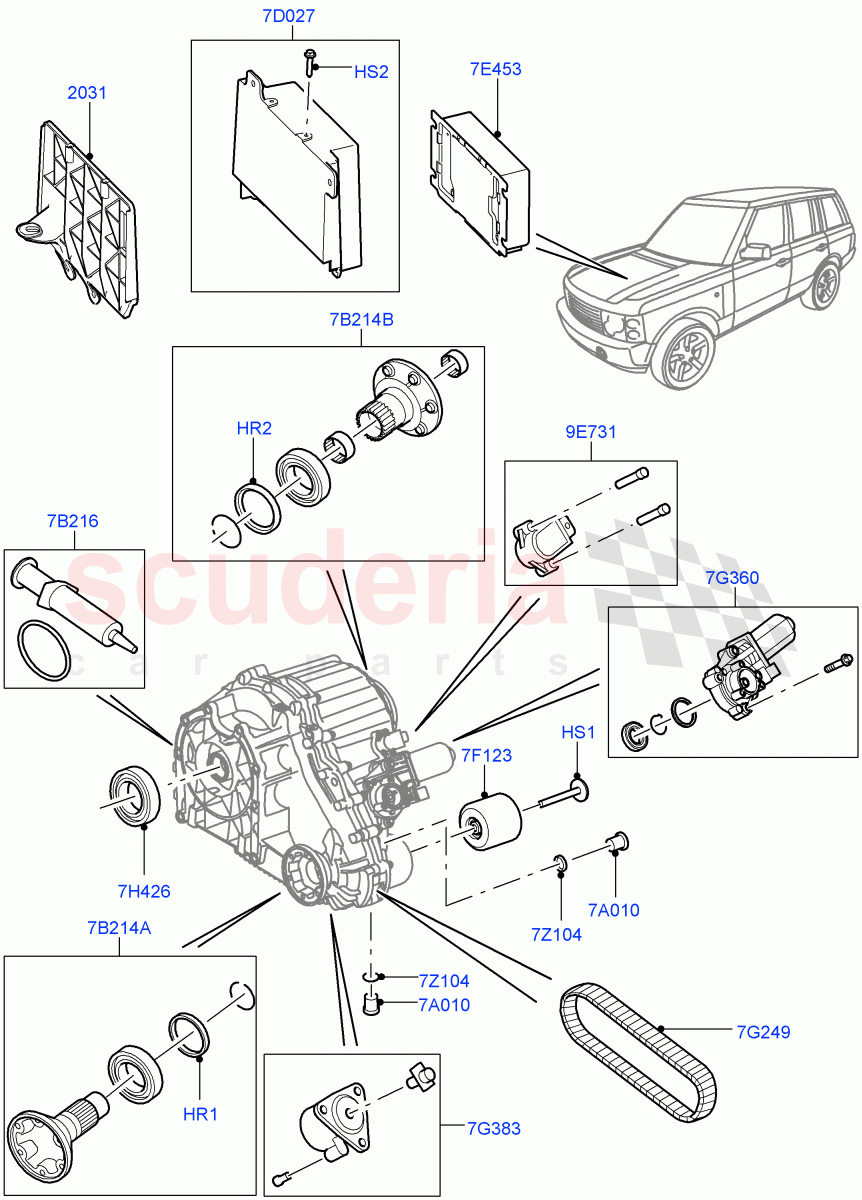

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	IZB500040	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500050	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYP500080	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011888	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037019	BRACKET - ELECTRICAL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYB500020	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011132	COVER - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022936	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order
	LR022936	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IAI500100	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044897	CHAIN - TRANSFER DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGH500040	MOTOR - TRANSFER CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500030	SEAL - TRANSFER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYF500030	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IAB500191	SENSOR - TRIPMINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	Enquire	To Order
	LR086059	FLANGE - PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IEA500041	FLANGE	Enquire	To Order
	LR039528	KIT - TRANSFER BOX FLANGE	Enquire	To Order
	LR086048	FLANGE - COUPLING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	IZB500040	RING - SEALING	IZB500040 RING - SEALING Front Output, Seal / From: AA000001	-	1	Enquire
HR2	IZB500050	RING - SEALING	IZB500050 RING - SEALING Rear Output, Seal / From: AA000001	-	1	Enquire
HS1	IYP500080	SCREW	IYP500080 SCREW 3.6L V8 32V DOHC EFi Diesel Lion / Bolt And Washer, HEX Flange, M10 X 80MM / From: AA000001 / To: AA999999	-	1	Enquire
HS2	LR011888	SCREW	LR011888 SCREW 4 x 20MM / From: AA000001	-	2	Enquire
7A010	IYB500020	PLUG - OIL DRAIN	IYB500020 PLUG - OIL DRAIN Filler Plug, M16, Plug - Oil Drain / From: AA000001	-	2	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: AA000001 / To: CA999999	-	1	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: DA000001	-	1	Enquire
7B214B	IEA500041	FLANGE	IEA500041 FLANGE Propshaft, Rear / From: AA000001 / To: BA999999	-	1	Enquire
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear / From: CA649539	-	1	Enquire
7B214B	LR086048	FLANGE - COUPLING	LR086048 FLANGE - COUPLING Propshaft, Rear / From: CA000001 / To: CA649538	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Input Shaft, Kit / From: AA000001	-	1	Enquire
7D027	LR011132	COVER - MODULE	LR011132 COVER - MODULE Module - Transfer Case Shift Control / From: AA000001	-	1	Enquire
7E453	LR022936	MODULE - TRANSFER SHIFT CONTROL	LR022936 MODULE - TRANSFER SHIFT CONTROL From: AA000001 / To: AA262641	-	1	Enquire
7E453	LR022936	MODULE - TRANSFER SHIFT CONTROL	LR022936 MODULE - TRANSFER SHIFT CONTROL From: BA262642	-	1	Enquire
7F123	IAI500100	DAMPER - VIBRATION	IAI500100 DAMPER - VIBRATION 3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 / To: AA999999	-	1	Enquire
7G249	LR044897	CHAIN - TRANSFER DRIVE	LR044897 CHAIN - TRANSFER DRIVE For Vehicles With Transfer Case Unit Serial Number A0711997 To A0936980, Please Refer To Technical Service Bulletin LTB00498 / From: BA288059 / To: DA784343	-	1	Enquire
7G360	IGH500040	MOTOR - TRANSFER CASE	IGH500040 MOTOR - TRANSFER CASE Transfer Case Shifter / From: AA000001	-	1	Enquire
7G383	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL Transfer Box / From: AA000001	-	1	Enquire
7H426	IZB500030	SEAL - TRANSFER BOX	IZB500030 SEAL - TRANSFER BOX Input Shaft / From: AA000001	-	1	Enquire
7Z104	IYF500030	WASHER	IYF500030 WASHER M16, Plug - Oil Drain / From: AA000001	-	2	Enquire
9E731	IAB500191	SENSOR - TRIPMINDER	IAB500191 SENSOR - TRIPMINDER High/Low Position Sensor / From: AA000001	-	1	Enquire
2031	LR037019	BRACKET - ELECTRICAL UNIT	LR037019 BRACKET - ELECTRICAL UNIT Module - Transfer Case Shift Control / From: AA000001	-	1	Enquire
