Airbag System (Sensors) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Airbag System (Sensors) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500140 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
DYA000040 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
LR016626 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR016812 MONITOR - AIRBAG DIAGNOSTIC MODULE Enquire To Order
LR038452 MONITOR - AIRBAG DIAGNOSTIC MODULE Enquire To Order
Photo Part No Description Price (each) Stock
YWJ500370 SENSOR - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
YWJ500380 KIT - AIR BAG SENSOR & BRACKET Enquire To Order
View All

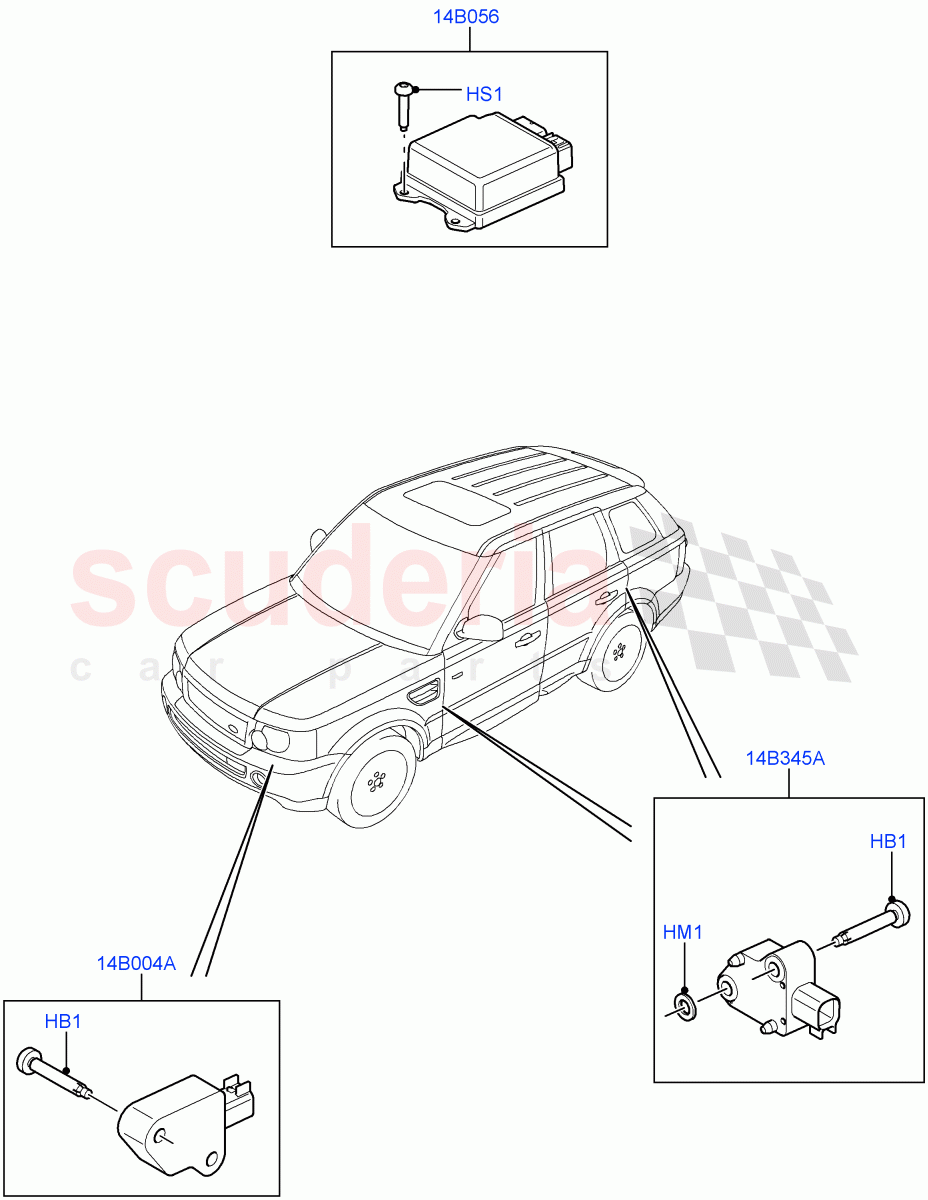

Airbag System (Sensors) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 YYP500140
BOLT
M6 x 35MM, Torx / From: AA000001 		- 16 Enquire
HM1 DYA000040
GROMMET
16.5MM, Grommet / From: AA000001 		- 2 Enquire
HS1 LR016626
SCREW
M6 X 21MM, Torx / From: AA000001 		- 3 Enquire
14B004A YWJ500370
SENSOR - AIR BAG
color code Black, Front, Kit Includes Fitting Parts, Mounted To Front End Carrier Assy Bracket / From: AA000001 		- 2 Enquire
14B056 LR016812
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: AA000001 / To: DA778177 		- 1 Enquire
14B056 LR038452
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: DA778178 		- 1 Enquire
14B345A YWJ500380
KIT - AIR BAG SENSOR & BRACKET
Kit Includes Fitting Parts, Red / Brown, Side / From: AA000001 		- 6 Enquire
