Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Air Conditioning System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106066 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
JYP500110 SCREW $1.08 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
JQY000011 SEAL - COVER $13.12 To Order
Photo Part No Description Price (each) Stock
LR010849 BRACKET $7.67 To Order
Photo Part No Description Price (each) Stock
LR016268 TUBE $110.23 To Order
Photo Part No Description Price (each) Stock
LR016270 TUBE $203.84 To Order
LR019678 TUBE $203.84 To Order
Photo Part No Description Price (each) Stock
LR016269 TUBE $214.81 To Order
Photo Part No Description Price (each) Stock
LR019467 TUBE $53.22 To Order
Photo Part No Description Price (each) Stock
LR013851 CLIP $84.24 To Order
Photo Part No Description Price (each) Stock
JTE000010 SWITCH $97.68 To Order
Photo Part No Description Price (each) Stock
LR023245 CAP $22.50 To Order
Photo Part No Description Price (each) Stock
LR023246 CAP $22.50 To Order
Photo Part No Description Price (each) Stock
JUU500020 O-RING $8.83 To Order
LR031797 O-RING $8.14 To Order
Photo Part No Description Price (each) Stock
JUU500040 O-RING $4.75 To Order
LR031798 O-RING $8.04 To Order
Photo Part No Description Price (each) Stock
JUU500030 O-RING $9.45 To Order
LR092609 RING - SEALING $18.92 To Order
Photo Part No Description Price (each) Stock
JUU500010 O-RING $9.45 To Order
View All

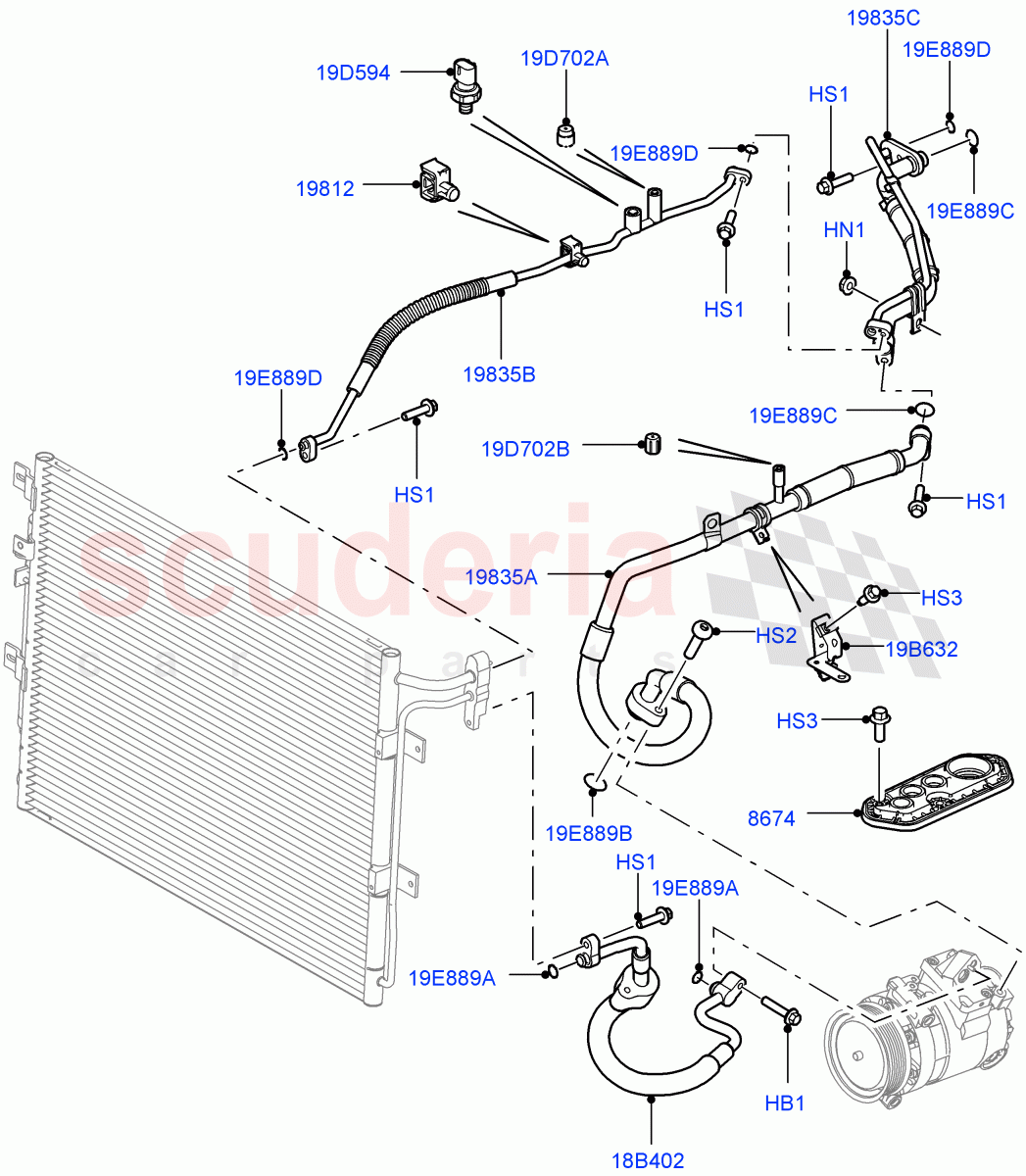

Air Conditioning System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106066
BOLT
M6 x 30MM / From: AA000001
IN STOCK 		$0.63 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.45 1
HS1 FS106256
SCREW
M6 x 25MM / From: AA000001 		$0.42 5
HS2 JYP500110
SCREW
M8 x 30MM / From: AA000001 		$1.08 1
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001
IN STOCK 		$1.19 4
18B402 LR016268
TUBE
Compressor To Condenser, Includes O-Ring / From: AA000001 		$110.23 1
19B632 LR013851
CLIP
From: AA000001 		$84.24 1
19D594 JTE000010
SWITCH
Pressure / From: AA000001 		$97.68 1
19D702A LR023245
CAP
From: AA000001 		$22.50 1
19D702B LR023246
CAP
From: AA000001 		$22.50 1
19E889A JUU500020
O-RING
From: AA000001 / To: BA701796 		$8.83 2
19E889A LR031797
O-RING
10.6 x 2.4MM / From: BA701797 		$8.14 2
19E889B JUU500040
O-RING
From: AA000001 / To: AA218010 		$4.75 1
19E889B LR031798
O-RING 		$8.04 1
19E889C JUU500030
O-RING
From: AA000001 / To: BA999999 		$9.45 2
19E889C LR092609
RING - SEALING
13.6 x 2.4mm / From: CA000001 		$18.92 1
19E889D JUU500010
O-RING
From: AA000001 		$9.45 3
8674 JQY000011
SEAL - COVER
ATC Air Conditioning / From: AA000001 		$13.12 1
19812 LR010849
BRACKET
From: AA000001 		$7.67 1
19835A LR016270
TUBE
Air Conditioning Evaporator To Compressor, Includes O-Ring / From: AA000001 / To: AA218010 		$203.84 1
19835A LR019678
TUBE
Air Conditioning Evaporator To Compressor, Includes O-Ring / From: AA218011 		$203.84 1
19835B LR016269
TUBE
Condenser To Evaporator, Includes O-Ring, With Sensor / From: AA000001 		$214.81 1
19835C LR019467
TUBE
To Evaporator / From: AA000001 		$53.22 1
