Brake And Clutch Controls ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Brake And Clutch Controls ((V) FROMAA000001)

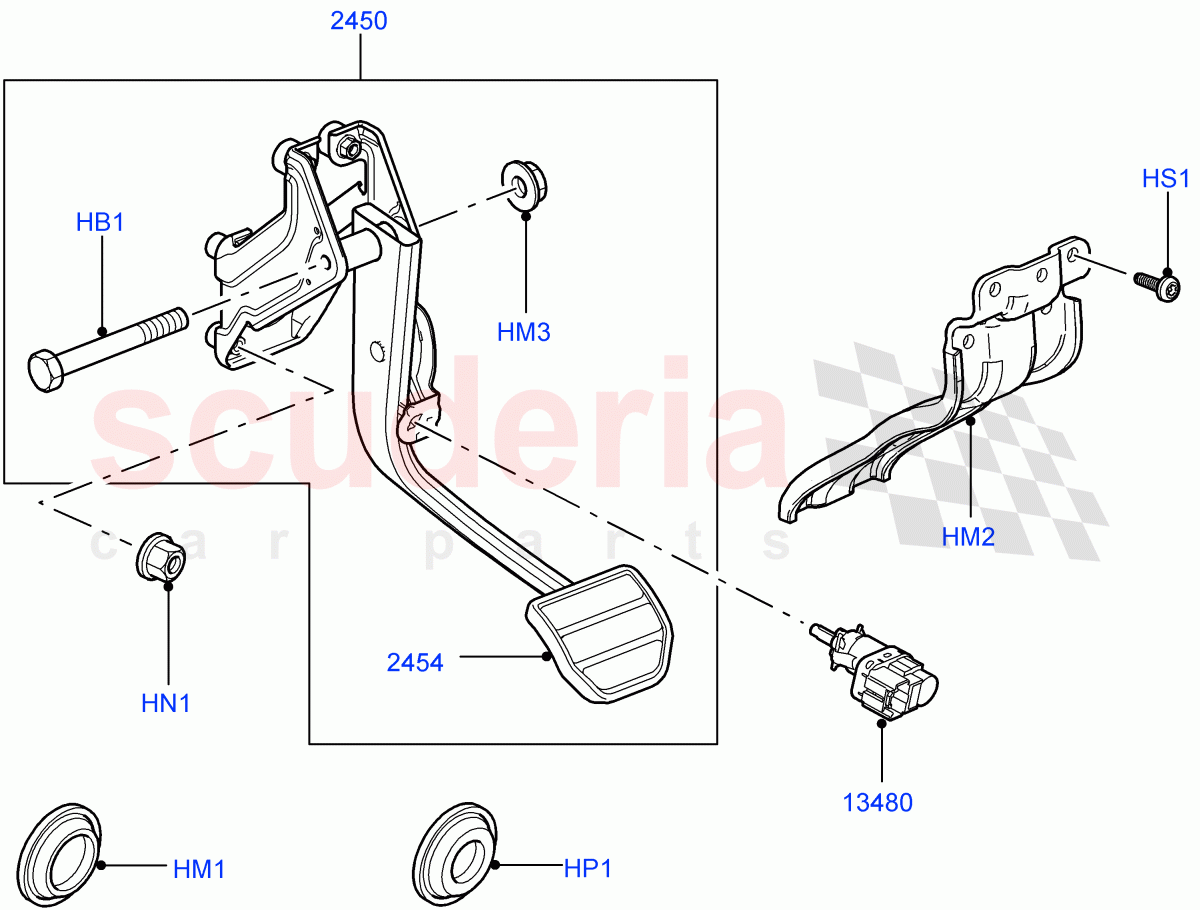

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BH110181L	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DZA5337	Hardware - Miscellaneous	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SKV500031	STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110041	Hardware - Miscellaneous	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DWJ500020	PLUG - ENGINE	Enquire	To Order
	DWJ500020	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500010	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SKB000431PVJ	PEDAL - BRAKE	Enquire	To Order
	SKB500031PVJ	PEDAL - BRAKE	Enquire	To Order
	LR043355	Pedal And Bracket	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SKE500010	PAD - PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XKB500110	SWITCH - STOP LIGHT	Enquire	To Order
	LR072647	SWITCH - STOP LIGHT	Enquire	To Order
	LR116714	SWITCH - STOP LIGHT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	BH110181L	BOLT	BH110181L BOLT M10 X 90MM / From: AA000001	-	1	Enquire
HM1	DZA5337	Hardware - Miscellaneous	DZA5337 Hardware - Miscellaneous RHD / 30MM / From: AA000001	-	1	Enquire
HM2	SKV500031	STOP	SKV500031 STOP Brake Pedal, Bumper, Steel / From: AA000001	-	1	Enquire
HM3	FN110041	Hardware - Miscellaneous	FN110041 Hardware - Miscellaneous M10, Nut / From: AA000001	-	1	Enquire
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: AA000001	-	6	Enquire
HP1	DWJ500020	PLUG - ENGINE	DWJ500020 PLUG - ENGINE LHD / 22MM / From: AA000001	-	2	Enquire
HP1	DWJ500020	PLUG - ENGINE	DWJ500020 PLUG - ENGINE RHD / 22MM / From: AA000001	-	1	Enquire
HS1	SYP500010	SCREW - SELF-TAPPING	SYP500010 SCREW - SELF-TAPPING M6 X 16MM, Torx / From: AA000001	-	4	Enquire
2450	SKB000431PVJ	PEDAL - BRAKE	SKB000431PVJ PEDAL - BRAKE RHD / From: AA000001 / To: DA764025	-	1	Enquire
2450	SKB500031PVJ	PEDAL - BRAKE	SKB500031PVJ PEDAL - BRAKE LHD / From: AA000001 / To: DA764025	-	1	Enquire
2450	LR043355	Pedal And Bracket	LR043355 Pedal And Bracket RHD / From: DA764026 / To: DA792042	-	1	Enquire
2450	LR043359	Pedal And Bracket	LR043359 Pedal And Bracket LHD / From: DA764026 / To: DA792042	-	1	Enquire
2450	LR045342	PEDAL - BRAKE	LR045342 PEDAL - BRAKE RHD / From: DA792043	-	1	Enquire
2450	LR045343	PEDAL - BRAKE	LR045343 PEDAL - BRAKE LHD / From: DA792043	-	1	Enquire
2454	SKE500010	PAD - PEDAL	SKE500010 PAD - PEDAL From: AA000001	-	1	Enquire
13480	XKB500110	SWITCH - STOP LIGHT	XKB500110 SWITCH - STOP LIGHT From: AA000001 / To: DA784898	-	1	Enquire
13480	LR072647	SWITCH - STOP LIGHT	LR072647 SWITCH - STOP LIGHT From: DA784899 / To: DA803326	-	1	Enquire
13480	LR116714	SWITCH - STOP LIGHT	LR116714 SWITCH - STOP LIGHT From: DA803327	-	1	Enquire
