Fuel Injectors And Pipes (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Fuel Injectors And Pipes (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

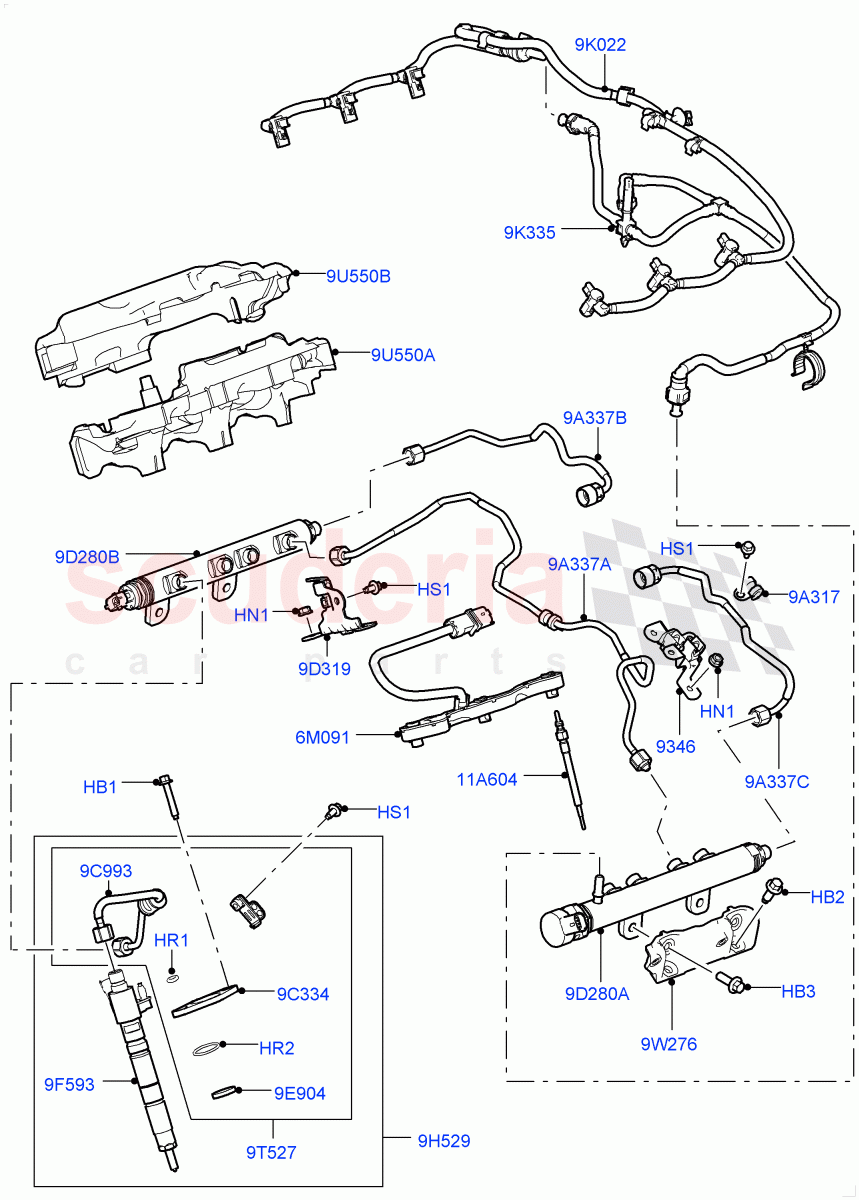

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1387730	BOLT	Enquire	To Order
	LR032108	BOLT - FUEL INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1305834	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108252	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054612	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022992	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013176	BRACKET - FUEL LINES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007521	WIRE - GLOW PLUG	Enquire	To Order
	LR007522	WIRE - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032817	CLAMP - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072253	TUBE - FUEL	Enquire	To Order
	LR072253	TUBE - FUEL	Enquire	To Order
	LR072252	TUBE - FUEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013483	BRACKET - FUEL LINES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032818	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014205	INJECTOR - FUEL	Enquire	To Order
	LR069236	INJECTOR - FUEL	Enquire	To Order
	LR054297	INJECTOR - FUEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017924	KIT - FUEL INJECTION	Enquire	To Order
	LR017925	KIT - FUEL INJECTION	Enquire	To Order
	LR017923	KIT - FUEL INJECTION	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR032107	TUBE - INJECTION PUMP LEAK-OFF	Enquire	To Order
	LR032107	TUBE - INJECTION PUMP LEAK-OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021871	TUBE - FUEL RETURN	Enquire	To Order
	LR021871	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017436	KIT - INJECTOR REFIT	Enquire	To Order
	LR017437	KIT - INJECTOR REFIT	Enquire	To Order
	LR017438	KIT - INJECTOR REFIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013195	BRACKET - FUEL RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013275	GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013482	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013481	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059808	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013182	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR035125	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR040877	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013183	MANIFOLD - FUEL SUPPLY	Enquire	To Order
	LR164041	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015440	INSULATOR	Enquire	To Order
	LR015441	INSULATOR	Enquire	To Order
	LR022120	INSULATOR - FUEL INJECTORS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR014223	INSULATOR - FUEL INJECTORS	Enquire	To Order
	LR014224	INSULATOR - FUEL INJECTORS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1387730	BOLT	1387730 BOLT M6 x 35MM, To Fuel Injectors / From: AA000001 / To: AA999999	-	12	Enquire
HB1	LR032108	BOLT - FUEL INJECTOR	LR032108 BOLT - FUEL INJECTOR M6 x 35MM, To Fuel Injectors / From: BA000001	-	12	Enquire
HB2	1305834	BOLT	1305834 BOLT Bracket, Fuel Rail, M8 X 20MM / From: AA000001	-	4	Enquire
HB3	FS108252	BOLT - HEX.HEAD	FS108252 BOLT - HEX.HEAD Bracket, Fuel Rail, Hexagonal Head, M8 X 25MM / From: AA000001	-	4	Enquire
HN1	FN106042	NUT	FN106042 NUT Bracket, For Fuel Tube, Hexagonal Head, M6 / From: AA000001	-	4	Enquire
HR1	LR054612	O-RING	LR054612 O-RING Lower, O-Ring Seal For Fuel Return Tube / From: AA000001	-	6	Enquire
HR2	LR022992	O-RING	LR022992 O-RING Lower / From: AA000001	-	6	Enquire
HS1	LR000621	SCREW	LR000621 SCREW Bracket, For Fuel Tube, M6 X 10MM / From: AA000001	-	5	Enquire
6M091	LR007521	WIRE - GLOW PLUG	LR007521 WIRE - GLOW PLUG LH / From: AA000001	-	1	Enquire
6M091	LR007522	WIRE - GLOW PLUG	LR007522 WIRE - GLOW PLUG RH / From: AA000001	-	1	Enquire
9A317	LR002751	CLIP	LR002751 CLIP Fuel Lines To Fuel Rail / From: AA000001	-	2	Enquire
9A337A	LR013482	PIPE - FUEL	LR013482 PIPE - FUEL Balance Pipe / From: AA000001	-	1	Enquire
9A337B	LR013481	PIPE - FUEL	LR013481 PIPE - FUEL RH, Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
9A337C	LR059808	PIPE - FUEL	LR059808 PIPE - FUEL LH, Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
9C334	LR032817	CLAMP - FUEL INJECTION	LR032817 CLAMP - FUEL INJECTION Fuel Injector / From: AA000001	-	6	Enquire
9C993	LR072253	TUBE - FUEL	LR072253 TUBE - FUEL Cylinder 1, Fuel Rail To Injector / From: AA000001 / To: CA731729	-	1	Enquire
9C993	LR072253	TUBE - FUEL	LR072253 TUBE - FUEL Cylinder 1, Fuel Rail To Injector / From: CA731730	-	1	Enquire
9C993	LR072252	TUBE - FUEL	LR072252 TUBE - FUEL Cylinder 3, Cylinder 4, Fuel Rail To Injector / From: CA731730	-	2	Enquire
9C993	LR072254	TUBE - FUEL	LR072254 TUBE - FUEL Cylinder 2, Cylinders 5 And 6, Fuel Rail To Injector / From: CA731730	-	3	Enquire
9C993	LR072252	TUBE - FUEL	LR072252 TUBE - FUEL Cylinder 3, Cylinder 4, Fuel Rail To Injector / From: AA000001 / To: CA731729	-	2	Enquire
9C993	LR072254	TUBE - FUEL	LR072254 TUBE - FUEL Cylinder 2, Cylinders 5 And 6, Fuel Rail To Injector / From: AA000001 / To: CA731729	-	3	Enquire
9D280A	LR013182	MANIFOLD - FUEL SUPPLY	LR013182 MANIFOLD - FUEL SUPPLY LH, With Valve / From: AA000001 / To: DA691360	-	1	Enquire
9D280A	LR035125	MANIFOLD - FUEL SUPPLY	LR035125 MANIFOLD - FUEL SUPPLY LH, With Valve / From: DA691361 / To: DA791360	-	1	Enquire
9D280A	LR040877	MANIFOLD - FUEL SUPPLY	LR040877 MANIFOLD - FUEL SUPPLY LH, With Valve / From: DA791361	-	1	Enquire
9D280B	LR013183	MANIFOLD - FUEL SUPPLY	LR013183 MANIFOLD - FUEL SUPPLY RH, Includes Fuel Pressure Sensor / From: AA000001 / To: DA791360	-	1	Enquire
9D280B	LR164041	MANIFOLD - FUEL SUPPLY	LR164041 MANIFOLD - FUEL SUPPLY RH, Includes Fuel Pressure Sensor / From: DA791361	-	1	Enquire
9D319	LR013483	BRACKET - FUEL LINES	LR013483 BRACKET - FUEL LINES RH, Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
9E904	LR032818	WASHER - SEALING	LR032818 WASHER - SEALING To Fuel Injectors / From: AA000001	-	6	Enquire
9F593	LR014205	INJECTOR - FUEL	LR014205 INJECTOR - FUEL Engine Torque-600 Newton Metre / Fuel Injector, New Part-Please Check For Reman Version / From: AA000001 / To: BA625558	-	6	Enquire
9F593	LR069236	INJECTOR - FUEL	LR069236 INJECTOR - FUEL Engine Torque-520 Newton Metre / Fuel Injector / From: AA000001	-	6	Enquire
9F593	LR054297	INJECTOR - FUEL	LR054297 INJECTOR - FUEL Engine Torque-600 Newton Metre / For UK and ROW markets except Russia, China, Brazil, Fuel Injector, Remanufactured Part / From: AA000001	-	6	Enquire
9F593	LR095361	INJECTOR - FUEL	LR095361 INJECTOR - FUEL Engine Torque-625 Newton Metre / Fuel Injector / From: BA625559	-	6	Enquire
9H529	LR017924	KIT - FUEL INJECTION	LR017924 KIT - FUEL INJECTION Engine Torque-600 Newton Metre / Cylinder No.1, Injector Assembly, New Part-Please Check For Reman Version / From: AA000001	-	1	Enquire
9H529	LR017925	KIT - FUEL INJECTION	LR017925 KIT - FUEL INJECTION Engine Torque-600 Newton Metre / Cylinder No.2, Cylinder No.5, Cylinder No.6, Injector Assembly, New Part-Please Check For Reman Version / From: AA000001	-	3	Enquire
9H529	LR017923	KIT - FUEL INJECTION	LR017923 KIT - FUEL INJECTION Engine Torque-600 Newton Metre / Cylinder No.3, Cylinder No.4, Injector Assembly, New Part-Please Check For Reman Version / From: AA000001	-	2	Enquire
9H529	LR029527	KIT - FUEL INJECTION	LR029527 KIT - FUEL INJECTION Engine Torque-600 Newton Metre / Cylinder No.1, Injector Assembly, Remanufactured Part / From: AA000001	-	1	Enquire
9H529	LR029526	KIT - FUEL INJECTION	LR029526 KIT - FUEL INJECTION Engine Torque-600 Newton Metre / Cylinder No.2, Cylinder No.5, Cylinder No.6, Injector Assembly, Remanufactured Part / From: AA000001	-	3	Enquire
9H529	LR029525	KIT - FUEL INJECTION	LR029525 KIT - FUEL INJECTION Engine Torque-600 Newton Metre / Cylinder No.3, Cylinder No.4, Injector Assembly, Remanufactured Part / From: AA000001	-	2	Enquire
9H529	LR031485	KIT - FUEL INJECTION	LR031485 KIT - FUEL INJECTION Engine Torque-520 Newton Metre / Cylinder No.1, Injector Assembly / From: CA000001	-	1	Enquire
9H529	LR031486	KIT - FUEL INJECTION	LR031486 KIT - FUEL INJECTION Engine Torque-520 Newton Metre / Cylinder No.2, Cylinder No.5, Cylinder No.6, Injector Assembly / From: CA000001	-	3	Enquire
9H529	LR031487	KIT - FUEL INJECTION	LR031487 KIT - FUEL INJECTION Engine Torque-520 Newton Metre / Cylinder No.3, Cylinder No.4, Injector Assembly / From: CA000001	-	2	Enquire
9K022	LR032107	TUBE - INJECTION PUMP LEAK-OFF	LR032107 TUBE - INJECTION PUMP LEAK-OFF Leak Off / From: AA000001 / To: BA999999	-	1	Enquire
9K022	LR032107	TUBE - INJECTION PUMP LEAK-OFF	LR032107 TUBE - INJECTION PUMP LEAK-OFF Leak Off / From: CA000001	-	1	Enquire
9K335	LR021871	TUBE - FUEL RETURN	LR021871 TUBE - FUEL RETURN Return / From: AA000001 / To: AA246303	-	1	Enquire
9K335	LR021871	TUBE - FUEL RETURN	LR021871 TUBE - FUEL RETURN Return / From: AA246304	-	1	Enquire
9T527	LR017436	KIT - INJECTOR REFIT	LR017436 KIT - INJECTOR REFIT Cylinder No.1, Includes Tube, Washer, Clamp, O Rings / From: AA000001	-	1	Enquire
9T527	LR017437	KIT - INJECTOR REFIT	LR017437 KIT - INJECTOR REFIT Cylinder No.2, Cylinder No.5, Cylinder No.6, Includes Tube, Washer, Clamp, O Rings / From: AA000001	-	3	Enquire
9T527	LR017438	KIT - INJECTOR REFIT	LR017438 KIT - INJECTOR REFIT Cylinder No.3, Cylinder No.4, Includes Tube, Washer, Clamp, O Rings / From: AA000001	-	2	Enquire
9U550A	LR015440	INSULATOR	LR015440 INSULATOR LH, Lower / From: AA000001 / To: AA238882	-	1	Enquire
9U550A	LR015441	INSULATOR	LR015441 INSULATOR RH, Lower / From: AA000001 / To: AA238882	-	1	Enquire
9U550A	LR022120	INSULATOR - FUEL INJECTORS	LR022120 INSULATOR - FUEL INJECTORS LH, Fuel Injectors, Lower / From: AA238883	-	1	Enquire
9U550A	LR022122	INSULATOR - FUEL INJECTORS	LR022122 INSULATOR - FUEL INJECTORS RH, Fuel Injectors, Lower / From: AA238883	-	1	Enquire
9U550B	LR014223	INSULATOR - FUEL INJECTORS	LR014223 INSULATOR - FUEL INJECTORS LH, Fuel Injectors, Upper / From: AA000001	-	1	Enquire
9U550B	LR014224	INSULATOR - FUEL INJECTORS	LR014224 INSULATOR - FUEL INJECTORS RH, Fuel Injectors, Upper / From: AA000001	-	1	Enquire
9W276	LR013195	BRACKET - FUEL RAIL	LR013195 BRACKET - FUEL RAIL From: AA000001	-	2	Enquire
11A604	LR013275	GLOW PLUG	LR013275 GLOW PLUG From: AA000001	-	6	Enquire
9346	LR013176	BRACKET - FUEL LINES	LR013176 BRACKET - FUEL LINES LH, Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
