Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

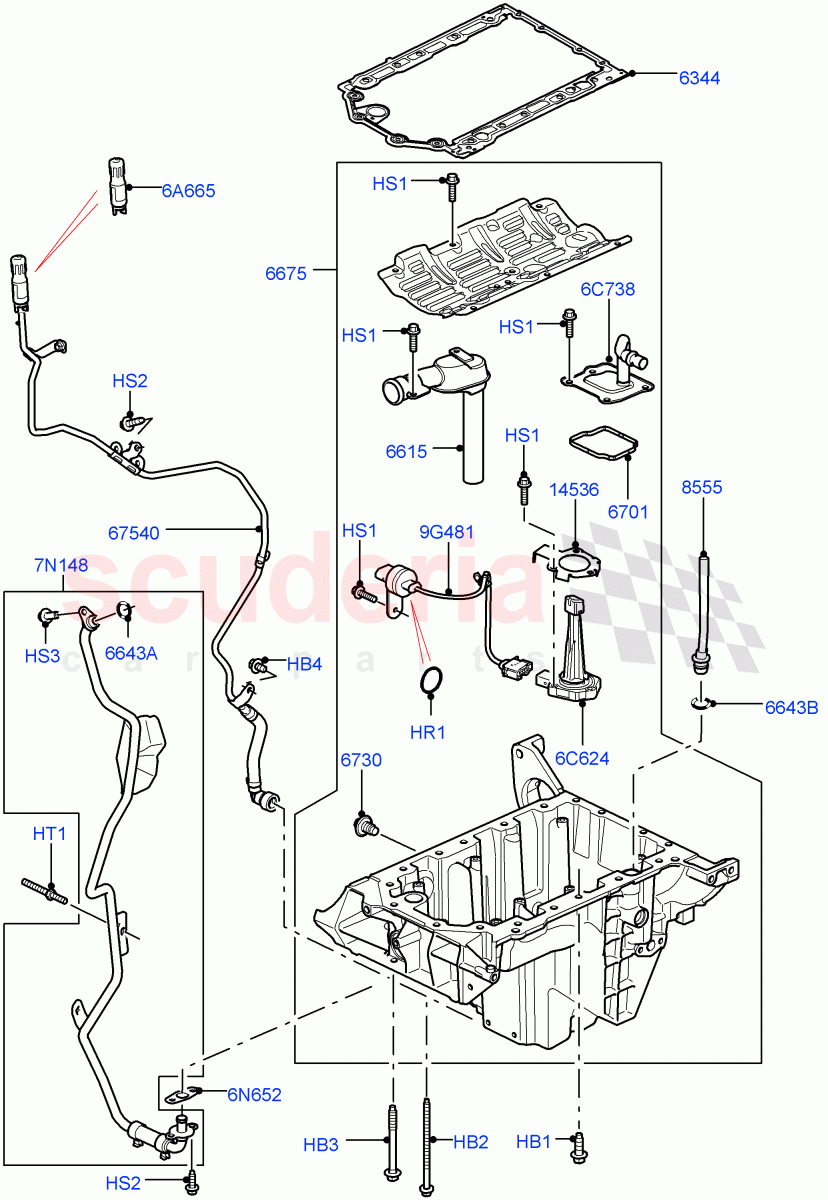

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1305834	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106106	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096214	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018816	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014198	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005994	GASKET - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013527	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013528	PAN - ENGINE OIL	Enquire	To Order
	LR034462	PAN - ENGINE OIL	Enquire	To Order
	LR031777	PAN - ENGINE OIL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR014174	SEAL - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013608	TUBE - CRANKCASE VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086422	RETAINER - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018460	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013568	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019457	TUBE - OIL EXTRACTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013740	CAP - OIL LEVEL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037782	COVER AND TUBE - SCAVENGE RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1331076	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013565	TUBE - OIL	Enquire	To Order
	LR052353	TUBE - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014233	WIRE - OIL LEVEL SENSOR	Enquire	To Order
	LR034465	WIRE - OIL LEVEL SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1305834	BOLT	1305834 BOLT M8 X 20MM, Oil Pan / From: AA000001	-	9	Enquire
HB2	1225745	BOLT AND WASHER - HEX.HEAD	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM, Oil Pan / From: AA000001	-	8	Enquire
HB3	1419374	BOLT	1419374 BOLT M8 X 75MM, Oil Pan / From: AA000001	-	1	Enquire
HB4	FS106106	BOLT	FS106106 BOLT Hexagonal Head, M6 X 10MM / From: AA000001	-	1	Enquire
HR1	LR096214	RING - SEALING	LR096214 RING - SEALING Wiring Connector / From: AA000001	-	2	Enquire
HS1	LR018816	SCREW	LR018816 SCREW M6 x 25MM / From: AA000001	-	16	Enquire
HS2	4364422	SCREW	4364422 SCREW M6 X 16MM, Tube / From: AA000001	-	3	Enquire
HS3	4380670	SCREW	4380670 SCREW Hexagonal Head, M6 X 16MM / From: AA000001	-	1	Enquire
HT1	LR014198	STUD	LR014198 STUD M6 X 20MM, M6 X 40MM / From: AA000001	-	1	Enquire
6A665	LR013740	CAP - OIL LEVEL TUBE	LR013740 CAP - OIL LEVEL TUBE Tube - Oil Extraction / From: AA000001	-	1	Enquire
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL From: AA000001	-	1	Enquire
6C738	LR037782	COVER AND TUBE - SCAVENGE RESERVOIR	LR037782 COVER AND TUBE - SCAVENGE RESERVOIR From: AA000001	-	1	Enquire
6N652	1331076	GASKET - OIL TUBE	1331076 GASKET - OIL TUBE Oil Tube / From: AA000001	-	1	Enquire
7N148	LR013565	TUBE - OIL	LR013565 TUBE - OIL Scavenger Pipe / From: AA000001 / To: DA807692	-	1	Enquire
7N148	LR052353	TUBE - OIL	LR052353 TUBE - OIL Scavenger Pipe / From: DA807693	-	1	Enquire
9G481	LR014233	WIRE - OIL LEVEL SENSOR	LR014233 WIRE - OIL LEVEL SENSOR Sensor - Oil Level / From: AA000001 / To: CA744415	-	1	Enquire
9G481	LR034465	WIRE - OIL LEVEL SENSOR	LR034465 WIRE - OIL LEVEL SENSOR Sensor - Oil Level / From: CA744416	-	1	Enquire
6344	LR005994	GASKET - OIL PAN	LR005994 GASKET - OIL PAN Oil Pan / From: AA000001	-	1	Enquire
6615	LR013527	TUBE - OIL PUMP INLET	LR013527 TUBE - OIL PUMP INLET From: AA000001	-	1	Enquire
6643A	LR018460	O-RING	LR018460 O-RING Scavenger Pipe / From: AA000001	-	1	Enquire
6643B	LR013568	O-RING	LR013568 O-RING Ventilation Tube / From: AA000001	-	1	Enquire
6675	LR013528	PAN - ENGINE OIL	LR013528 PAN - ENGINE OIL From: AA000001 / To: CA731698	-	1	Enquire
6675	LR034462	PAN - ENGINE OIL	LR034462 PAN - ENGINE OIL From: CA744416 / To: CA744420	-	1	Enquire
6675	LR031777	PAN - ENGINE OIL	LR031777 PAN - ENGINE OIL From: CA731699 / To: CA744415	-	1	Enquire
6675	LR049183	PAN - ENGINE OIL	LR049183 PAN - ENGINE OIL For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Please Order: Turbo Oil Drain Hose P/N LR044556, Gasket P/N LR013235 and Screw P/N RYG500160 / From: CA744421	-	1	Enquire
6701	LR014174	SEAL - COVER	LR014174 SEAL - COVER Cover Scavenge Reservoir / From: AA000001	-	1	Enquire
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN Head Size: 13mm, Includes Seal, M14 X 1.5 / From: AA000001	-	1	Enquire
8555	LR013608	TUBE - CRANKCASE VENTILATION	LR013608 TUBE - CRANKCASE VENTILATION Crankcase Ventilation / From: AA000001	-	1	Enquire
14536	LR086422	RETAINER - OIL PAN	LR086422 RETAINER - OIL PAN Sensor - Oil Level / From: AA000001	-	1	Enquire
67540	LR019457	TUBE - OIL EXTRACTION	LR019457 TUBE - OIL EXTRACTION From: AA000001	-	1	Enquire
