Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (3.0 V6 Diesel) ((V) FROMAA000001)

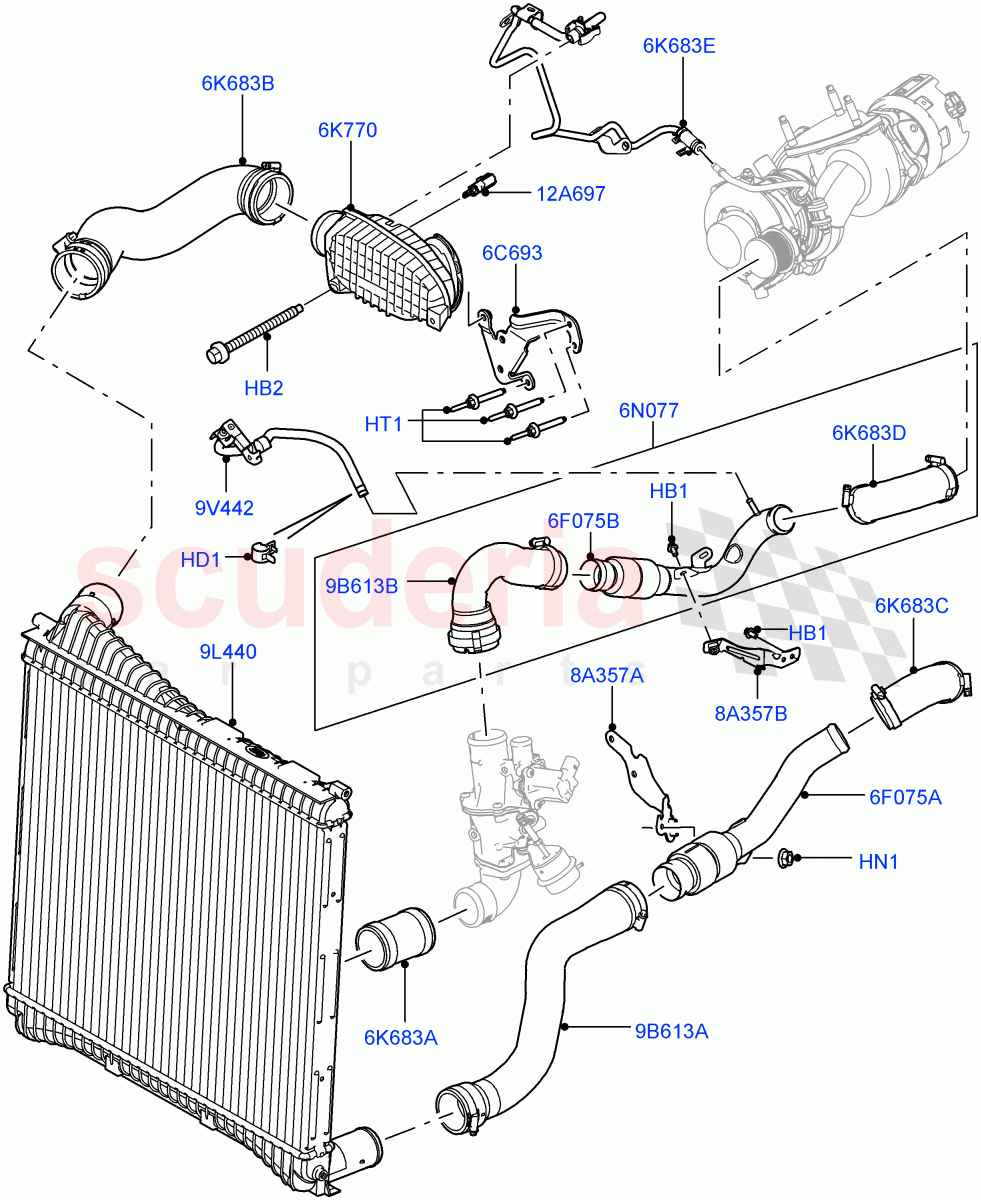

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.50 IN STOCK
Photo Part No Description Price (each) Stock
LYG500230 BOLT $1.11 To Order
Photo Part No Description Price (each) Stock
LR016628 CLAMP - TUBE $2.65 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.69 IN STOCK
Photo Part No Description Price (each) Stock
LR009320 STUD $2.17 To Order
Photo Part No Description Price (each) Stock
LR012596 BRACKET - AIR DUCT SUPPORT $42.94 To Order
LR042666 BRACKET - AIR DUCT SUPPORT $38.28 To Order
Photo Part No Description Price (each) Stock
LR014212 DUCT - AIR $87.55 To Order
Photo Part No Description Price (each) Stock
LR015603 INTERCOOLER $611.35 To Order
Photo Part No Description Price (each) Stock
LR014386 SENSOR - AIR CHARGE $110.92 To Order
Photo Part No Description Price (each) Stock
LR018294 SENSOR - AIR CHARGE TEMPERATURE $105.53 To Order
Photo Part No Description Price (each) Stock
LR019396 TUBE $466.48 To Order
Photo Part No Description Price (each) Stock
LR019398 TUBE $512.01 To Order
Photo Part No Description Price (each) Stock
LR014282 HOSE - INTERCOOLER $70.34 To Order
Photo Part No Description Price (each) Stock
LR014234 HOSE - COMPRESSED AIR $57.44 To Order
Photo Part No Description Price (each) Stock
LR019397 HOSE $134.04 To Order
Photo Part No Description Price (each) Stock
LR019399 HOSE $134.04 To Order
Photo Part No Description Price (each) Stock
LR015456 HOSE $100.26 To Order
LR034107 PIPE - TURBO BOOST $118.41 To Order
LR045348 PIPE - TURBO BOOST $104.70 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PEU500140 BRACKET $85.23 To Order
Photo Part No Description Price (each) Stock
LR042148 BRACKET - COOLING HOSE $48.89 To Order
Photo Part No Description Price (each) Stock
LR020026 TUBE - INLET $249.16 To Order
Photo Part No Description Price (each) Stock
LR014154 HOSE - INTERCOOLER $86.31 To Order
View All
Intercooler/Air Ducts And Hoses (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.50 3
HB2 LYG500230
BOLT
M6 / From: AA000001 		$1.11 1
HD1 LR016628
CLAMP - TUBE
Hose, Hose Clamp, Secondary Compressor Outlet Pressure Sensor / From: AA000001 		$2.65 2
HN1 FY106046
NUT - HEX.
Hexagonal Head, M6, Support Bracket / From: AA000001
IN STOCK 		$0.69 1
HT1 LR009320
STUD
M6 X 39 / 4.5 X 24.5 / From: AA000001 		$2.17 3
6C693 LR012596
BRACKET - AIR DUCT SUPPORT
Air Duct Support / From: AA000001 / To: DA666665 		$42.94 1
6C693 LR042666
BRACKET - AIR DUCT SUPPORT
Air Duct Support / From: DA666666 		$38.28 1
6F075A LR019396
TUBE
LH / From: AA000001 		$466.48 1
6F075B LR019398
TUBE
RH / From: AA000001 		$512.01 1
6K683A LR014282
HOSE - INTERCOOLER
From Valve To Intercooler / From: AA000001 		$70.34 1
6K683B LR014234
HOSE - COMPRESSED AIR
CAC Hose To Intake Manifold Elbow / From: AA000001 		$57.44 1
6K683C LR019397
HOSE
LH, Turbocharger Outlet / From: AA000001 		$134.04 1
6K683D LR019399
HOSE
RH, Turbocharger Outlet / From: AA000001 		$134.04 1
6K683E LR015456
HOSE
Boost Pipe / From: AA000001 / To: CA754167 		$100.26 1
6K683E LR034107
PIPE - TURBO BOOST
Boost Pipe / From: CA754168 / To: DA781381 		$118.41 1
6K683E LR045348
PIPE - TURBO BOOST
Boost Pipe / From: DA781382 / To: DA801920 		$104.70 1
6K683E LR056209
PIPE - TURBO BOOST
Boost Pipe / From: DA801921 / To: DA814631 		$149.60 1
6K683E LR056210
TUBE - AIR CLEANER INTAKE
Boost Pipe / From: DA814632 		$84.97 1
6K770 LR014212
DUCT - AIR
Air Box / From: AA000001 		$87.55 1
8A357A PEU500140
BRACKET
Turbocharger Outlet / From: AA000001 		$85.23 1
8A357B LR042148
BRACKET - COOLING HOSE
Turbocharger Outlet / From: AA000001 		$48.89 1
9B613A LR020026
TUBE - INLET
LH, Intercooler Inlet / From: AA000001 		$249.16 1
9B613B LR014154
HOSE - INTERCOOLER
From Turbocharger To Valve / From: AA000001 		$86.31 1
9L440 LR015603
INTERCOOLER
From: AA000001 		$611.35 1
9V442 LR014386
SENSOR - AIR CHARGE
Secondary Compressor Outlet Pressure Sensor With Tube / From: AA000001 		$110.92 1
12A697 LR018294
SENSOR - AIR CHARGE TEMPERATURE
From: AA000001 		$105.53 1
