Name: Pulleys And Drive Belts (Front) (3.0 V6 Diesel, Less Roll Stability Control, Less ACE Suspension) ((V) FROMAA000001)
Rating: 4.9 (1 reviews)

Pulleys And Drive Belts (Front) (3.0 V6 Diesel, Less Roll Stability Control, Less ACE Suspension) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2010-2013) [3.0 Diesel 24V DOHC TC] - Pulleys And Drive Belts (Front) (3.0 V6 Diesel, Less Roll Stability Control, Less ACE Suspension)...

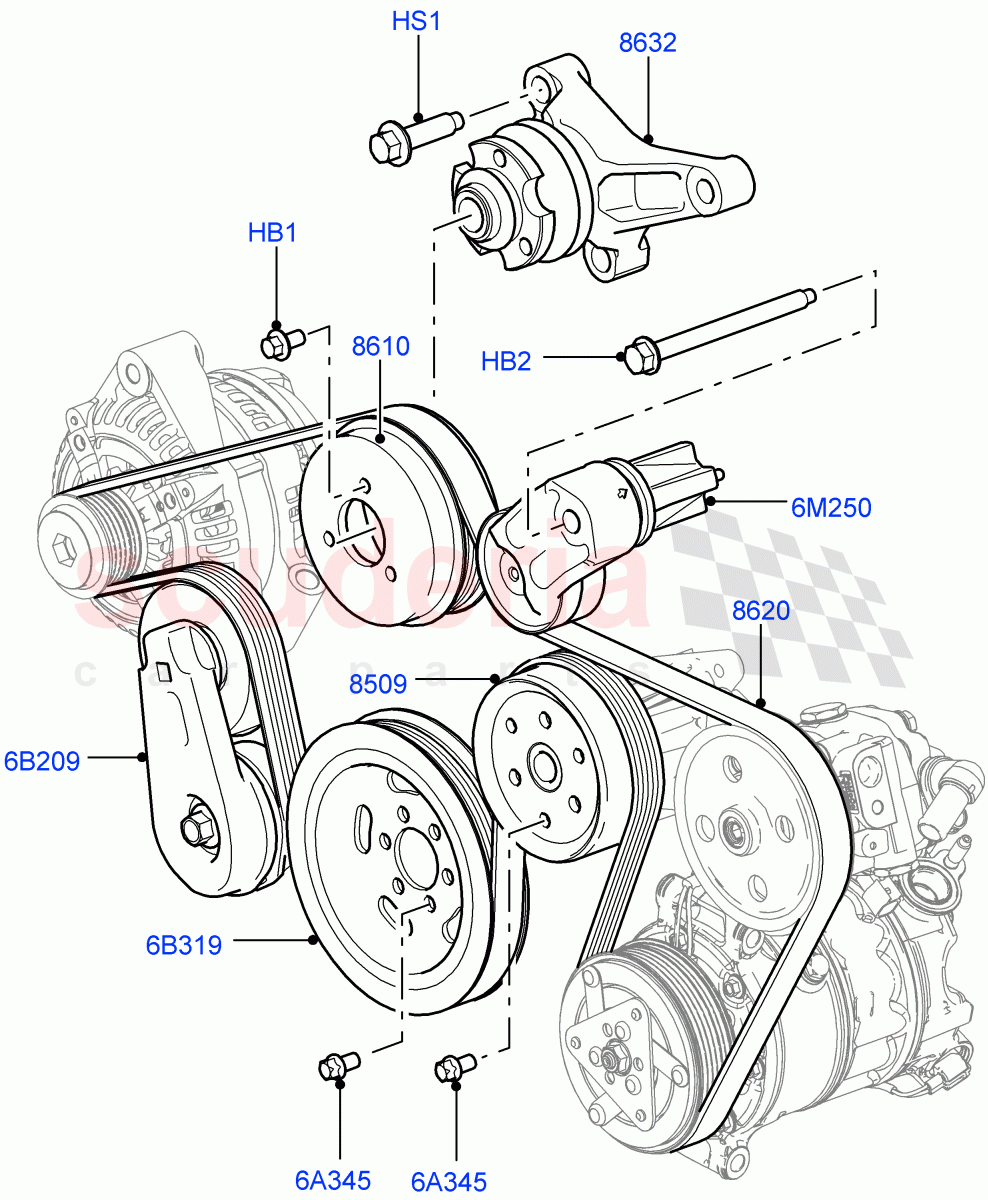

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4622661	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LYG500250	BOLT	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003513	SCREW	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	1311327	PULLEY - WATER PUMP	$17.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013539	PULLEY - FAN	$95.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013697	V-BELT	$68.13	To Order

Photo	Part No	Description	Price (each)	Stock
	1335282	BRACKET	$192.24	To Order

Photo	Part No	Description	Price (each)	Stock
	1406627	BOLT - HEX.HEAD	$1.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016140	TENSIONER - DRIVE BELT	$173.08	To Order
	LR035493	TENSIONER - DRIVE BELT	$189.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067312	PULLEY - CRANKSHAFT	$376.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013506	PULLEY - IDLER	$94.49	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4622661	SCREW	4622661 SCREW M8 X 16MM, Pulley / From: AA000001	$0.70	3
HB2	LYG500250	BOLT	LYG500250 BOLT idler, M10 X 115 / From: AA000001	$2.92	1
HS1	LR003513	SCREW	LR003513 SCREW M12 x 40MM / From: AA000001	$6.82	3
6A345	1406627	BOLT - HEX.HEAD IN STOCK	1406627 BOLT - HEX.HEAD M8 X 14MM, Pulley / From: AA000001 IN STOCK	$1.84	9
6B209	LR016140	TENSIONER - DRIVE BELT	LR016140 TENSIONER - DRIVE BELT From: AA000001 / To: CA999999	$173.08	1
6B209	LR035493	TENSIONER - DRIVE BELT	LR035493 TENSIONER - DRIVE BELT Drive Belt / From: DA000001	$189.53	1
6B319	LR067312	PULLEY - CRANKSHAFT	LR067312 PULLEY - CRANKSHAFT Pulley And Damper Assembly / From: AA000001	$376.59	1
6M250	LR013506	PULLEY - IDLER IN STOCK	LR013506 PULLEY - IDLER From: AA000001 IN STOCK	$94.49	1
8509	1311327	PULLEY - WATER PUMP	1311327 PULLEY - WATER PUMP From: AA000001	$17.57	1
8610	LR013539	PULLEY - FAN	LR013539 PULLEY - FAN Fan / From: AA000001	$95.78	1
8620	LR013697	V-BELT	LR013697 V-BELT 6PK2102 / From: AA000001	$68.13	1
8632	1335282	BRACKET	1335282 BRACKET Fan, Pulley / From: AA000001	$192.24	1
