Load Compartment Trim (Floor) (With 5 Seat Configuration, Flex Fuel - E100, Diesel/Electric - Hybrid, With Diesel Fuel Capability, For Unleaded Fuel) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Load Compartment Trim (Floor) (With 5 Seat Configuration, Flex Fuel - E100, Diesel/Electric -...

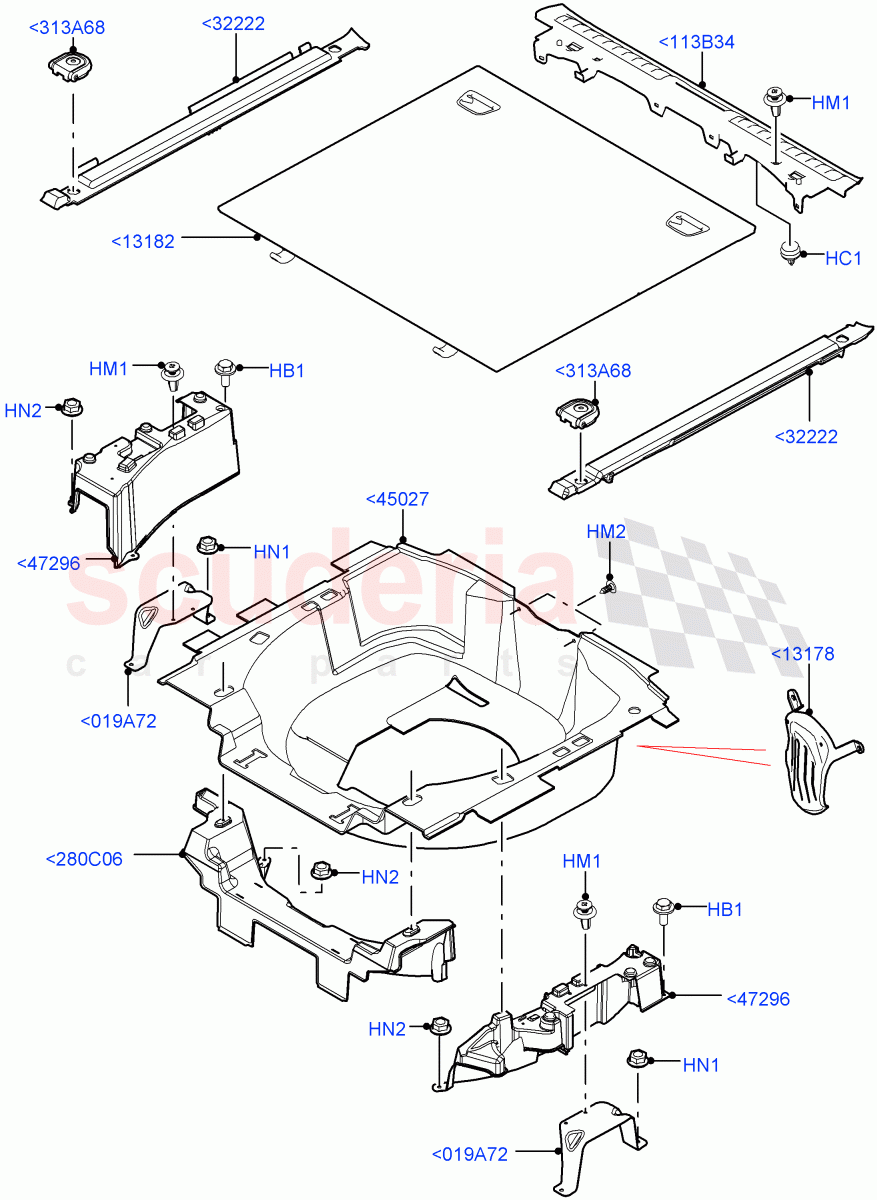

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035841	CLIP - TRIM - PILLARS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005541	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087641	COVER - SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043829	CARPET - FLOOR - LOADING COMP.	Enquire	To Order
	LR043830	CARPET - FLOOR - LOADING COMP.	Enquire	To Order
	LR055395	CARPET - FLOOR - LOADING COMP.	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR044826	RAIL - LUGGAGE COMPARTMENT - INSERT	Enquire	To Order
	LR044827	RAIL - LUGGAGE COMPARTMENT - INSERT	Enquire	To Order
	LR044828	RAIL - LUGGAGE COMPARTMENT - INSERT	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR046735	COVER - SPARE WHEEL CARRIER	Enquire	To Order
	LR054958	COVER - SPARE WHEEL CARRIER	Enquire	To Order
	LR055901	COVER - SPARE WHEEL CARRIER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038041	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order
	LR038042	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order
	LR112512	BRACKET - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038312	BRACKET - LUGGAGE RAILS SUPPORT	Enquire	To Order
	LR038313	BRACKET - LUGGAGE RAILS SUPPORT	Enquire	To Order
	LR038313	BRACKET - LUGGAGE RAILS SUPPORT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR044743	PLATE - TAILGATE RECLINE	Enquire	To Order
	LR044744	PLATE - TAILGATE RECLINE	Enquire	To Order
	LR116642	PLATE - TAILGATE RECLINE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038043	SUPPORT - SPARE WHEEL CARRIER	Enquire	To Order
	LR095812	SUPPORT - SPARE WHEEL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031907	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	Enquire	To Order
	LR071806	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	Enquire	To Order
	LR088865	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<019A72	LR038312	BRACKET - LUGGAGE RAILS SUPPORT	LR038312 BRACKET - LUGGAGE RAILS SUPPORT Less Load Retainer Luggage / RH / To: KA999999	-	1	Enquire
<019A72	LR038313	BRACKET - LUGGAGE RAILS SUPPORT	LR038313 BRACKET - LUGGAGE RAILS SUPPORT Less Load Retainer Luggage / LH / To: GA999999	-	1	Enquire
<019A72	LR038313	BRACKET - LUGGAGE RAILS SUPPORT	LR038313 BRACKET - LUGGAGE RAILS SUPPORT Less Load Retainer Luggage, Less Trailer Towing Hitch / LH / From: HA000001 / To: KA999999	-	1	Enquire
<019A72	LR038312	BRACKET - LUGGAGE RAILS SUPPORT	LR038312 BRACKET - LUGGAGE RAILS SUPPORT For Unleaded Fuel / RH / From: LA000001	-	1	Enquire
<019A72	LR038313	BRACKET - LUGGAGE RAILS SUPPORT	LR038313 BRACKET - LUGGAGE RAILS SUPPORT Less Trailer Towing Hitch, With Diesel Fuel Capability / LH / From: LA000001	-	1	Enquire
<113B34	LR044743	PLATE - TAILGATE RECLINE	LR044743 PLATE - TAILGATE RECLINE Interior Espresso Carpet / To: JA199636	-	1	Enquire
<113B34	LR044744	PLATE - TAILGATE RECLINE	LR044744 PLATE - TAILGATE RECLINE Int Ebony Carpet / To: JA199636	-	1	Enquire
<113B34	LR116642	PLATE - TAILGATE RECLINE	LR116642 PLATE - TAILGATE RECLINE Interior Espresso Carpet / From: JA199637	-	1	Enquire
<113B34	LR116644	PLATE - TAILGATE RECLINE	LR116644 PLATE - TAILGATE RECLINE Int Ebony Carpet / From: JA199637	-	1	Enquire
<280C06	LR038043	SUPPORT - SPARE WHEEL CARRIER	LR038043 SUPPORT - SPARE WHEEL CARRIER Centre / To: GA113374	-	1	Enquire
<280C06	LR095812	SUPPORT - SPARE WHEEL CARRIER	LR095812 SUPPORT - SPARE WHEEL CARRIER Centre / From: GA113375	-	1	Enquire
<313A68	LR031907	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR031907 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage / To: FA629960	-	4	Enquire
<313A68	LR071806	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR071806 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage / From: FA629961 / To: GA123138	-	4	Enquire
<313A68	LR088865	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage / From: GA123139 / To: KA999999	-	4	Enquire
<313A68	LR088865	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN For Unleaded Fuel / From: LA000001	-	4	Enquire
<13178	LR087641	COVER - SPEAKER	LR087641 COVER - SPEAKER From: HA000001	-	1	Enquire
<13182	LR043829	CARPET - FLOOR - LOADING COMP.	LR043829 CARPET - FLOOR - LOADING COMP. Interior Espresso Carpet / To: EA308260	-	1	Enquire
<13182	LR043830	CARPET - FLOOR - LOADING COMP.	LR043830 CARPET - FLOOR - LOADING COMP. Int Ebony Carpet / To: EA308260	-	1	Enquire
<13182	LR055395	CARPET - FLOOR - LOADING COMP.	LR055395 CARPET - FLOOR - LOADING COMP. Interior Espresso Carpet / From: EA308261	-	1	Enquire
<13182	LR055396	CARPET - FLOOR - LOADING COMP.	LR055396 CARPET - FLOOR - LOADING COMP. Int Ebony Carpet / From: EA308261	-	1	Enquire
<32222	LR044826	RAIL - LUGGAGE COMPARTMENT - INSERT	LR044826 RAIL - LUGGAGE COMPARTMENT - INSERT Interior Espresso Carpet, Less Load Retainer Luggage / RH / To: EA334214	-	1	Enquire
<32222	LR044827	RAIL - LUGGAGE COMPARTMENT - INSERT	LR044827 RAIL - LUGGAGE COMPARTMENT - INSERT Int Ebony Carpet, Less Load Retainer Luggage / RH / To: EA334214	-	1	Enquire
<32222	LR044828	RAIL - LUGGAGE COMPARTMENT - INSERT	LR044828 RAIL - LUGGAGE COMPARTMENT - INSERT Interior Espresso Carpet, Less Load Retainer Luggage / LH / To: EA334214	-	1	Enquire
<32222	LR044829	RAIL - LUGGAGE COMPARTMENT - INSERT	LR044829 RAIL - LUGGAGE COMPARTMENT - INSERT Int Ebony Carpet, Less Load Retainer Luggage / LH / To: EA334214	-	1	Enquire
<32222	LR061067	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061067 RAIL - LUGGAGE COMPARTMENT - INSERT Interior Espresso Carpet, Less Load Retainer Luggage / RH / From: EA334215 / To: KA999999	-	1	Enquire
<32222	LR061068	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061068 RAIL - LUGGAGE COMPARTMENT - INSERT Int Ebony Carpet, Less Load Retainer Luggage / RH / From: EA334215 / To: KA999999	-	1	Enquire
<32222	LR061069	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061069 RAIL - LUGGAGE COMPARTMENT - INSERT Interior Espresso Carpet, Less Load Retainer Luggage / LH / From: EA334215 / To: KA999999	-	1	Enquire
<32222	LR061070	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061070 RAIL - LUGGAGE COMPARTMENT - INSERT Int Ebony Carpet, Less Load Retainer Luggage / LH / From: EA334215 / To: KA999999	-	1	Enquire
<32222	LR061067	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061067 RAIL - LUGGAGE COMPARTMENT - INSERT Interior Espresso Carpet, With Diesel Fuel Capability / RH / From: LA000001	-	1	Enquire
<32222	LR061068	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061068 RAIL - LUGGAGE COMPARTMENT - INSERT Int Ebony Carpet, With Diesel Fuel Capability / RH / From: LA000001	-	1	Enquire
<32222	LR061069	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061069 RAIL - LUGGAGE COMPARTMENT - INSERT Interior Espresso Carpet, With Diesel Fuel Capability / LH / From: LA000001	-	1	Enquire
<32222	LR061070	RAIL - LUGGAGE COMPARTMENT - INSERT	LR061070 RAIL - LUGGAGE COMPARTMENT - INSERT For Unleaded Fuel, Int Ebony Carpet / LH / From: LA000001	-	1	Enquire
<45027	LR046735	COVER - SPARE WHEEL CARRIER	LR046735 COVER - SPARE WHEEL CARRIER Under Floor / To: EA301932	-	1	Enquire
<45027	LR054958	COVER - SPARE WHEEL CARRIER	LR054958 COVER - SPARE WHEEL CARRIER Under Floor / From: EA301933 / To: EA305166	-	1	Enquire
<45027	LR055901	COVER - SPARE WHEEL CARRIER	LR055901 COVER - SPARE WHEEL CARRIER Under Floor / From: EA305167 / To: EA309724	-	1	Enquire
<45027	LR056809	COVER - SPARE WHEEL CARRIER	LR056809 COVER - SPARE WHEEL CARRIER Under Floor / From: EA309725 / To: GA999999	-	1	Enquire
<45027	LR087640	COVER - SPARE WHEEL WELL	LR087640 COVER - SPARE WHEEL WELL Under Floor / From: HA000001 / To: HA999999	-	1	Enquire
<45027	LR100209	COVER - SPARE WHEEL WELL	LR100209 COVER - SPARE WHEEL WELL Under Floor / From: JA000001	-	1	Enquire
<47296	LR038041	BRACKET - SPARE WHEEL CARRIER	LR038041 BRACKET - SPARE WHEEL CARRIER RH / To: JA411208	-	1	Enquire
<47296	LR038042	BRACKET - SPARE WHEEL CARRIER	LR038042 BRACKET - SPARE WHEEL CARRIER LH	-	1	Enquire
<47296	LR112512	BRACKET - SPARE WHEEL CARRIER	LR112512 BRACKET - SPARE WHEEL CARRIER RH / From: JA411209	-	1	Enquire
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM	-	4	Enquire
HC1	LR035841	CLIP - TRIM - PILLARS	LR035841 CLIP - TRIM - PILLARS Clip Lantern 7.1 X 1.5 - 3 + 2.2	-	4	Enquire
HM1	LR005541	RIVET - PLASTIC	LR005541 RIVET - PLASTIC Rivet Push Pin 7 X 3-4.5	-	6	Enquire
HM2	RZM500070	PIN - SPECIAL	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin / From: EA309010	-	4	Enquire
HN1	FN110046	NUT - HEX.	FN110046 NUT - HEX. M10	-	4	Enquire
HN2	FN106046	NUT - HEX.	FN106046 NUT - HEX. For Spare Wheel, Hexagonal Head, M6, Side, Support Bracket	-	2	Enquire
