Find Your Part

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010694	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034108	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011954	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045390	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061705	WIRE - SOLENOID	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010694	BOLT	LR010694 BOLT Camshaft, M8, Sprocket - Drive	-	12	Enquire
HR1	LR034108	O-RING	LR034108 O-RING Solenoid - Engine Variable Timing, Wiring Connector	-	4	Enquire
HS1	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Solenoid - Engine Variable Timing	-	8	Enquire
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF	-	1	Enquire
6L713	LR045390	SOLENOID - ENGINE VARIABLE TIMING	LR045390 SOLENOID - ENGINE VARIABLE TIMING	-	4	Enquire
9A451	LR061705	WIRE - SOLENOID	LR061705 WIRE - SOLENOID Service Repair Links, Solenoid - Engine Variable Timing	-	4	Enquire
6256A	LR048776	SPROCKET - CAMSHAFT	LR048776 SPROCKET - CAMSHAFT Inlet / To: EA369318	-	2	Enquire
6256A	LR060395	SPROCKET - CAMSHAFT	LR060395 SPROCKET - CAMSHAFT Inlet / From: EA369319	-	2	Enquire
6256B	LR048777	SPROCKET - CAMSHAFT	LR048777 SPROCKET - CAMSHAFT Exhaust / To: EA369318	-	2	Enquire
6256B	LR060396	SPROCKET - CAMSHAFT	LR060396 SPROCKET - CAMSHAFT Exhaust / From: EA369319	-	2	Enquire
6306	LR010884	GEAR - CRANKSHAFT	LR010884 GEAR - CRANKSHAFT To: EA999999	-	1	Enquire
6306	LR072638	GEAR - CRANKSHAFT	LR072638 GEAR - CRANKSHAFT From: FA000001	-	1	Enquire
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive	-	2	Enquire
6643	LR011954	O-RING	LR011954 O-RING Solenoid - Engine Variable Timing	-	4	Enquire

Haven't found what you're looking for?

View Cart / Checkout

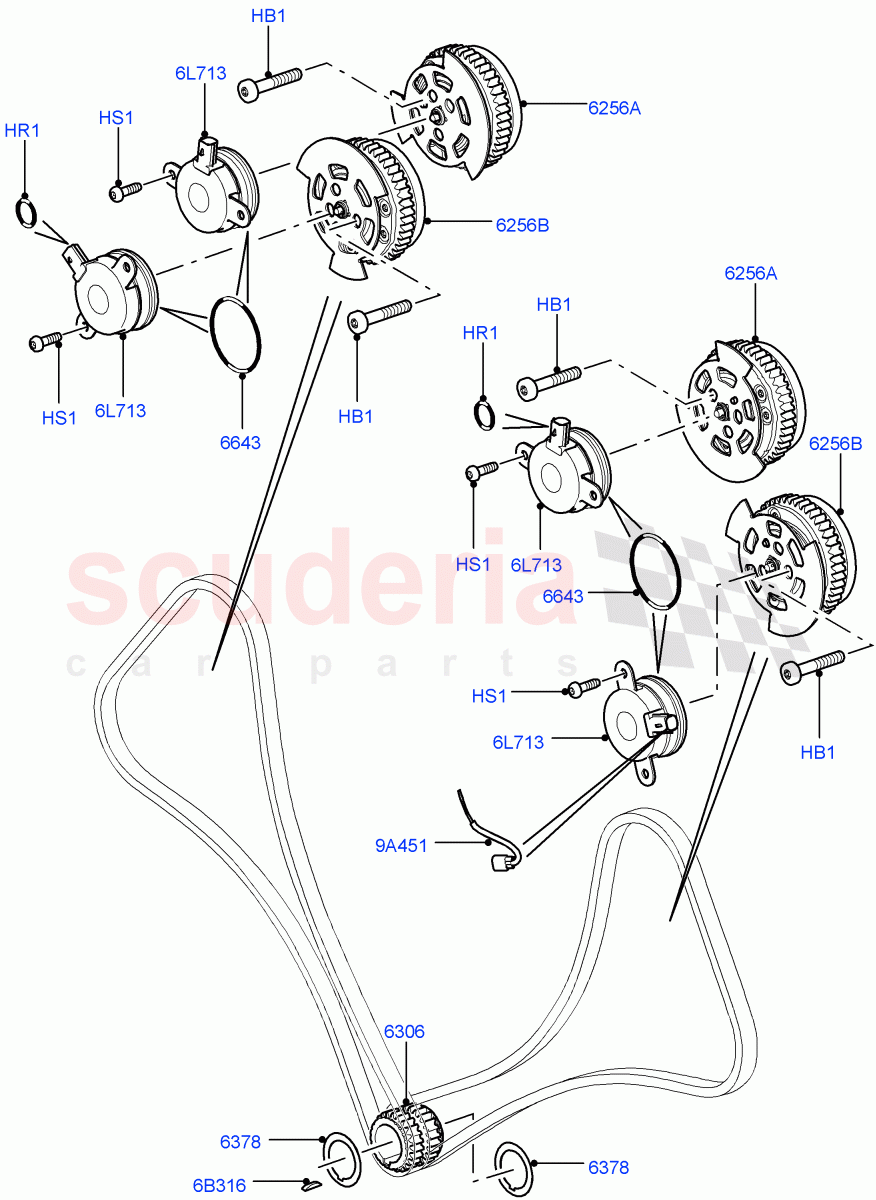

Timing Gear (Sprockets, Solenoids) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, 5.0 Petrol Aj133 Dohc Cda,...

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]
