Supercharger (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Supercharger (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA...

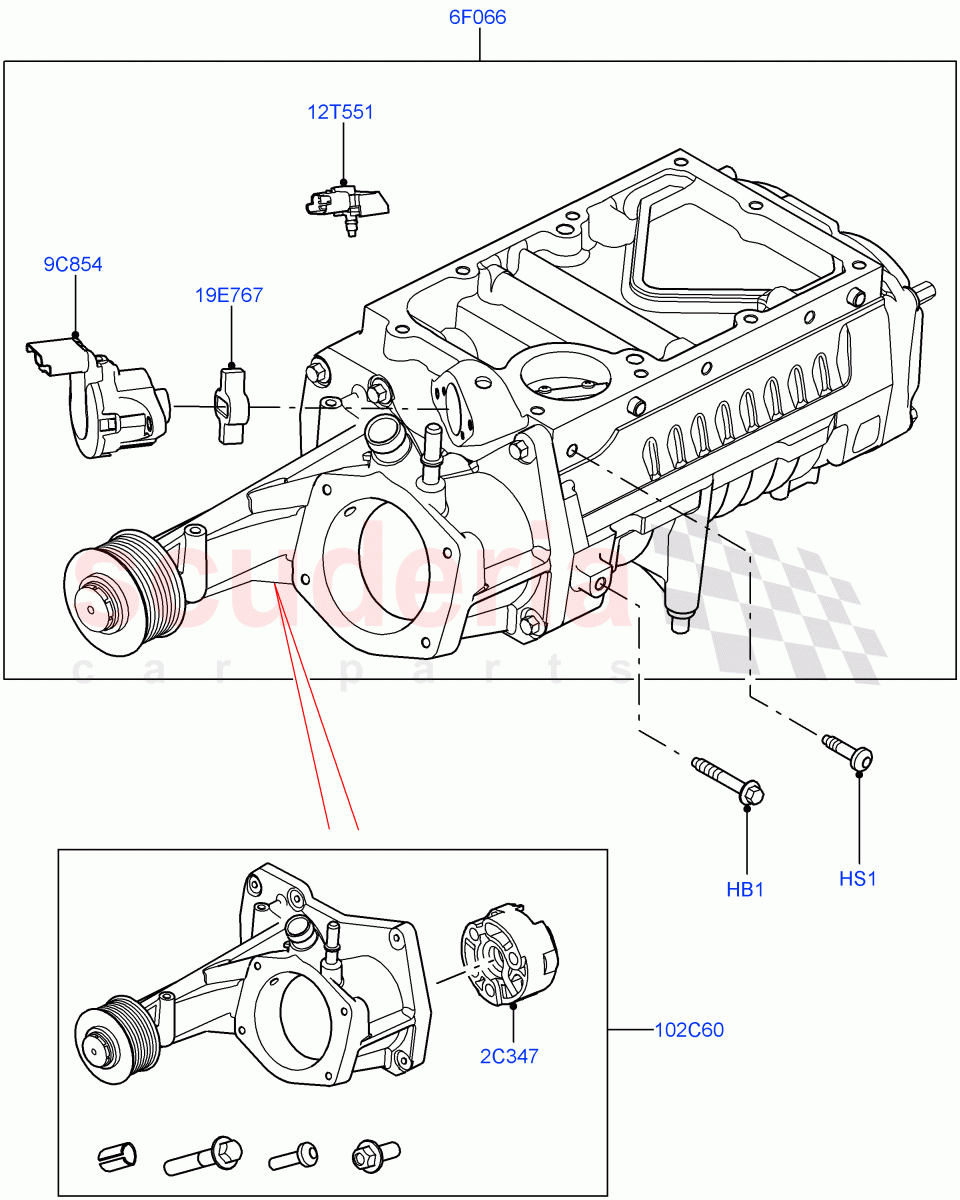

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160736	ISOLATOR	Enquire	To Order
	LR160735	ISOLATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036194	SUPERCHARGER	Enquire	To Order
	LR065512	SUPERCHARGER	Enquire	To Order
	LR082688	SUPERCHARGER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR035539	ACTUATOR - SUPERCHARGER BYPASS	Enquire	To Order
	LR087235	ACTUATOR - SUPERCHARGER BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058083	KIT - SUPERCHARGER	Enquire	To Order
	LR088513	KIT - SUPERCHARGER	Enquire	To Order
	LR088514	KIT - SUPERCHARGER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066147	COUPLING - BYPASS ACTUATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Supercharger	-	2	Enquire
HS1	LR010917	SCREW	LR010917 SCREW M8 x 30MM, Manifold To Supercharger	-	6	Enquire
2C347	LR160736	ISOLATOR	LR160736 ISOLATOR 49.38 mm Isolator Diameter. Please Check Before Ordering.	-	1	Enquire
2C347	LR160735	ISOLATOR	LR160735 ISOLATOR 45.0 mm Isolator Diameter. Please Check Before Ordering.	-	1	Enquire
6F066	LR036194	SUPERCHARGER	LR036194 SUPERCHARGER To: EA500152	-	1	Enquire
6F066	LR065512	SUPERCHARGER	LR065512 SUPERCHARGER From: EA500153 / To: GA581039	-	1	Enquire
6F066	LR082688	SUPERCHARGER	LR082688 SUPERCHARGER From: GA581040 / To: GA595085	-	1	Enquire
6F066	LR088998	SUPERCHARGER	LR088998 SUPERCHARGER From: GA595086 / To: HA999999	-	1	Enquire
6F066	LR100572	SUPERCHARGER	LR100572 SUPERCHARGER 5.0L P AJ133 DOHC CDA S/C Enhanced / From: JA000001	-	1	Enquire
6F066	LR088998	SUPERCHARGER	LR088998 SUPERCHARGER 5.0 Petrol AJ133 DOHC CDA / From: JA000001	-	1	Enquire
9C854	LR035539	ACTUATOR - SUPERCHARGER BYPASS	LR035539 ACTUATOR - SUPERCHARGER BYPASS Electric / To: GA593975	-	1	Enquire
9C854	LR087235	ACTUATOR - SUPERCHARGER BYPASS	LR087235 ACTUATOR - SUPERCHARGER BYPASS Electric / From: GA593976	-	1	Enquire
12T551	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: EA300000	-	1	Enquire
12T551	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EA300001	-	1	Enquire
19E767	LR066147	COUPLING - BYPASS ACTUATOR	LR066147 COUPLING - BYPASS ACTUATOR Supercharger Bypass Solenoid	-	1	Enquire
102C60	LR058083	KIT - SUPERCHARGER	LR058083 KIT - SUPERCHARGER 45.0 mm Isolator Diameter. Please Check Before Ordering., Front End, Please Consider Repair Using LR160735 Before Ordering LR058083, With Fixing Parts / To: GA597672	-	1	Enquire
102C60	LR088513	KIT - SUPERCHARGER	LR088513 KIT - SUPERCHARGER 45.0 mm Isolator Diameter. Please Check Before Ordering., Front End, Please Consider Repair Using LR160735 Before Ordering LR088513, With Fixing Parts / From: GA597673 / To: HA999999	-	1	Enquire
102C60	LR088514	KIT - SUPERCHARGER	LR088514 KIT - SUPERCHARGER 49.38 mm Isolator Diameter. Please Check Before Ordering., Front End, Please Consider Repair Using LR160736 Before Ordering LR088514, With Fixing Parts / From: EA000001 / To: HA999999	-	1	Enquire
102C60	LR088514	KIT - SUPERCHARGER	LR088514 KIT - SUPERCHARGER 5.0 Petrol AJ133 DOHC CDA / Front End, Please Consider Repair Using LR160736 Before Ordering LR088514, With Fixing Parts / From: JA000001	-	1	Enquire
