Vacuum Control And Air Injection (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, Rhd)

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133, RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE $2.63 To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE $2.27 To Order
Photo Part No Description Price (each) Stock
LR011273 SCREW $3.39 IN STOCK
LR060479 SCREW $4.15 To Order
Photo Part No Description Price (each) Stock
LR010690 PUMP - VACUUM $587.85 To Order
LR048796 PUMP - VACUUM $446.75 To Order
LR082226 PUMP - VACUUM $448.18 To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP $19.94 To Order
Photo Part No Description Price (each) Stock
LR011982 VALVE - VACUUM CONTROL $157.85 To Order
Photo Part No Description Price (each) Stock
LR048194 HOSE - VACUUM $54.39 IN STOCK
Photo Part No Description Price (each) Stock
LR048193 HOSE - VACUUM $77.74 To Order
Photo Part No Description Price (each) Stock
LR048192 HOSE - VACUUM $40.56 To Order
Photo Part No Description Price (each) Stock
LR088580 HOSE - VACUUM $108.11 To Order
LR088580 HOSE - VACUUM $108.11 To Order
Photo Part No Description Price (each) Stock
LR048197 HOSE - VACUUM $156.76 To Order
LR067249 HOSE - VACUUM $57.90 To Order
View All

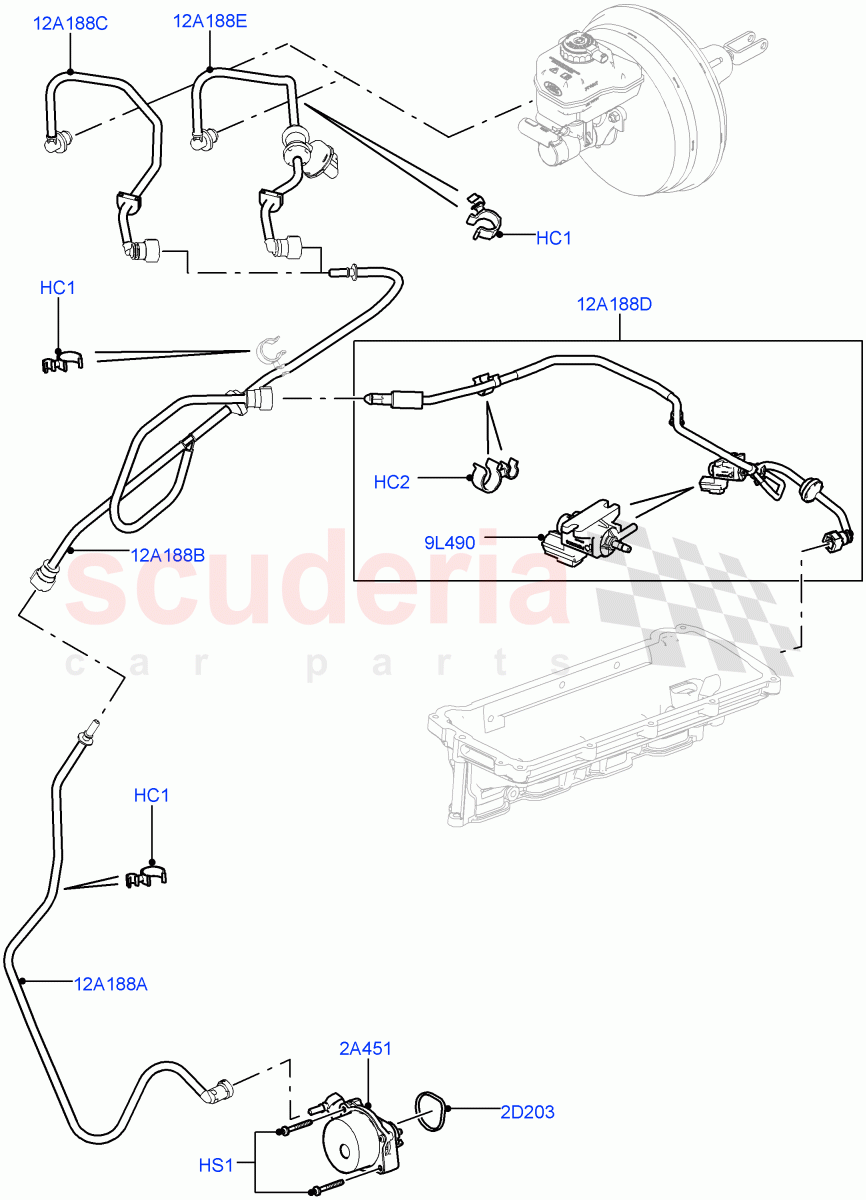

Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133, RHD) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose 		$2.63 3
HC2 LR049401
CLIP - DOUBLE
Double, To Vacuum Hose 		$2.27 2
HS1 LR011273
SCREW
M6 X 45MM, Pump - Vacuum / To: EA999999
IN STOCK 		$3.39 2
HS1 LR060479
SCREW
M6 X 65MM, Pump - Vacuum / From: FA000001 		$4.15 2
2A451 LR010690
PUMP - VACUUM
To: EA333332 		$587.85 1
2A451 LR048796
PUMP - VACUUM
From: EA333333 / To: EA999999 		$446.75 1
2A451 LR082226
PUMP - VACUUM
From: FA000001 		$448.18 1
2D203 LR012685
SEAL - VACUUM PUMP 		$19.94 1
9L490 LR011982
VALVE - VACUUM CONTROL
Symposer (Resonator) 		$157.85 1
12A188A LR048194
HOSE - VACUUM
Pump - Vacuum
IN STOCK 		$54.39 1
12A188B LR048193
HOSE - VACUUM
Centre 		$77.74 1
12A188C LR048192
HOSE - VACUUM
Standard Electric Starter Motor / To Brake Booster 		$40.56 1
12A188D LR088580
HOSE - VACUUM
To Symposer / To: EA300002 		$108.11 1
12A188D LR088580
HOSE - VACUUM
To Symposer / From: EA300003 		$108.11 1
12A188E LR048197
HOSE - VACUUM
Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / To: EA389110 		$156.76 1
12A188E LR067249
HOSE - VACUUM
Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: EA389111 		$57.90 1
