Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA...

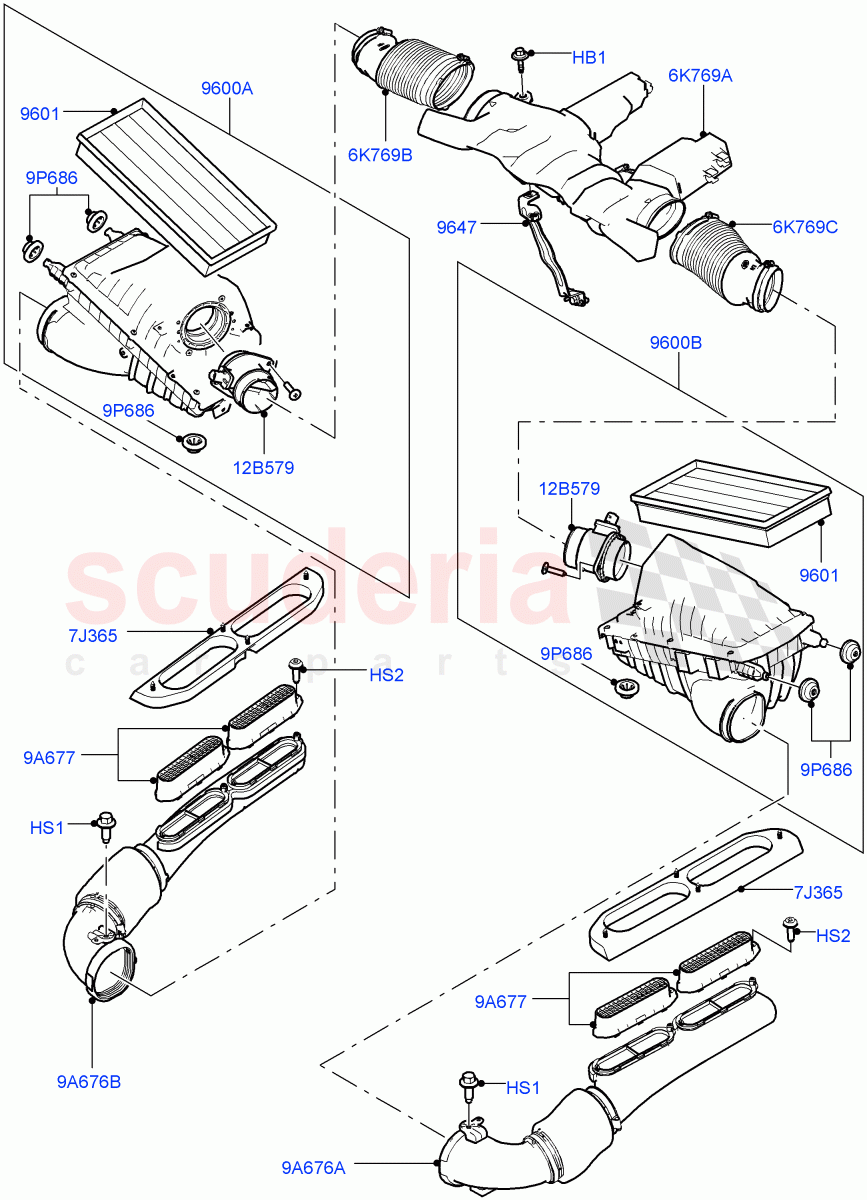

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014311	BRACKET - AIR DUCT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111065	GUIDE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036423	CLEANER - AIR	Enquire	To Order
	LR071028	CLEANER - AIR	Enquire	To Order
	LR095831	CLEANER - AIR	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036424	CLEANER - AIR	Enquire	To Order
	LR071030	CLEANER - AIR	Enquire	To Order
	LR095547	ELEMENT - AIR CLEANER	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036450	GRILLE - DIRTY AIR DUCT	Enquire	To Order
	LR113348	GRILLE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035727	SENSOR - MASS AIR FLOW	Enquire	To Order
	LR071914	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041246	DUCT - AIR	Enquire	To Order
	LR041246	DUCT - AIR	Enquire	To Order
	LR103588	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036433	DUCT - AIR	Enquire	To Order
	LR036433	DUCT - AIR	Enquire	To Order
	LR100451	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036442	DUCT - AIR	Enquire	To Order
	LR103573	DUCT - AIR INTAKE	Enquire	To Order
	LR036442	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045407	DUCT - DIRTY AIR	Enquire	To Order
	LR049314	MOULDING - SNOW INGRESS PROTECTOR	Enquire	To Order
	LR100435	DUCT - DIRTY AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045408	DUCT - DIRTY AIR	Enquire	To Order
	LR049313	DUCT - DIRTY AIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Bracket, Hexagonal Head, M6 X 24MM	-	1	Enquire
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	-	4	Enquire
HS2	LR008793	SCREW	LR008793 SCREW M5 X 16MM, Torx	-	4	Enquire
6K769A	LR041246	DUCT - AIR	LR041246 DUCT - AIR Air Cleaner To Throttle Body, Centre / To: JA999999	-	1	Enquire
6K769A	LR041246	DUCT - AIR	LR041246 DUCT - AIR 5.0 Petrol AJ133 DOHC CDA / Air Cleaner To Throttle Body, Centre / From: KA000001	-	1	Enquire
6K769A	LR103588	DUCT - AIR	LR103588 DUCT - AIR 5.0L P AJ133 DOHC CDA S/C Enhanced / Air Cleaner To Throttle Body, Centre / From: KA000001	-	1	Enquire
6K769B	LR036433	DUCT - AIR	LR036433 DUCT - AIR RH, Air Cleaner To Throttle Body / To: JA999999	-	1	Enquire
6K769B	LR036433	DUCT - AIR	LR036433 DUCT - AIR 5.0 Petrol AJ133 DOHC CDA / RH, Air Cleaner To Throttle Body / From: KA000001	-	1	Enquire
6K769B	LR100451	DUCT - AIR	LR100451 DUCT - AIR 5.0L P AJ133 DOHC CDA S/C Enhanced / RH, Air Cleaner To Throttle Body / From: KA000001	-	1	Enquire
6K769C	LR036442	DUCT - AIR	LR036442 DUCT - AIR LH, Air Cleaner To Throttle Body / To: JA999999	-	1	Enquire
6K769C	LR103573	DUCT - AIR INTAKE	LR103573 DUCT - AIR INTAKE 5.0L P AJ133 DOHC CDA S/C Enhanced / LH, Air Cleaner To Throttle Body / From: KA000001	-	1	Enquire
6K769C	LR036442	DUCT - AIR	LR036442 DUCT - AIR 5.0 Petrol AJ133 DOHC CDA / LH, Air Cleaner To Throttle Body / From: KA000001	-	1	Enquire
7J365	LR111065	GUIDE - DIRTY AIR DUCT	LR111065 GUIDE - DIRTY AIR DUCT Dirty Air Duct, Mounted To Hood	-	2	Enquire
9A676A	LR045407	DUCT - DIRTY AIR	LR045407 DUCT - DIRTY AIR LH / To: EA307720	-	1	Enquire
9A676A	LR049314	MOULDING - SNOW INGRESS PROTECTOR	LR049314 MOULDING - SNOW INGRESS PROTECTOR LH / From: EA307721 / To: HA164344	-	1	Enquire
9A676A	LR100435	DUCT - DIRTY AIR	LR100435 DUCT - DIRTY AIR LH / From: HA164345	-	1	Enquire
9A676B	LR045408	DUCT - DIRTY AIR	LR045408 DUCT - DIRTY AIR RH / To: EA307720	-	1	Enquire
9A676B	LR049313	DUCT - DIRTY AIR	LR049313 DUCT - DIRTY AIR RH / From: EA307721	-	1	Enquire
9A677	LR036450	GRILLE - DIRTY AIR DUCT	LR036450 GRILLE - DIRTY AIR DUCT To: HA999999	-	4	Enquire
9A677	LR113348	GRILLE - DIRTY AIR DUCT	LR113348 GRILLE - DIRTY AIR DUCT From: JA000001	-	4	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown	-	6	Enquire
12B579	LR035727	SENSOR - MASS AIR FLOW	LR035727 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / To: FA999999	-	2	Enquire
12B579	LR071914	SENSOR - MASS AIR FLOW	LR071914 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: GA000001	-	2	Enquire
9600A	LR036423	CLEANER - AIR	LR036423 CLEANER - AIR RH / To: FA665897	-	1	Enquire
9600A	LR071028	CLEANER - AIR	LR071028 CLEANER - AIR RH / From: GA000001 / To: GA999999	-	1	Enquire
9600A	LR095831	CLEANER - AIR	LR095831 CLEANER - AIR RH / From: FA665898 / To: FA999999	-	1	Enquire
9600A	LR104080	CLEANER - AIR	LR104080 CLEANER - AIR 5.0L P AJ133 DOHC CDA S/C Enhanced / RH / From: JA000001 / To: JA999999	-	1	Enquire
9600A	LR095792	CLEANER - AIR	LR095792 CLEANER - AIR RH / From: HA000001 / To: HA999999	-	1	Enquire
9600A	LR095792	CLEANER - AIR	LR095792 CLEANER - AIR 5.0 Petrol AJ133 DOHC CDA, Air Cleaner-Dry/Single Stage, Non H/C Trap Emissions / RH / From: JA000001	-	1	Enquire
9600A	LR100449	CLEANER - AIR	LR100449 CLEANER - AIR 5.0 Petrol AJ133 DOHC CDA, Air Cleaner S/S With H/C Trap, ULEV 125 Emission / RH / From: JA000001	-	1	Enquire
9600A	LR117316	CLEANER - AIR	LR117316 CLEANER - AIR 5.0L P AJ133 DOHC CDA S/C Enhanced / RH / From: KA000001 / To: LA726377	-	1	Enquire
9600A	LR140448	CLEANER - AIR	LR140448 CLEANER - AIR 5.0L P AJ133 DOHC CDA S/C Enhanced / RH / From: LA726378	-	1	Enquire
9600B	LR036424	CLEANER - AIR	LR036424 CLEANER - AIR LH / To: FA539206	-	1	Enquire
9600B	LR071030	CLEANER - AIR	LR071030 CLEANER - AIR LH / From: GA000001 / To: HA149084	-	1	Enquire
9600B	LR095547	ELEMENT - AIR CLEANER	LR095547 ELEMENT - AIR CLEANER LH / From: FA539207 / To: FA999999	-	1	Enquire
9600B	LR104081	CLEANER - AIR	LR104081 CLEANER - AIR 5.0L P AJ133 DOHC CDA S/C Enhanced / LH / From: JA000001 / To: JA999999	-	1	Enquire
9600B	LR095545	CLEANER - AIR	LR095545 CLEANER - AIR LH / From: HA149085 / To: HA999999	-	1	Enquire
9600B	LR095545	CLEANER - AIR	LR095545 CLEANER - AIR 5.0 Petrol AJ133 DOHC CDA, Air Cleaner-Dry/Single Stage, Non H/C Trap Emissions / LH / From: JA000001	-	1	Enquire
9600B	LR100450	CLEANER - AIR	LR100450 CLEANER - AIR 5.0 Petrol AJ133 DOHC CDA, Air Cleaner S/S With H/C Trap, SULEV Requirements / LH / From: JA000001	-	1	Enquire
9600B	LR117321	ELEMENT - AIR CLEANER	LR117321 ELEMENT - AIR CLEANER 5.0L P AJ133 DOHC CDA S/C Enhanced / LH / From: KA000001 / To: LA726377	-	1	Enquire
9600B	LR140449	ELEMENT - AIR CLEANER	LR140449 ELEMENT - AIR CLEANER 5.0L P AJ133 DOHC CDA S/C Enhanced / LH / From: LA726378	-	1	Enquire
9601	LR161843	FILTER - AIR CLEANER	LR161843 FILTER - AIR CLEANER	-	2	Enquire
9647	LR014311	BRACKET - AIR DUCT SUPPORT	LR014311 BRACKET - AIR DUCT SUPPORT Air Duct Support	-	1	Enquire
