Luggage Compartment Door (Door And Fixings)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Luggage Compartment Door (Door And Fixings)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR044885 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR038192 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
BYH500060 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR012710 PLUG - BODY SEALING Enquire To Order
Photo Part No Description Price (each) Stock
RYG501160 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001777 BUMPER - TAILGATE Enquire To Order
Photo Part No Description Price (each) Stock
LR044396 TAILGATE - LESS HINGES Enquire To Order
LR055919 TAILGATE - LESS HINGES Enquire To Order
LR079300 TAILGATE - LESS HINGES Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044398 HINGE - TAILGATE Enquire To Order
LR044399 HINGE - TAILGATE Enquire To Order
LR088983 HINGE - TAILGATE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098606 BRACKET - TAILGATE Enquire To Order
Photo Part No Description Price (each) Stock
LR044158 LIFT - GAS Enquire To Order
LR062122 LIFT - GAS Enquire To Order
LR062122 LIFT - GAS Enquire To Order
Photo Part No Description Price (each) Stock
LR044161 LIFT - TAILGATE - ELECTRIC Enquire To Order
LR104909 LIFT - TAILGATE - ELECTRIC Enquire To Order
LR126173 LIFT - TAILGATE - ELECTRIC Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL Enquire To Order
LR068275 STUD - BALL Enquire To Order
View All

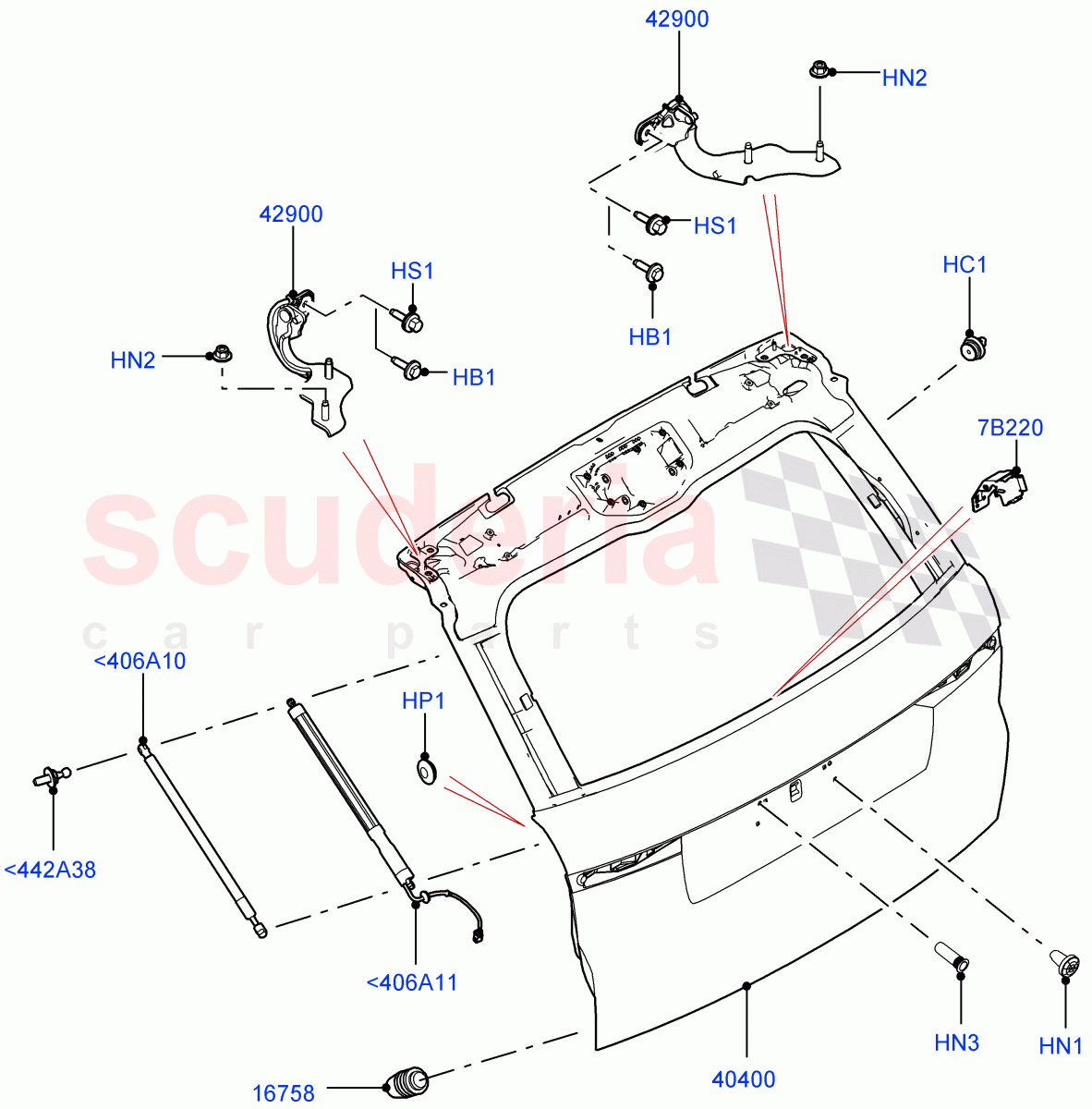

Luggage Compartment Door (Door And Fixings) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<406A10 LR044158
LIFT - GAS
Tailgate - Manual One Piece / To: EA346046 		- 2 Enquire
<406A10 LR062122
LIFT - GAS
Tailgate - Manual One Piece / From: EA346047 / To: JA999999 		- 2 Enquire
<406A10 LR062122
LIFT - GAS
With Conventional Tailgate / From: KA000001 		- 2 Enquire
<406A11 LR044161
LIFT - TAILGATE - ELECTRIC
Tailgate - Powered One Piece / To: HA147874 		- 2 Enquire
<406A11 LR104909
LIFT - TAILGATE - ELECTRIC
Tailgate-Powered Upper / From: HA147875 / To: KA425046 		- 2 Enquire
<406A11 LR126173
LIFT - TAILGATE - ELECTRIC
Tailgate-Powered Upper / From: KA425047 / To: MA789815 		- 2 Enquire
<406A11 LR165919
LIFT - TAILGATE - ELECTRIC
Tailgate - Powered One Piece / From: NA209995 		- 2 Enquire
<406A11 LR159597
LIFT - TAILGATE - ELECTRIC
Tailgate-Powered Upper / From: MA789816 / To: NA209994 		- 2 Enquire
<442A38 LR138284
STUD - BALL
Strut / To: GA106179 		- 2 Enquire
<442A38 LR068275
STUD - BALL
M8 x 19MM, Strut / From: GA106180 		- 2 Enquire
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, Hinge, M8 X 30MM / To: GA999999 		- 4 Enquire
HC1 LR044885
CLIP
Clip Lantern 8.2 X 1.2 + 2.5 Plastic, Panel - Tailgate Trim 		- 4 Enquire
HN1 LR038192
NUT - SPECIAL
Rr Number Plate Plinth - Australia / M6 x 29MM 		- 2 Enquire
HN2 BYH500060
NUT - FLANGED
M8, Nut And Washer 		- 4 Enquire
HN3 RYH500840
NUT
Rear Number Plate Plinth - NAS / M4, Plastic Nut 		- 2 Enquire
HP1 LR012710
PLUG - BODY SEALING
Tailgate - Manual One Piece / 		- 2 Enquire
HS1 RYG501160
SCREW
Bolt And Washer, Hexagonal Head, M8X25 / From: HA000001 		- 4 Enquire
7B220 LR098606
BRACKET - TAILGATE
Vehicle Access-Leisure Activity Key / From: JA000001 		- 1 Enquire
16758 LR001777
BUMPER - TAILGATE 		- 2 Enquire
40400 LR044396
TAILGATE - LESS HINGES
Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2, Category B / To: EA308262 		- 1 Enquire
40400 LR055919
TAILGATE - LESS HINGES
Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2, Category B / From: EA308263 / To: EA999999 		- 1 Enquire
40400 LR079300
TAILGATE - LESS HINGES
Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2, Category B / From: FA000001 / To: FA999999 		- 1 Enquire
40400 LR071406
TAILGATE - LESS HINGES
Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2, Category B / From: JA000001 / To: JA196840 		- 1 Enquire
40400 LR113833
TAILGATE - LESS HINGES
Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2, Category B / From: JA196841 		- 1 Enquire
40400 LR071406
TAILGATE - LESS HINGES
Before Ordering A Tailgate, Please Refer To Topix - TSB Bulletin LTB01093v2, Category B / From: GA000001 / To: HA999999 		- 1 Enquire
42900 LR044398
HINGE - TAILGATE
RH, With Earthing Cable / To: GA658469 		- 1 Enquire
42900 LR044399
HINGE - TAILGATE
LH, With Earthing Cable / To: GA658469 		- 1 Enquire
42900 LR088983
HINGE - TAILGATE
RH / From: GA658470 		- 1 Enquire
42900 LR088984
HINGE - TAILGATE
LH / From: GA658470 		- 1 Enquire
