View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023004	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022847	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022848	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022955	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023102	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022960	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418838	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022961	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022958	GUIDE - TIMING CHAIN	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
6K255	LR022955	ARM - TIMING CHAIN TENSIONER	LR022955 ARM - TIMING CHAIN TENSIONER RH	-	1	Enquire
6K297A	LR022961	GUIDE - TIMING CHAIN	LR022961 GUIDE - TIMING CHAIN LH, Timing Chain	-	1	Enquire
6K297B	LR022958	GUIDE - TIMING CHAIN	LR022958 GUIDE - TIMING CHAIN RH, Timing Chain	-	1	Enquire
6L253	LR023102	ARM - TIMING CHAIN TENSIONER	LR023102 ARM - TIMING CHAIN TENSIONER LH	-	1	Enquire
6L266	LR022960	TENSIONER - TIMING CHAIN	LR022960 TENSIONER - TIMING CHAIN LH	-	1	Enquire
6U000	1418838	BOLT - SPECIAL	1418838 BOLT - SPECIAL M22	-	2	Enquire
6260A	LR022847	CHAIN - TIMING	LR022847 CHAIN - TIMING LH	-	1	Enquire
6260B	LR022848	CHAIN - TIMING	LR022848 CHAIN - TIMING RH	-	1	Enquire
6284	LR023004	TENSIONER - TIMING CHAIN	LR023004 TENSIONER - TIMING CHAIN RH	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

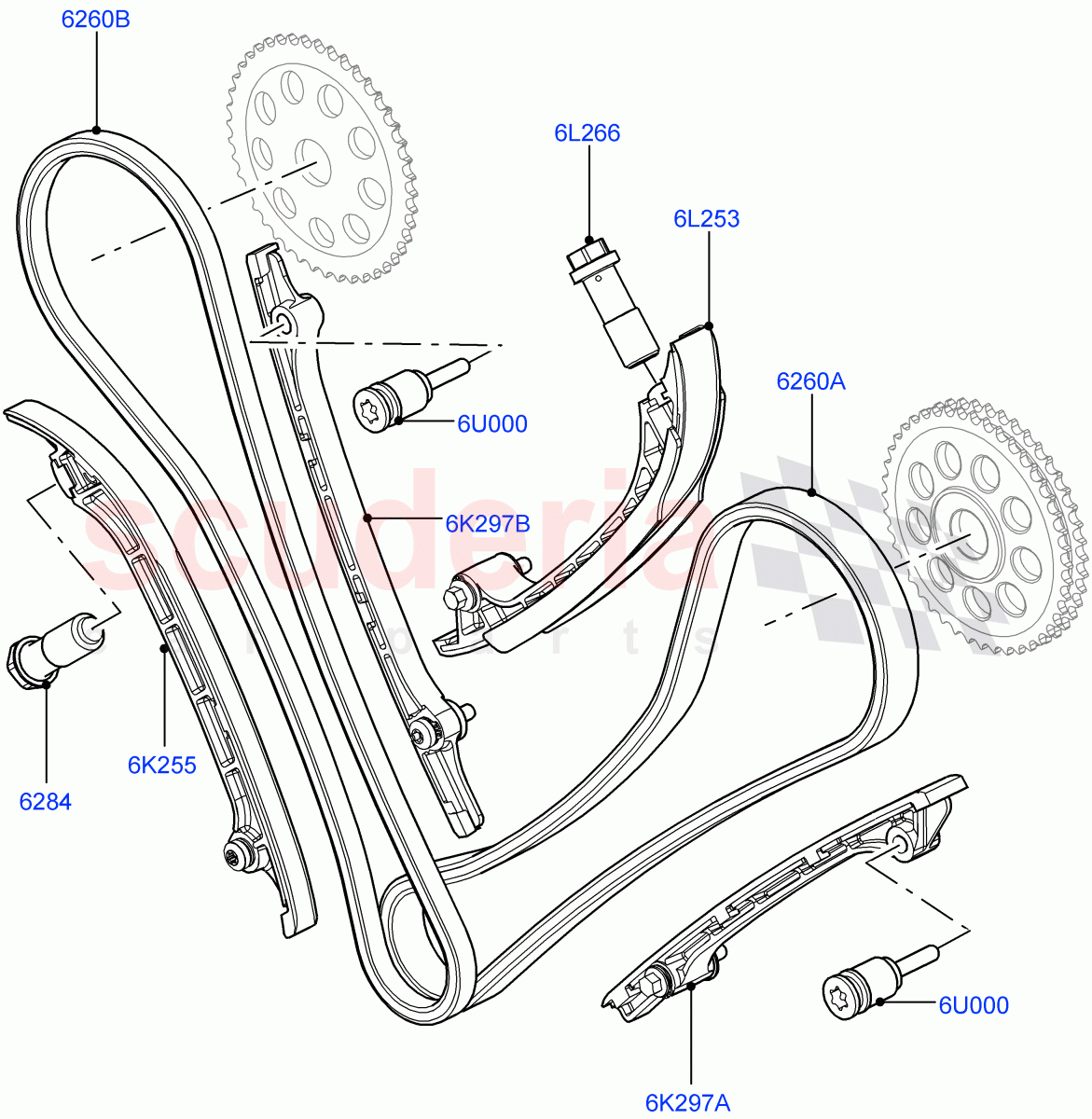

Timing Gear (Timing Chains, Tensioners) (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
