Air Cleaner (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Air Cleaner (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023238 CLAMP - HOSE $17.56 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
KYP500360 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.29 IN STOCK
Photo Part No Description Price (each) Stock
LR111065 GUIDE - DIRTY AIR DUCT $22.52 To Order
Photo Part No Description Price (each) Stock
LR036425 CLEANER - AIR $436.31 To Order
LR095795 CLEANER - AIR $422.37 To Order
Photo Part No Description Price (each) Stock
LR036426 CLEANER - AIR $436.31 To Order
LR095790 CLEANER - AIR $433.07 To Order
Photo Part No Description Price (each) Stock
LR036450 GRILLE - DIRTY AIR DUCT $10.94 To Order
LR113348 GRILLE - DIRTY AIR DUCT $10.94 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.74 IN STOCK
Photo Part No Description Price (each) Stock
LR029074 SENSOR - MASS AIR FLOW $418.05 To Order
Photo Part No Description Price (each) Stock
LR036471 DUCT - CLEAN AIR $88.46 To Order
Photo Part No Description Price (each) Stock
LR036469 DUCT - CLEAN AIR $164.00 To Order
Photo Part No Description Price (each) Stock
LR030209 DUCT - AIR INTAKE $94.44 To Order
Photo Part No Description Price (each) Stock
LR036468 DUCT - CLEAN AIR $88.46 To Order
Photo Part No Description Price (each) Stock
LR036467 DUCT - CLEAN AIR $104.60 To Order
Photo Part No Description Price (each) Stock
LR049314 MOULDING - SNOW INGRESS PROTECTOR $166.61 To Order
LR100435 DUCT - DIRTY AIR $136.03 To Order
Photo Part No Description Price (each) Stock
LR049313 DUCT - DIRTY AIR $181.44 To Order
View All

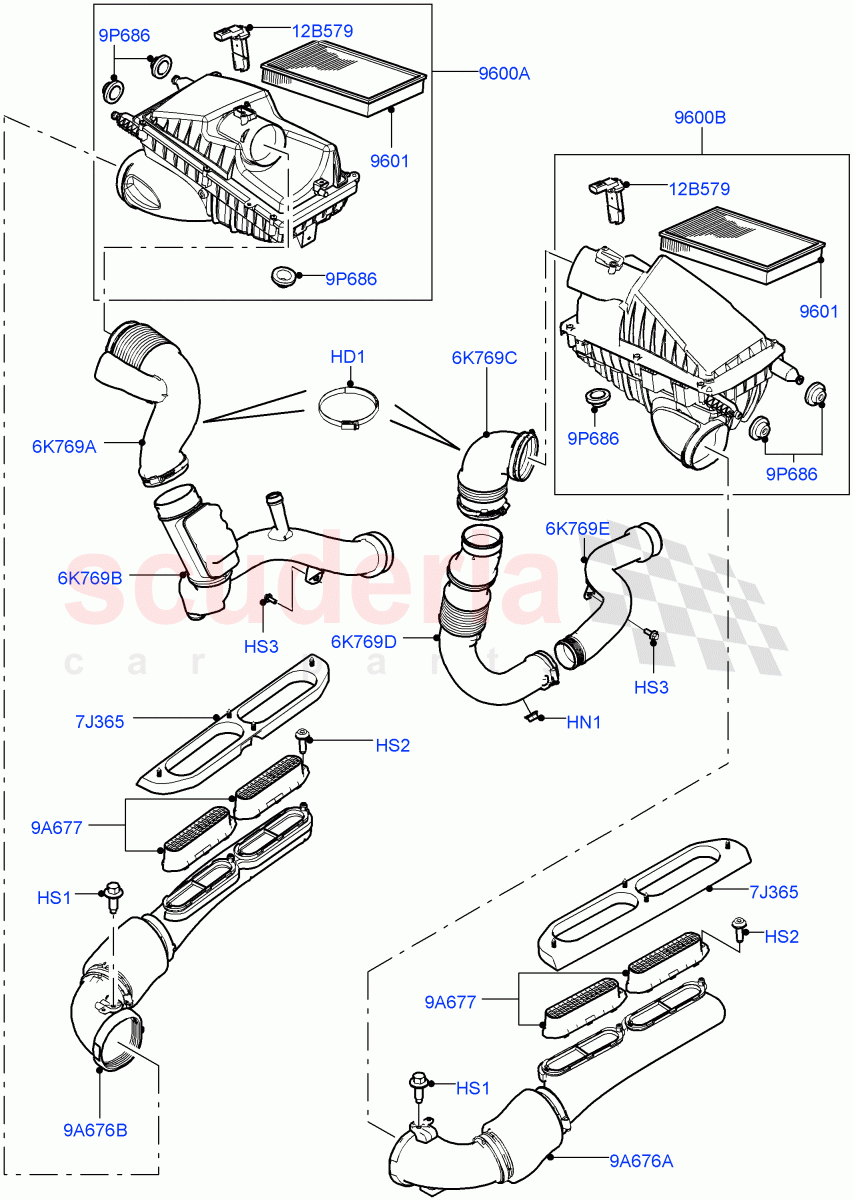

Air Cleaner (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HD1 LR023238
CLAMP - HOSE 		$17.56 4
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 1
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.59 4
HS2 LR008793
SCREW
M5 X 16MM, Torx 		$0.95 4
HS3 KYP500360
SCREW
Air Duct Support, M6 X 20MM 		$0.76 3
6K769A LR036471
DUCT - CLEAN AIR
Air Cleaner Outlet, Elbow Connector, RH Upper 		$88.46 1
6K769B LR036469
DUCT - CLEAN AIR
RH Lower, Turbocharger Inlet 		$164.00 1
6K769C LR030209
DUCT - AIR INTAKE
Air Cleaner Outlet, Elbow Connector, LH Upper 		$94.44 1
6K769D LR036468
DUCT - CLEAN AIR
LH, Air Cleaner To Turbocharger 		$88.46 1
6K769E LR036467
DUCT - CLEAN AIR
LH Lower, Turbocharger Inlet 		$104.60 1
7J365 LR111065
GUIDE - DIRTY AIR DUCT
Dirty Air Duct, Mounted To Hood 		$22.52 2
9A676A LR049314
MOULDING - SNOW INGRESS PROTECTOR
LH / To: HA164344 		$166.61 1
9A676A LR100435
DUCT - DIRTY AIR
LH / From: HA164345 		$136.03 1
9A676B LR049313
DUCT - DIRTY AIR
RH 		$181.44 1
9A677 LR036450
GRILLE - DIRTY AIR DUCT
To: HA999999 		$10.94 4
9A677 LR113348
GRILLE - DIRTY AIR DUCT
From: JA000001 		$10.94 4
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown
IN STOCK 		$4.74 6
12B579 LR029074
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		$418.05 2
9600A LR036425
CLEANER - AIR
RH / To: HA149084 		$436.31 1
9600A LR095795
CLEANER - AIR
RH / From: HA149085 		$422.37 1
9600B LR036426
CLEANER - AIR
LH / To: HA149084 		$436.31 1
9600B LR095790
CLEANER - AIR
LH / From: HA149085 		$433.07 1
9601 LR161843
FILTER - AIR CLEANER
IN STOCK 		$59.29 2
