Pulleys And Drive Belts (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Pulleys And Drive Belts (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110156 BOLT - HEX.HEAD Enquire IN STOCK
Photo Part No Description Price (each) Stock
FB108076 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire IN STOCK
Photo Part No Description Price (each) Stock
FS108122 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR023040 WASHER - CRANKSHAFT PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
LR022799 PULLEY - WATER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR036090 BELT - ACCESSORY DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR022752 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR022809 TENSIONER - DRIVE BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR022805 PULLEY - CRANKSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR022816 CAP - IDLER PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
LR022819 CAP - IDLER PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
LR025823 BRACKET - ALTERNATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR022953 PULLEY - IDLER Enquire IN STOCK
Photo Part No Description Price (each) Stock
LR025083 PULLEY - IDLER Enquire IN STOCK
View All

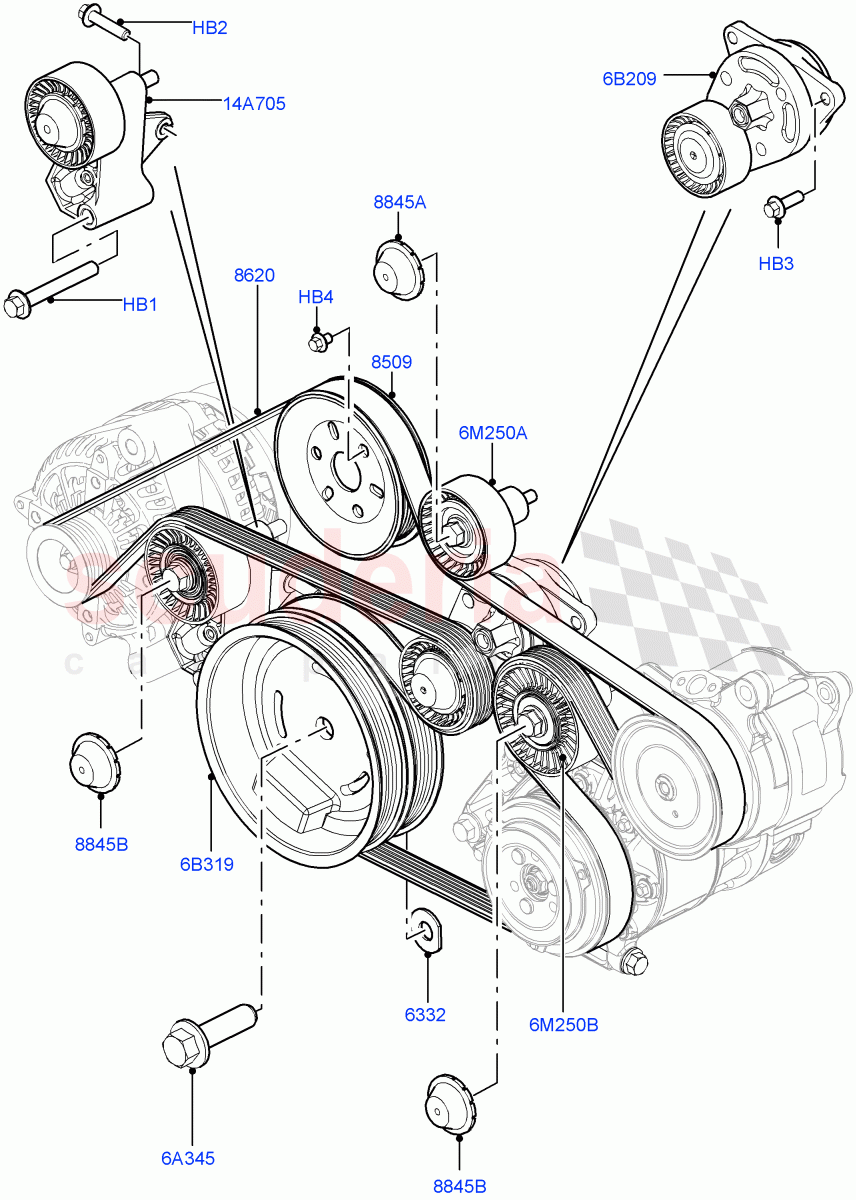

Pulleys And Drive Belts (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110156
BOLT - HEX.HEAD
Hexagonal Head, M10 x 75MM
IN STOCK 		- 1 Enquire
HB2 FB108076
BOLT
M8 X 35MM 		- 1 Enquire
HB3 FS108256
BOLT
Hexagonal Head, M8 X 25MM, Tensioner
IN STOCK 		- 2 Enquire
HB4 FS108122
BOLT - HEX.HEAD
M8 x 12MM, Pulley, Water Pump 		- 3 Enquire
6A345 LR022752
BOLT - HEX.HEAD
Pulley And Damper Assembly 		- 1 Enquire
6B209 LR022809
TENSIONER - DRIVE BELT 		- 1 Enquire
6B319 LR022805
PULLEY - CRANKSHAFT
Pulley And Damper Assembly 		- 1 Enquire
6M250A LR022953
PULLEY - IDLER
65MM
IN STOCK 		- 1 Enquire
6M250B LR025083
PULLEY - IDLER
80MM
IN STOCK 		- 1 Enquire
14A705 LR025823
BRACKET - ALTERNATOR
With Idler 		- 1 Enquire
6332 LR023040
WASHER - CRANKSHAFT PULLEY
Pulley - Crankshaft 		- 1 Enquire
8509 LR022799
PULLEY - WATER PUMP 		- 1 Enquire
8620 LR036090
BELT - ACCESSORY DRIVE
Accessory Drive 		- 1 Enquire
8845A LR022816
CAP - IDLER PULLEY
idler, Upper 		- 1 Enquire
8845B LR022819
CAP - IDLER PULLEY
idler, Lower 		- 2 Enquire
