Name: Electrical Wiring - Engine And Dash (Engine Compartment) ((V) TOEA999999)
Rating: 4.3 (1 reviews)

Electrical Wiring - Engine And Dash (Engine Compartment) ((V) TOEA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Electrical Wiring - Engine And Dash (Engine Compartment) ((V) TOEA999999)

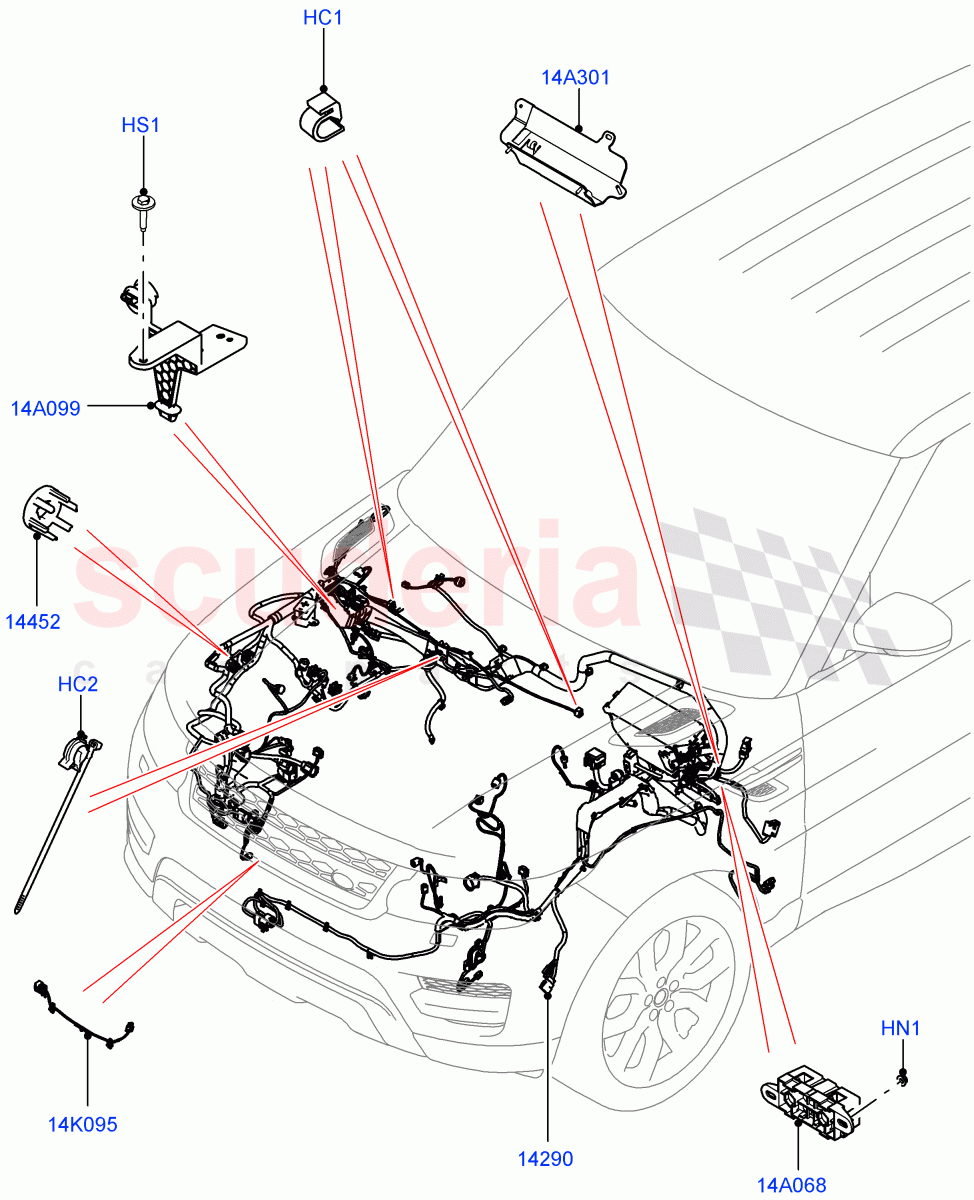

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYC500160	CLIP - SINGLE	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058088	CLIP	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050554	WIRING - ENGINE COMPARTMENT	$2,012.30	To Order
	LR050258	WIRING - ENGINE COMPARTMENT	$2,012.30	To Order
	LR050257	WIRING - ENGINE COMPARTMENT	$2,012.30	To Order

...and 81 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR050878	ROTATION STOPPER	$8.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050937	BOX - FUSE	$68.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042188	SHIELD - WIRING	$14.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086930	BRACKET - FUSE BOX	$41.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040613	WIRING - ACTIVE VANES	$34.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	DYC500160	CLIP - SINGLE	DYC500160 CLIP - SINGLE Connector, Heated Washer Jet	$1.62	2
HC2	LR058088	CLIP	LR058088 CLIP Wire / From: EA000001	$1.55	1
HN1	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 IN STOCK	$0.50	2
HS1	RYG500900	SCREW	RYG500900 SCREW With Ptc Heater / Bolt And Washer, Hexagonal Head, M6X30	$4.03	1
14A068	LR050937	BOX - FUSE	LR050937 BOX - FUSE Megafuse / To: EA999999	$68.05	1
14A099	LR042188	SHIELD - WIRING	LR042188 SHIELD - WIRING With Ptc Heater	$14.80	1
14A301	LR086930	BRACKET - FUSE BOX	LR086930 BRACKET - FUSE BOX LHD / For Fusebox	$41.30	1
14K095	LR040613	WIRING - ACTIVE VANES	LR040613 WIRING - ACTIVE VANES 3.0 V6 Diesel, Active Grilleshutter	$34.20	1
14290	LR050554	WIRING - ENGINE COMPARTMENT	LR050554 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050258	WIRING - ENGINE COMPARTMENT	LR050258 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, RHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050257	WIRING - ENGINE COMPARTMENT	LR050257 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050259	WIRING - ENGINE COMPARTMENT	LR050259 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, RHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050260	WIRING - ENGINE COMPARTMENT	LR050260 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Standard Electric Starter Motor, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050261	WIRING - ENGINE COMPARTMENT	LR050261 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Front Camera, RHD, Standard Electric Starter Motor, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050262	WIRING - ENGINE COMPARTMENT	LR050262 WIRING - ENGINE COMPARTMENT (+)"KOR", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Starter - Stop/Start System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050263	WIRING - ENGINE COMPARTMENT	LR050263 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Front Camera, RHD, Starter - Stop/Start System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050264	WIRING - ENGINE COMPARTMENT	LR050264 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Front Camera, Standard Electric Starter Motor, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050265	WIRING - ENGINE COMPARTMENT	LR050265 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Front Camera, RHD, Standard Electric Starter Motor, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050266	WIRING - ENGINE COMPARTMENT	LR050266 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Front Camera, Starter - Stop/Start System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050267	WIRING - ENGINE COMPARTMENT	LR050267 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Front Camera, RHD, Starter - Stop/Start System, With Continuous Variable Damping / To: EA308153	$2,527.42	1
14290	LR050268	WIRING - ENGINE COMPARTMENT	LR050268 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, Less Front Camera, RHD, Starter - Stop/Start System / To: EA308153	$2,012.30	1
14290	LR050269	WIRING - ENGINE COMPARTMENT	LR050269 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, Less Front Camera, RHD, Standard Electric Starter Motor / To: EA308153	$2,012.30	1
14290	LR050270	WIRING - ENGINE COMPARTMENT	LR050270 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, Less Front Camera, RHD, Starter - Stop/Start System / To: EA308153	$2,012.30	1
14290	LR050271	WIRING - ENGINE COMPARTMENT	LR050271 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, RHD, Starter - Stop/Start System, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050567	WIRING - ENGINE COMPARTMENT	LR050567 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, RHD, Standard Electric Starter Motor, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050272	WIRING - ENGINE COMPARTMENT	LR050272 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, RHD, Starter - Stop/Start System, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050273	WIRING - ENGINE COMPARTMENT	LR050273 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, LHD, Less Adaptive Damping, Less Front Camera, Standard Electric Starter Motor / To: EA308153	$2,012.30	1
14290	LR050274	WIRING - ENGINE COMPARTMENT	LR050274 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, Less Front Camera, RHD, Standard Electric Starter Motor / To: EA308153	$2,012.30	1
14290	LR050275	WIRING - ENGINE COMPARTMENT	LR050275 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, LHD, Less Adaptive Damping, Standard Electric Starter Motor, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050276	WIRING - ENGINE COMPARTMENT	LR050276 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, RHD, Standard Electric Starter Motor, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050277	WIRING - ENGINE COMPARTMENT	LR050277 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Adaptive Damping, Starter - Stop/Start System, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050278	WIRING - ENGINE COMPARTMENT	LR050278 WIRING - ENGINE COMPARTMENT (+)"KOR", 3.0L DOHC GDI SC V6 PETROL, LHD, Less Adaptive Damping, Starter - Stop/Start System, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050279	WIRING - ENGINE COMPARTMENT	LR050279 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Adaptive Damping, Standard Electric Starter Motor, Surround Camera System / To: EA308153	$2,012.30	1
14290	LR050280	WIRING - ENGINE COMPARTMENT	LR050280 WIRING - ENGINE COMPARTMENT (+)"KOR", 3.0L DOHC GDI SC V6 PETROL, LHD, Less Adaptive Damping, Less Front Camera, Starter - Stop/Start System / To: EA308153	$2,012.30	1
14290	LR050281	WIRING - ENGINE COMPARTMENT	LR050281 WIRING - ENGINE COMPARTMENT 3.0L 24V DOHC V6 TC Diesel, LHD, Less Adaptive Damping, Less Front Camera, Standard Electric Starter Motor / To: EA308153	$2,012.30	1
14290	LR050282	WIRING - ENGINE COMPARTMENT	LR050282 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Adaptive Damping, Less Front Camera, Starter - Stop/Start System / To: EA308153	$2,012.30	1
14290	LR050253	WIRING - ENGINE COMPARTMENT	LR050253 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050254	WIRING - ENGINE COMPARTMENT	LR050254 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, RHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050255	WIRING - ENGINE COMPARTMENT	LR050255 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR050256	WIRING - ENGINE COMPARTMENT	LR050256 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, RHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / To: EA308153	$2,012.30	1
14290	LR055012	WIRING - ENGINE COMPARTMENT	LR055012 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: EA308154	$3,606.43	1
14290	LR055013	WIRING - ENGINE COMPARTMENT	LR055013 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, RHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: EA308154	$3,726.69	1
14290	LR055002	WIRING - ENGINE COMPARTMENT	LR055002 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: EA308154	$3,536.75	1
14290	LR055014	WIRING - ENGINE COMPARTMENT	LR055014 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, RHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: EA308154	$6,552.49	1
14290	LR055030	WIRING - ENGINE COMPARTMENT	LR055030 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Standard Electric Starter Motor, With Continuous Variable Damping / From: EA308154	$3,798.79	1
14290	LR055031	WIRING - ENGINE COMPARTMENT	LR055031 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Front Camera, RHD, Standard Electric Starter Motor, With Continuous Variable Damping / From: EA308154	$3,702.68	1
14290	LR055032	WIRING - ENGINE COMPARTMENT	LR055032 WIRING - ENGINE COMPARTMENT (+)"KOR", 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Less Front Camera, Starter - Stop/Start System, With Continuous Variable Damping / From: EA308154	$3,785.60	1
14290	LR055033	WIRING - ENGINE COMPARTMENT	LR055033 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, Less Front Camera, RHD, Starter - Stop/Start System, With Continuous Variable Damping / From: EA308154	$3,484.46	1
14290	LR055034	WIRING - ENGINE COMPARTMENT	LR055034 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Front Camera, Standard Electric Starter Motor, With Continuous Variable Damping / From: EA308154	$3,785.60	1
14290	LR055035	WIRING - ENGINE COMPARTMENT	LR055035 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Front Camera, RHD, Standard Electric Starter Motor, With Continuous Variable Damping / From: EA308154	$3,785.60	1
14290	LR055036	WIRING - ENGINE COMPARTMENT	LR055036 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Front Camera, Starter - Stop/Start System, With Continuous Variable Damping / From: EA308154	$3,536.75	1
14290	LR055037	WIRING - ENGINE COMPARTMENT	LR055037 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Front Camera, RHD, Starter - Stop/Start System, With Continuous Variable Damping / From: EA308154	$3,726.69	1
14290	LR055038	WIRING - ENGINE COMPARTMENT	LR055038 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, Less Front Camera, RHD, Starter - Stop/Start System / From: EA308154	$3,665.36	1
14290	LR055039	WIRING - ENGINE COMPARTMENT	LR055039 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, Less Front Camera, RHD, Standard Electric Starter Motor / From: EA308154	$3,606.43	1
14290	LR055040	WIRING - ENGINE COMPARTMENT	LR055040 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, Less Front Camera, RHD, Starter - Stop/Start System / From: EA308154	$3,486.29	1
14290	LR055042	WIRING - ENGINE COMPARTMENT	LR055042 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, RHD, Starter - Stop/Start System, Surround Camera System / From: EA308154	$3,702.68	1
14290	LR055043	WIRING - ENGINE COMPARTMENT	LR055043 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, Less Adaptive Damping, RHD, Standard Electric Starter Motor, Surround Camera System / From: EA308154	$3,606.43	1
14290	LR055044	WIRING - ENGINE COMPARTMENT	LR055044 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, RHD, Starter - Stop/Start System, Surround Camera System / From: EA308154	$3,606.43	1
14290	LR055047	WIRING - ENGINE COMPARTMENT	LR055047 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, LHD, Less Adaptive Damping, Less Front Camera, Standard Electric Starter Motor / From: EA308154	$3,785.60	1
14290	LR055048	WIRING - ENGINE COMPARTMENT	LR055048 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, Less Front Camera, RHD, Standard Electric Starter Motor / From: EA308154	$3,726.69	1
14290	LR055051	WIRING - ENGINE COMPARTMENT	LR055051 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, LHD, Less Adaptive Damping, Standard Electric Starter Motor, Surround Camera System / From: EA308154	$3,785.60	1
14290	LR055052	WIRING - ENGINE COMPARTMENT	LR055052 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, Less Adaptive Damping, RHD, Standard Electric Starter Motor, Surround Camera System / From: EA308154	$3,654.58	1
14290	LR055059	WIRING - ENGINE COMPARTMENT	LR055059 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Adaptive Damping, Starter - Stop/Start System, Surround Camera System / From: EA308154	$3,713.48	1
14290	LR055060	WIRING - ENGINE COMPARTMENT	LR055060 WIRING - ENGINE COMPARTMENT (+)"KOR", 3.0L DOHC GDI SC V6 PETROL, Flex Fuel - E100, LHD, Less Adaptive Damping, Starter - Stop/Start System, Surround Camera System / From: EA308154	$6,552.49	1
14290	LR055061	WIRING - ENGINE COMPARTMENT	LR055061 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Adaptive Damping, Standard Electric Starter Motor, Surround Camera System / From: EA308154	$3,702.68	1
14290	LR055063	WIRING - ENGINE COMPARTMENT	LR055063 WIRING - ENGINE COMPARTMENT 3.0L 24V V6 Turbo Diesel Std Flow, LHD, Less Adaptive Damping, Less Camera System, Standard Electric Starter Motor / From: EA308154	$3,654.58	1
14290	LR055064	WIRING - ENGINE COMPARTMENT	LR055064 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel, LHD, Less Adaptive Damping, Less Front Camera, Starter - Stop/Start System / From: EA308154	$3,702.68	1
14290	LR055009	WIRING - ENGINE COMPARTMENT	LR055009 WIRING - ENGINE COMPARTMENT 5.0L OHC SGDI SC V8 Petrol - AJ133, LHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: EA308154	$2,894.83	1
14290	LR055010	WIRING - ENGINE COMPARTMENT	LR055010 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, RHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: EA308154	$3,582.55	1
14290	LR055096	WIRING - ENGINE COMPARTMENT	LR055096 WIRING - ENGINE COMPARTMENT (+)"KOR", 5.0L OHC SGDI SC V8 Petrol - AJ133, Flex Fuel - E100, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: EA308154	$6,552.49	1
14290	LR055011	WIRING - ENGINE COMPARTMENT	LR055011 WIRING - ENGINE COMPARTMENT 3.0L DOHC GDI SC V6 PETROL, RHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: EA308154	$3,672.49	1
14290	LR055025	WIRING - ENGINE COMPARTMENT	LR055025 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD, Rear View Camera-Fixed, Standard Electric Starter Motor, With Continuous Variable Damping / From: EA327337	$3,606.43	1
14290	LR055026	WIRING - ENGINE COMPARTMENT	LR055026 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, Less Camera System, RHD, Standard Electric Starter Motor, With Continuous Variable Damping / From: EA327337	$3,606.43	1
14290	LR055028	WIRING - ENGINE COMPARTMENT	LR055028 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD, Rear View Camera-Fixed, Starter - Stop/Start System, With Continuous Variable Damping / From: EA327337	$3,606.43	1
14290	LR055029	WIRING - ENGINE COMPARTMENT	LR055029 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, Less Camera System, RHD, Starter - Stop/Start System, With Continuous Variable Damping / From: EA327337	$3,606.43	1
14290	LR055005	WIRING - ENGINE COMPARTMENT	LR055005 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: EA312800	$3,606.43	1
14290	LR055004	WIRING - ENGINE COMPARTMENT	LR055004 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, RHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: EA312800	$3,606.43	1
14290	LR055007	WIRING - ENGINE COMPARTMENT	LR055007 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: EA327337	$3,606.43	1
14290	LR055008	WIRING - ENGINE COMPARTMENT	LR055008 WIRING - ENGINE COMPARTMENT 4.4L DOHC DITC V8 Diesel, RHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: EA327337	$3,606.43	1
14290	LR050555	SENSOR - ENGINE KNOCK	LR050555 SENSOR - ENGINE KNOCK 3.0 V6 Diesel Electric Hybrid Eng, LHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050556	WIRING - ENGINE COMPARTMENT	LR050556 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, RHD, Standard Electric Starter Motor, Surround Camera System, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050557	WIRING - ENGINE COMPARTMENT	LR050557 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050558	WIRING - ENGINE COMPARTMENT	LR050558 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, RHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050563	WIRING - ENGINE COMPARTMENT	LR050563 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, LHD, Rear View Camera-Fixed, Standard Electric Starter Motor, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050564	WIRING - ENGINE COMPARTMENT	LR050564 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, RHD, Rear View Camera-Fixed, Standard Electric Starter Motor, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050565	WIRING - ENGINE COMPARTMENT	LR050565 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, LHD, Rear View Camera-Fixed, Starter - Stop/Start System, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR050566	WIRING - ENGINE COMPARTMENT	LR050566 WIRING - ENGINE COMPARTMENT 3.0 V6 Diesel Electric Hybrid Eng, Less Camera System, RHD, Starter - Stop/Start System, With Continuous Variable Damping / From: FA000001 / To: FA999999	$2,012.30	1
14290	LR058880	WIRING - ENGINE COMPARTMENT	LR058880 WIRING - ENGINE COMPARTMENT (-)"CDN/USA", 5.0L OHC SGDI SC V8 Petrol - AJ133, For Unleaded Fuel, LHD, Starter - Stop/Start System, Surround Camera System, With Continuous Variable Damping / To: EA999999	$3,557.70	1
14290	LR058882	Wire	LR058882 Wire (-)"CDN/USA", 3.0L DOHC GDI SC V6 PETROL, For Unleaded Fuel, LHD, Rear View Camera-Fixed, Starter - Stop/Start System, With Continuous Variable Damping / To: EA999999	-	1	Enquire
14290	LR058458	WIRING - ENGINE COMPARTMENT	LR058458 WIRING - ENGINE COMPARTMENT (-)"CDN/USA", 3.0L DOHC GDI SC V6 PETROL, For Unleaded Fuel, LHD, Less Adaptive Damping, Starter - Stop/Start System, Surround Camera System	$2,588.91	1
14290	LR058928	Wire	LR058928 Wire (-)"CDN/USA", 3.0L DOHC GDI SC V6 PETROL, For Unleaded Fuel, LHD, Less Adaptive Damping, Rear View Camera-Fixed, Starter - Stop/Start System	-	1	Enquire
14290	LR055062	WIRING - ENGINE COMPARTMENT	LR055062 WIRING - ENGINE COMPARTMENT (+)"CDN/USA", 3.0L DOHC GDI SC V6 PETROL, Flex Fuel - E100, LHD, Less Adaptive Damping, Less Camera System, Starter - Stop/Start System / From: EA308154	$2,012.30	1
14452	LR050878	ROTATION STOPPER	LR050878 ROTATION STOPPER	$8.55	4

Electrical Wiring - Engine And Dash (Engine Compartment) ((V) Toea999999)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Electrical Wiring - Engine And Dash (Engine Compartment) ((V) TOEA999999)
