Supercharger (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Supercharger (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

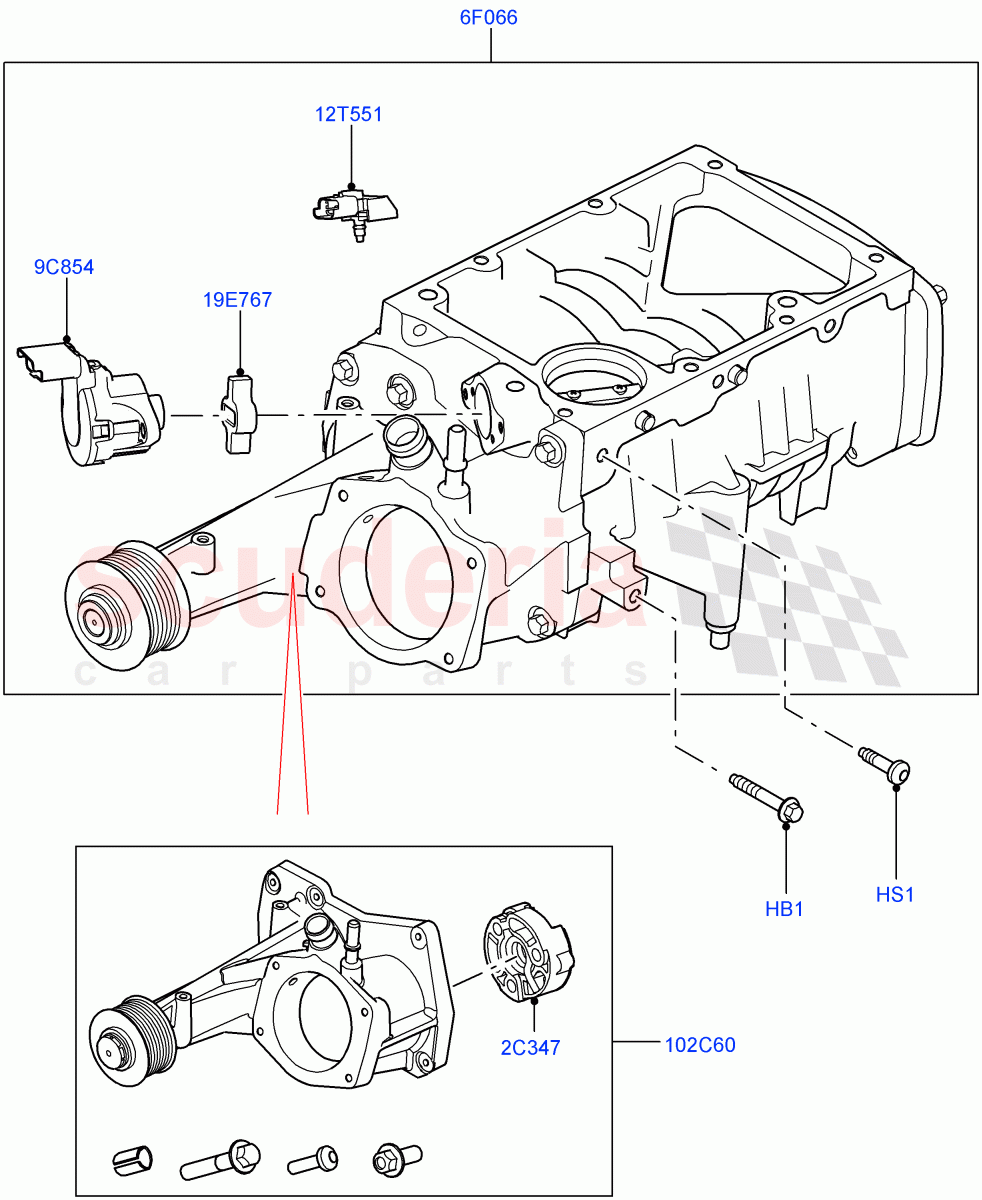

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160736	ISOLATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041659	SUPERCHARGER	Enquire	To Order
	LR065480	SUPERCHARGER	Enquire	To Order
	LR088996	SUPERCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035539	ACTUATOR - SUPERCHARGER BYPASS	Enquire	To Order
	LR087235	ACTUATOR - SUPERCHARGER BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088538	KIT - SUPERCHARGER	Enquire	To Order
	LR088538	KIT - SUPERCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066147	COUPLING - BYPASS ACTUATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Supercharger	-	2	Enquire
HS1	LR010917	SCREW	LR010917 SCREW M8 x 30MM, Manifold To Supercharger	-	6	Enquire
2C347	LR160736	ISOLATOR	LR160736 ISOLATOR 49.38 mm Isolator Diameter. Please Check Before Ordering.	-	1	Enquire
6F066	LR041659	SUPERCHARGER	LR041659 SUPERCHARGER To: EA393459	-	1	Enquire
6F066	LR065480	SUPERCHARGER	LR065480 SUPERCHARGER From: EA393460 / To: GA596271	-	1	Enquire
6F066	LR088996	SUPERCHARGER	LR088996 SUPERCHARGER From: GA596272	-	1	Enquire
9C854	LR035539	ACTUATOR - SUPERCHARGER BYPASS	LR035539 ACTUATOR - SUPERCHARGER BYPASS Electric / To: GA593975	-	1	Enquire
9C854	LR087235	ACTUATOR - SUPERCHARGER BYPASS	LR087235 ACTUATOR - SUPERCHARGER BYPASS Electric / From: GA593976	-	1	Enquire
12T551	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: EA300000	-	1	Enquire
12T551	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EA300001	-	1	Enquire
19E767	LR066147	COUPLING - BYPASS ACTUATOR	LR066147 COUPLING - BYPASS ACTUATOR Supercharger Bypass Solenoid	-	1	Enquire
102C60	LR088538	KIT - SUPERCHARGER	LR088538 KIT - SUPERCHARGER Front End, With Fixing Parts / To: EA999999	-	1	Enquire
102C60	LR088538	KIT - SUPERCHARGER	LR088538 KIT - SUPERCHARGER Front End, Please Consider Repair Using LR160736 Before Ordering LR088538, With Fixing Parts / From: FA000001	-	1	Enquire
