Name: Rear Exhaust System (3.0L DOHC GDI SC V6 PETROL) ((V) TOEA309009)
Rating: 4.3 (1 reviews)

Rear Exhaust System (3.0L DOHC GDI SC V6 PETROL) ((V) TOEA309009) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Rear Exhaust System (3.0L DOHC GDI SC V6 PETROL) ((V) TOEA309009)

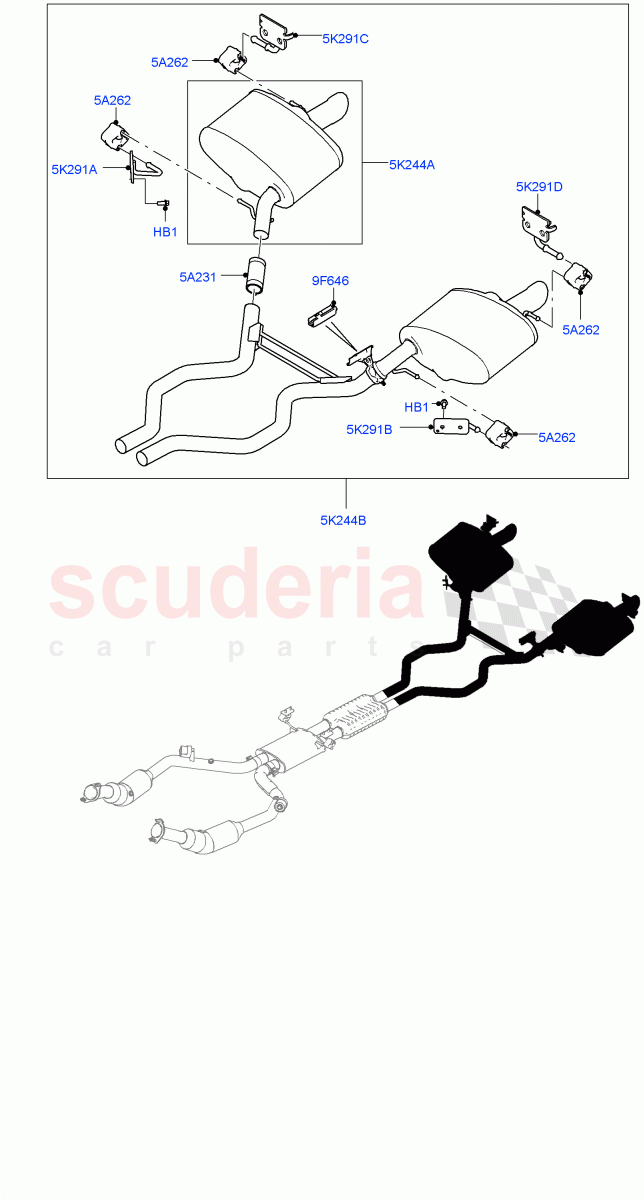

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049200	ACTUATOR - ELECTRONIC EXHAUST VALVE	$419.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047853	MUFFLER - REAR	$870.90	To Order
	LR048869	MUFFLER - REAR	$727.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049199	MUFFLER AND PIPE - REAR	$1,504.23	To Order
	LR049198	MUFFLER AND PIPE - REAR	$1,558.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047860	BRACKET - EXHAUST PIPE MOUNTING	$30.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047861	BRACKET - EXHAUST PIPE MOUNTING	$67.40	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.23	4
5A231	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, Muffler	$77.02	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$28.55	4
5K244A	LR047853	MUFFLER - REAR	LR047853 MUFFLER - REAR Less Chrome Tips	$870.90	1
5K244A	LR048869	MUFFLER - REAR	LR048869 MUFFLER - REAR Chrome Finish, With Chrome Tips	$727.53	1
5K244B	LR049199	MUFFLER AND PIPE - REAR	LR049199 MUFFLER AND PIPE - REAR Chrome Finish, Superseded To LR167017, Retailers Refer To TopiX Reference In Section 309: Exhaust System., With Chrome Tips	$1,504.23	1
5K244B	LR049198	MUFFLER AND PIPE - REAR	LR049198 MUFFLER AND PIPE - REAR Less Chrome Tips, Superseded To LR167018, Retailers Refer To TopiX Reference In Section 309: Exhaust System.	$1,558.28	1
5K291A	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING Front RH, Muffler	$31.63	1
5K291B	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH Front, Muffler	$31.63	1
5K291C	LR047860	BRACKET - EXHAUST PIPE MOUNTING	LR047860 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / RH Rear	$30.84	1
5K291D	LR047861	BRACKET - EXHAUST PIPE MOUNTING	LR047861 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / LH Rear	$67.40	1
9F646	LR049200	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR049200 ACTUATOR - ELECTRONIC EXHAUST VALVE	$419.94	1

Rear Exhaust System (3.0L Dohc Gdi Sc V6 Petrol) ((V) Toea309009)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Rear Exhaust System (3.0L DOHC GDI SC V6 PETROL) ((V) TOEA309009)
