Name: Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, LHD) ((V) TOGA999999)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, LHD) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, LHD) ((V) TOGA999999)

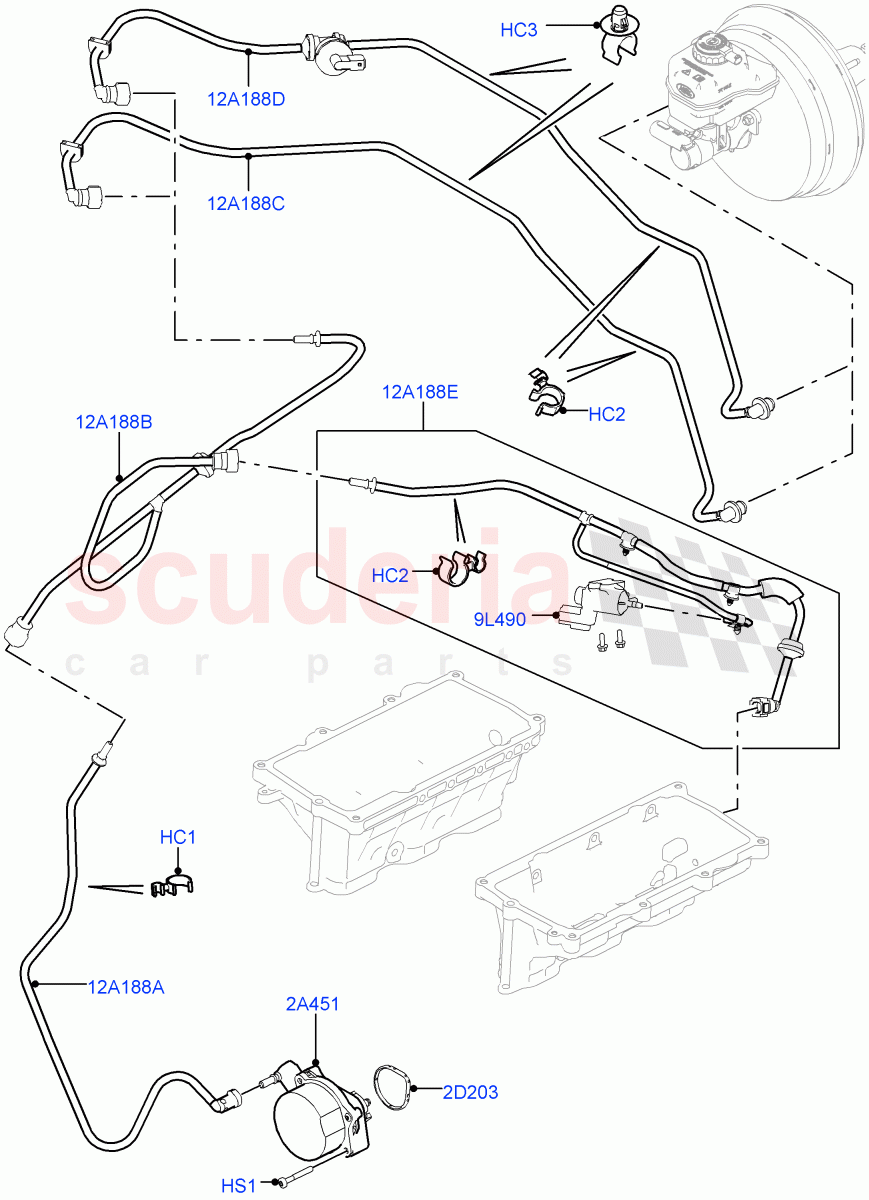

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049402	CLIP - DOUBLE	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049404	CLIP - SPECIAL	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011273	SCREW	$3.39	IN STOCK
	LR060479	SCREW	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010690	PUMP - VACUUM	$587.85	To Order
	LR048796	PUMP - VACUUM	$446.75	To Order
	LR082226	PUMP - VACUUM	$448.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012685	SEAL - VACUUM PUMP	$19.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011982	VALVE - VACUUM CONTROL	$157.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048194	HOSE - VACUUM	$54.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR048193	HOSE - VACUUM	$77.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048198	HOSE - VACUUM	$82.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048199	HOSE - VACUUM	$156.69	To Order
	LR067250	HOSE - VACUUM	$87.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046416	HOSE - VACUUM	$112.61	To Order
	LR105286	HOSE - VACUUM	$126.09	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR049402	CLIP - DOUBLE	LR049402 CLIP - DOUBLE Double, To Vacuum Hose	$2.63	3
HC2	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose	$2.27	2
HC3	LR049404	CLIP - SPECIAL	LR049404 CLIP - SPECIAL To Vacuum Hose	$1.00	1
HS1	LR011273	SCREW IN STOCK	LR011273 SCREW M6 X 45MM, Pump - Vacuum / To: EA999999 IN STOCK	$3.39	2
HS1	LR060479	SCREW	LR060479 SCREW M6 X 65MM, Pump - Vacuum / From: FA000001	$4.15	2
2A451	LR010690	PUMP - VACUUM	LR010690 PUMP - VACUUM To: EA333332	$587.85	1
2A451	LR048796	PUMP - VACUUM	LR048796 PUMP - VACUUM From: EA333333 / To: EA999999	$446.75	1
2A451	LR082226	PUMP - VACUUM	LR082226 PUMP - VACUUM From: FA000001	$448.18	1
2D203	LR012685	SEAL - VACUUM PUMP	LR012685 SEAL - VACUUM PUMP	$19.94	1
9L490	LR011982	VALVE - VACUUM CONTROL	LR011982 VALVE - VACUUM CONTROL Symposer (Resonator)	$157.85	1
12A188A	LR048194	HOSE - VACUUM IN STOCK	LR048194 HOSE - VACUUM Pump - Vacuum IN STOCK	$54.39	1
12A188B	LR048193	HOSE - VACUUM	LR048193 HOSE - VACUUM Centre	$77.74	1
12A188C	LR048198	HOSE - VACUUM	LR048198 HOSE - VACUUM Standard Electric Starter Motor / To Brake Booster	$82.77	1
12A188D	LR048199	HOSE - VACUUM	LR048199 HOSE - VACUUM Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / To: EA389110	$156.69	1
12A188D	LR067250	HOSE - VACUUM	LR067250 HOSE - VACUUM Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: EA389111	$87.23	1
12A188E	LR046416	HOSE - VACUUM	LR046416 HOSE - VACUUM To Symposer / To: FA165445	$112.61	1
12A188E	LR105286	HOSE - VACUUM	LR105286 HOSE - VACUUM To Symposer / From: FA165446	$126.09	1
