Find Your Part

Cylinder Head Cover (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Cylinder Head Cover (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

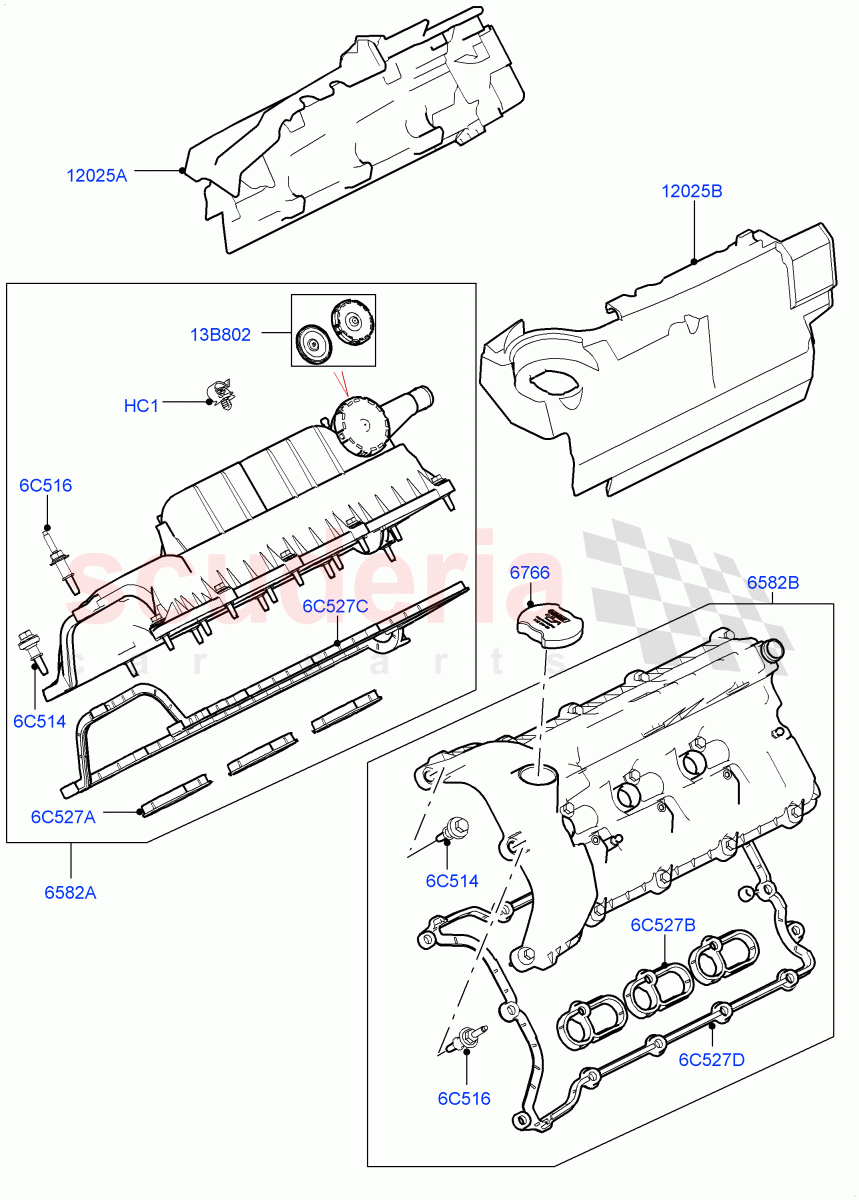

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008882	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051103	CAP - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041684	COVER - CAMSHAFT	Enquire	To Order
	LR051835	COVER - CAMSHAFT	Enquire	To Order
	LR109354	COVER - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041685	COVER - CAMSHAFT	Enquire	To Order
	LR109353	COVER - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011350	SCREW AND SLEEVE - VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011351	STUD AND SLEEVE - VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041660	COVER - IGNITION COIL	Enquire	To Order
	LR082519	COVER - IGNITION COIL	Enquire	To Order
	LR105410	COVER - IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041661	COVER - IGNITION COIL	Enquire	To Order
	LR105409	COVER - IGNITION COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133579	SERVICE KIT - PCV VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011220	GASKET - SPARK PLUG APERTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014345	GASKET - SPARK PLUG APERTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041868	GASKET - CAMSHAFT COVER	Enquire	To Order
	LR089050	GASKET - CAMSHAFT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041869	GASKET - CAMSHAFT COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR008882	CLIP	LR008882 CLIP Cable Anchor Clip (Single)	-	1	Enquire
6C514	LR011350	SCREW AND SLEEVE - VALVE COVER	LR011350 SCREW AND SLEEVE - VALVE COVER Grommet Included	-	29	Enquire
6C516	LR011351	STUD AND SLEEVE - VALVE COVER	LR011351 STUD AND SLEEVE - VALVE COVER Grommet Included	-	3	Enquire
6C527A	LR011220	GASKET - SPARK PLUG APERTURE	LR011220 GASKET - SPARK PLUG APERTURE RH Side Only, Spark Ignition	-	3	Enquire
6C527B	LR014345	GASKET - SPARK PLUG APERTURE	LR014345 GASKET - SPARK PLUG APERTURE LH Side Only, Spark Ignition	-	3	Enquire
6C527C	LR041868	GASKET - CAMSHAFT COVER	LR041868 GASKET - CAMSHAFT COVER RH, Camshaft Cover / To: EA391811	-	1	Enquire
6C527C	LR089050	GASKET - CAMSHAFT COVER	LR089050 GASKET - CAMSHAFT COVER RH, Camshaft Cover / From: EA391812	-	1	Enquire
6C527D	LR041869	GASKET - CAMSHAFT COVER	LR041869 GASKET - CAMSHAFT COVER LH, Camshaft Cover	-	1	Enquire
13B802	LR133579	SERVICE KIT - PCV VALVE	LR133579 SERVICE KIT - PCV VALVE Includes Diaphragm And Cap	-	1	Enquire
6582A	LR041684	COVER - CAMSHAFT	LR041684 COVER - CAMSHAFT RH, With Longer PCV Valve Outlet / To: EA365123	-	1	Enquire
6582A	LR051835	COVER - CAMSHAFT	LR051835 COVER - CAMSHAFT RH, With Shorter PCV Valve Outlet / From: EA365124 / To: HA162085	-	1	Enquire
6582A	LR109354	COVER - CAMSHAFT	LR109354 COVER - CAMSHAFT RH / From: HA162086	-	1	Enquire
6582B	LR041685	COVER - CAMSHAFT	LR041685 COVER - CAMSHAFT LH / To: HA162085	-	1	Enquire
6582B	LR109353	COVER - CAMSHAFT	LR109353 COVER - CAMSHAFT LH / From: HA162086	-	1	Enquire
6766	LR051103	CAP - OIL FILLER	LR051103 CAP - OIL FILLER	-	1	Enquire
12025A	LR041660	COVER - IGNITION COIL	LR041660 COVER - IGNITION COIL RH / To: EA503730	-	1	Enquire
12025A	LR082519	COVER - IGNITION COIL	LR082519 COVER - IGNITION COIL RH / From: EA503731 / To: HA162085	-	1	Enquire
12025A	LR105410	COVER - IGNITION COIL	LR105410 COVER - IGNITION COIL RH / From: HA162086	-	1	Enquire
12025B	LR041661	COVER - IGNITION COIL	LR041661 COVER - IGNITION COIL LH / To: HA162085	-	1	Enquire
12025B	LR105409	COVER - IGNITION COIL	LR105409 COVER - IGNITION COIL LH / From: HA162086	-	1	Enquire
