Name: Rear Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 18, Non SVR, Disc And Caliper Size-Frt 18/RR 18) ((V) FROMJA000001)
Rating: 4.1 (1 reviews)

Rear Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 18, Non SVR, Disc And Caliper Size-Frt 18/RR 18) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 18, Non SVR, Disc And...

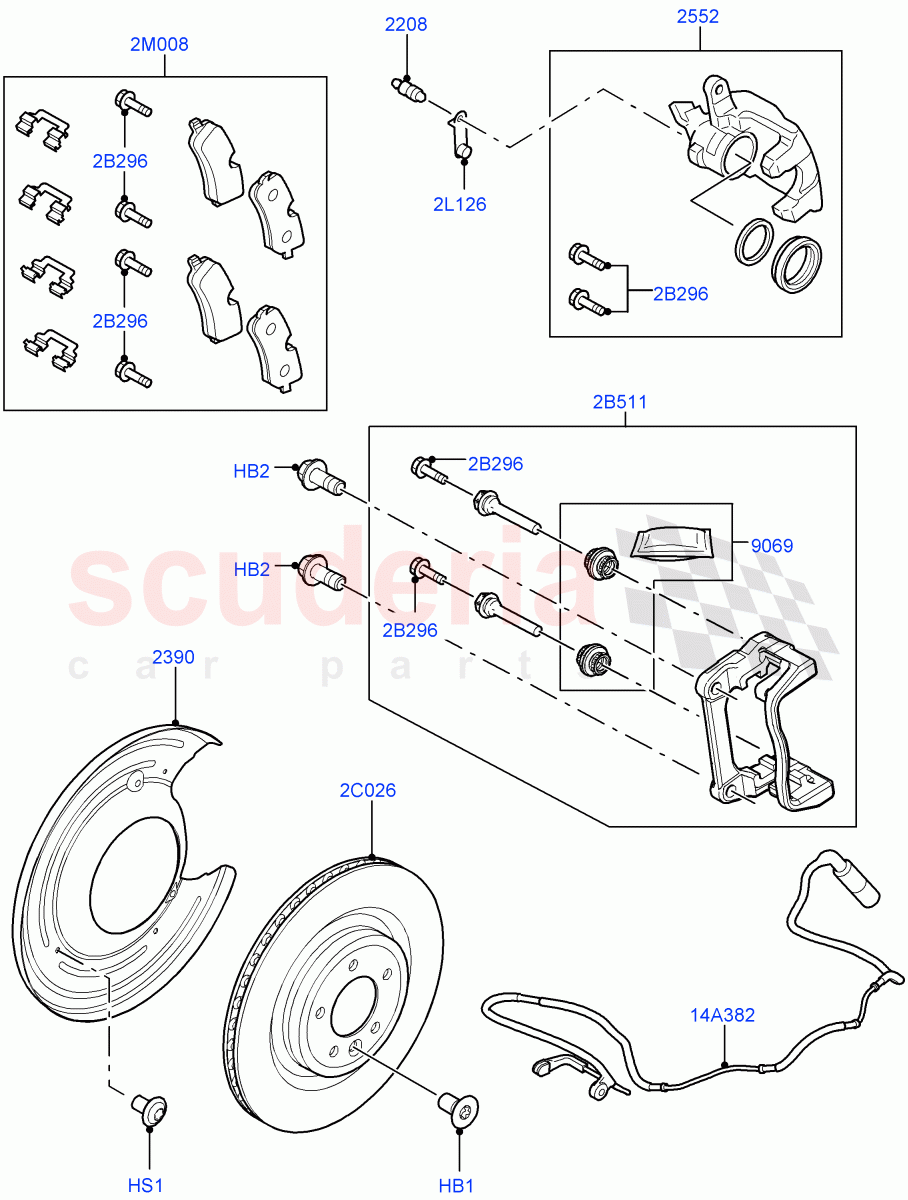

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	$3.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR084069	SHIELD - BRAKE DISC SPLASH	$90.43	To Order
	LR084070	SHIELD - BRAKE DISC SPLASH	$90.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102242	CALIPER - BRAKE	$272.69	To Order
	LR102245	CALIPER - BRAKE	$272.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$23.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031319	BOLT	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR102241	BRACKET - BRAKE CALIPER	$311.72	To Order
	LR102239	BRACKET - BRAKE CALIPER	$303.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084067	DISC - BRAKE	$247.25	To Order
	LR084067	DISC - BRAKE	$247.25	To Order
	LR084067	DISC - BRAKE	$247.25	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	STC1913	CAP - BLEED SCREW	$5.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR162046	KIT - BRAKE LINING	$165.84	IN STOCK
	LR162046	KIT - BRAKE LINING	$165.84	IN STOCK
	LR162046	KIT - BRAKE LINING	$165.84	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084071	WIRE - BRAKE PAD WEAR WARNING	$37.60	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: JA000001 IN STOCK	$3.05	2
HB2	SYG000013	BOLT IN STOCK	SYG000013 BOLT External Torx Head, M12 X 35MM / From: JA000001 IN STOCK	$3.38	4
HS1	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Torx / From: JA000001 IN STOCK	$1.19	6
2B296	LR031319	BOLT IN STOCK	LR031319 BOLT Pin - Guide / From: JA000001 IN STOCK	$3.31	4
2B511	LR102241	BRACKET - BRAKE CALIPER	LR102241 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / LH / From: JA000001	$311.72	1
2B511	LR102239	BRACKET - BRAKE CALIPER	LR102239 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / RH / From: JA000001	$303.86	1
2C026	LR084067	DISC - BRAKE	LR084067 DISC - BRAKE From: JA000001 / To: MA999999	$247.25	2
2C026	LR084067	DISC - BRAKE	LR084067 DISC - BRAKE From: NA700000 / To: NA799999	$247.25	2
2C026	LR084067	DISC - BRAKE	LR084067 DISC - BRAKE From: NA200000 / To: NA205230	$247.25	2
2C026	LR161897	DISC - BRAKE IN STOCK	LR161897 DISC - BRAKE From: NA205231 / To: NA699999 IN STOCK	$247.25	2
2C026	LR161897	DISC - BRAKE IN STOCK	LR161897 DISC - BRAKE From: PA000001 IN STOCK	$247.25	2
2L126	STC1913	CAP - BLEED SCREW IN STOCK	STC1913 CAP - BLEED SCREW From: JA000001 IN STOCK	$5.90	2
2M008	LR162046	KIT - BRAKE LINING IN STOCK	LR162046 KIT - BRAKE LINING Axle Set, With Clips / From: JA000001 / To: MA999999 IN STOCK	$165.84	1
2M008	LR162046	KIT - BRAKE LINING IN STOCK	LR162046 KIT - BRAKE LINING Axle Set, With Clips / From: NA700000 / To: NA799999 IN STOCK	$165.84	1
2M008	LR162046	KIT - BRAKE LINING IN STOCK	LR162046 KIT - BRAKE LINING Axle Set, With Clips / From: NA200000 / To: NA203470 IN STOCK	$165.84	1
2M008	LR162046	KIT - BRAKE LINING IN STOCK	LR162046 KIT - BRAKE LINING Axle Set, With Clips / From: NA203471 / To: NA699999 IN STOCK	$165.84	1
2M008	LR162046	KIT - BRAKE LINING IN STOCK	LR162046 KIT - BRAKE LINING Axle Set, With Clips / From: PA000001 IN STOCK	$165.84	1
14A382	LR084071	WIRE - BRAKE PAD WEAR WARNING IN STOCK	LR084071 WIRE - BRAKE PAD WEAR WARNING From: JA000001 IN STOCK	$37.60	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: JA000001 IN STOCK	$6.46	2
2390	LR084069	SHIELD - BRAKE DISC SPLASH	LR084069 SHIELD - BRAKE DISC SPLASH RH / From: JA000001	$90.43	1
2390	LR084070	SHIELD - BRAKE DISC SPLASH	LR084070 SHIELD - BRAKE DISC SPLASH LH / From: JA000001	$90.43	1
2552	LR102242	CALIPER - BRAKE	LR102242 CALIPER - BRAKE With Non Painted Brake Calipers / RH / From: JA000001	$272.69	1
2552	LR102245	CALIPER - BRAKE	LR102245 CALIPER - BRAKE With Non Painted Brake Calipers / LH / From: JA000001	$272.69	1
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot / From: JA000001	$23.72	2
