Turbocharger (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Turbocharger (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

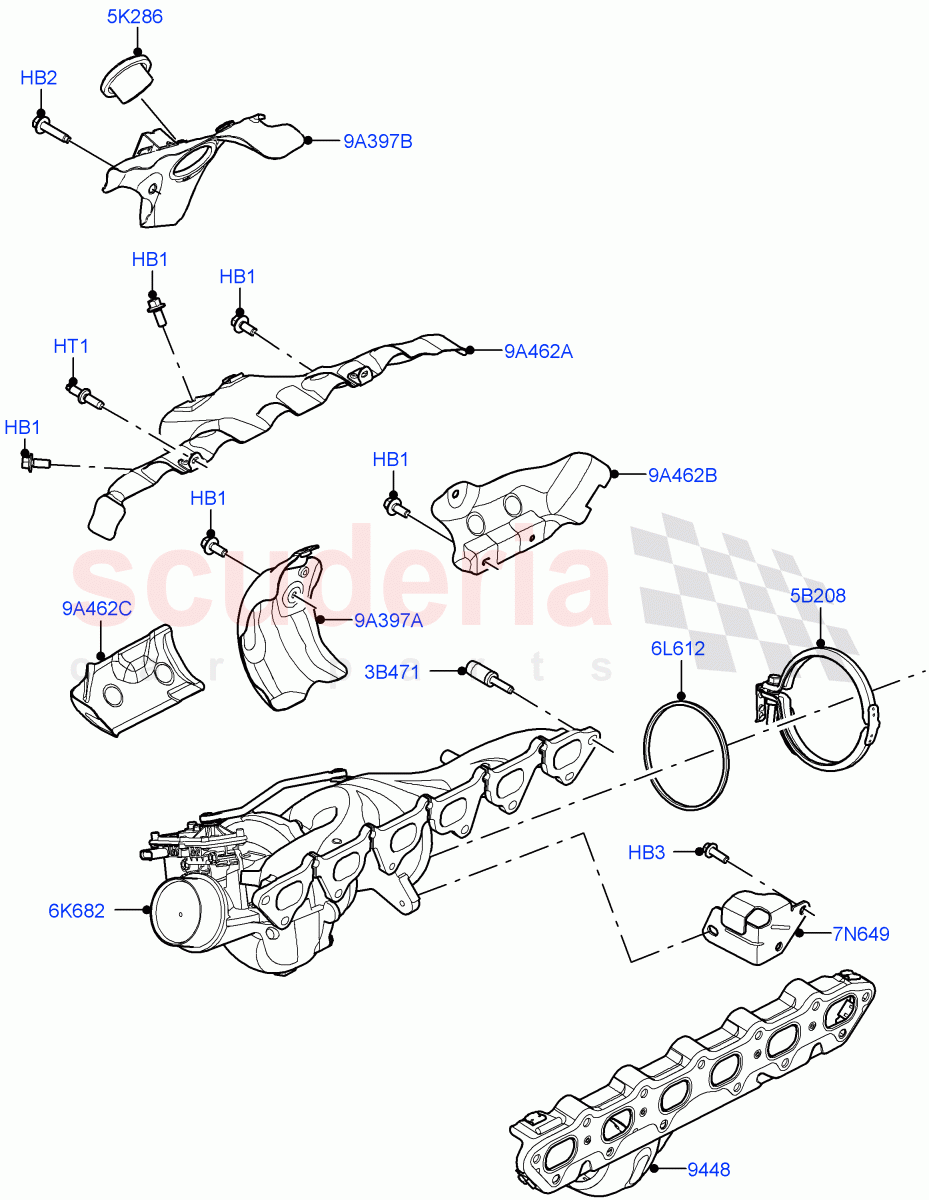

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092104	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128485	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121256	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121352	SPACER - EXHAUST MANIFOLD FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121359	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135843	HEAT SHIELD - TRANSMISSION	Enquire	To Order
	LR139513	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121776	TURBOCHARGER	Enquire	To Order
	LR146149	TURBOCHARGER	Enquire	To Order
	LR121776	TURBOCHARGER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121356	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123366	BRACKET - TURBOCHARGER	Enquire	To Order
	LR138252	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121257	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123037	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR123037	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR123037	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121258	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121259	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121260	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD Heat Shield, M6 X 14MM / From: KA000001	-	6	Enquire
HB2	LR073739	BOLT	LR073739 BOLT Catalyst, Heat Shield, M6 X 25MM / From: KA000001	-	2	Enquire
HB3	LR092104	BOLT	LR092104 BOLT M8 X 25MM, Turbocharger Bracket / From: KA000001	-	2	Enquire
HT1	LR128485	STUD	LR128485 STUD M6 x 18 mm + M6 x 18 mm, To Cylinder Head / From: KA000001	-	2	Enquire
3B471	LR121352	SPACER - EXHAUST MANIFOLD FIXING	LR121352 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: KA000001	-	13	Enquire
5B208	LR121359	CLAMP - EXHAUST	LR121359 CLAMP - EXHAUST Turbocharger Outlet / From: KA000001	-	1	Enquire
5K286	LR135843	HEAT SHIELD - TRANSMISSION	LR135843 HEAT SHIELD - TRANSMISSION Insert / From: KA000001 / To: MA750971	-	1	Enquire
5K286	LR139513	HEAT SHIELD	LR139513 HEAT SHIELD Insert / From: MA750972	-	1	Enquire
6K682	LR121776	TURBOCHARGER	LR121776 TURBOCHARGER From: KA000001 / To: KA999999	-	1	Enquire
6K682	LR146149	TURBOCHARGER	LR146149 TURBOCHARGER From: LA742666 / To: LA799999	-	1	Enquire
6K682	LR121776	TURBOCHARGER	LR121776 TURBOCHARGER From: LA800001 / To: LA899999	-	1	Enquire
6K682	LR121776	TURBOCHARGER	LR121776 TURBOCHARGER From: LA700000 / To: LA742665	-	1	Enquire
6K682	LR146149	TURBOCHARGER	LR146149 TURBOCHARGER From: MA000001	-	1	Enquire
6L612	LR121356	GASKET	LR121356 GASKET Turbocharger Outlet / From: KA000001	-	1	Enquire
7N649	LR123366	BRACKET - TURBOCHARGER	LR123366 BRACKET - TURBOCHARGER From: KA000001 / To: LA716621	-	1	Enquire
7N649	LR138252	BRACKET - TURBOCHARGER	LR138252 BRACKET - TURBOCHARGER From: LA716622	-	1	Enquire
9A397A	LR121257	HEAT SHIELD - TURBOCHARGER	LR121257 HEAT SHIELD - TURBOCHARGER Middle, Turbocharger / From: KA000001	-	1	Enquire
9A397B	LR123037	HEAT SHIELD - TURBOCHARGER	LR123037 HEAT SHIELD - TURBOCHARGER Exhaust / From: KA000001 / To: KA999999	-	1	Enquire
9A397B	LR123037	HEAT SHIELD - TURBOCHARGER	LR123037 HEAT SHIELD - TURBOCHARGER Exhaust / From: LA800001 / To: LA899999	-	1	Enquire
9A397B	LR123037	HEAT SHIELD - TURBOCHARGER	LR123037 HEAT SHIELD - TURBOCHARGER Exhaust / From: LA700000 / To: LA743408	-	1	Enquire
9A397B	LR139000	HEAT SHIELD - TURBOCHARGER	LR139000 HEAT SHIELD - TURBOCHARGER Exhaust / From: LA743409 / To: LA799999	-	1	Enquire
9A397B	LR139000	HEAT SHIELD - TURBOCHARGER	LR139000 HEAT SHIELD - TURBOCHARGER Exhaust / From: MA000001	-	1	Enquire
9A462A	LR121258	SHIELD - EXHAUST MANIFOLD HEAT	LR121258 SHIELD - EXHAUST MANIFOLD HEAT Top / From: KA000001	-	1	Enquire
9A462B	LR121259	SHIELD - EXHAUST MANIFOLD HEAT	LR121259 SHIELD - EXHAUST MANIFOLD HEAT Lower, Rear / From: KA000001	-	1	Enquire
9A462C	LR121260	SHIELD - EXHAUST MANIFOLD HEAT	LR121260 SHIELD - EXHAUST MANIFOLD HEAT Front, Lower / From: KA000001	-	1	Enquire
9448	LR121256	GASKET - EXHAUST MANIFOLD	LR121256 GASKET - EXHAUST MANIFOLD Manifold To Cylinder Head / From: KA000001	-	1	Enquire
