Oil Pan/Oil Level Indicator (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Oil Pan/Oil Level Indicator (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR133629 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR078426 FASTENER - COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR074127 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR074137 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR089234 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR126160 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR121375 TUBE - OIL EXTRACTION Enquire To Order
Photo Part No Description Price (each) Stock
LR175751 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR121376 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR132045 TRAY - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR123026 SHIELD - ENGINE PROTECTING Enquire To Order
View All

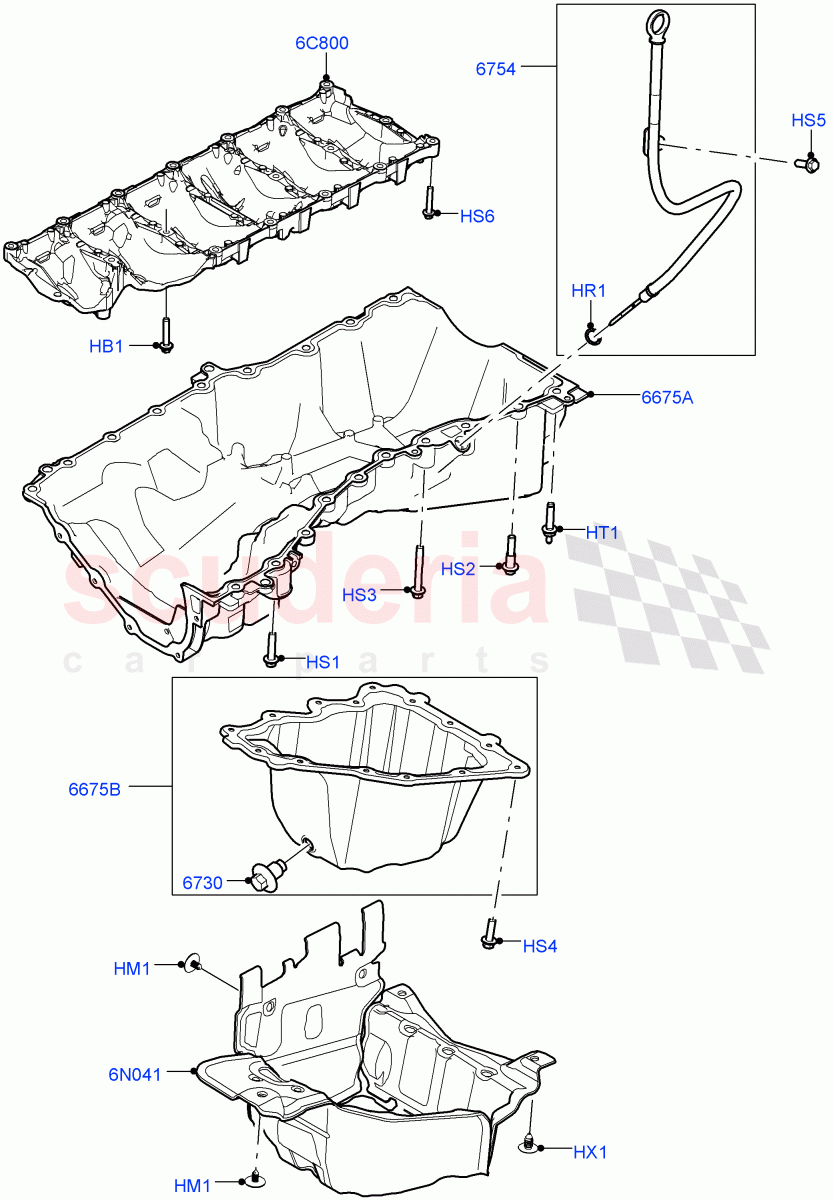

Oil Pan/Oil Level Indicator (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR133629
BOLT
M6 x 35MM, Middle, Windage Tray / From: KA000001 		- 5 Enquire
HM1 LR078426
FASTENER - COVER
4.75 x 0.76 - 7.9, Insulator, Pin - Retainer / From: KA000001 		- 3 Enquire
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator / From: KA000001 		- 1 Enquire
HS1 LR073676
SCREW
M8 x 35mm / From: KA000001 		- 9 Enquire
HS2 LR073677
SCREW
M8 x 42mm / From: KA000001 		- 2 Enquire
HS3 LR074137
SCREW
M8 x 60mm / From: KA000001 		- 2 Enquire
HS4 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001 		- 14 Enquire
HS5 LR071774
SCREW
Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: KA000001 		- 1 Enquire
HS6 LR073635
SCREW
M6 x 35MM, Windage Tray / From: KA000001 		- 12 Enquire
HT1 LR089234
STUD
M8 X 35 + M6 X 12 / From: KA000001 		- 6 Enquire
HX1 LR126160
PIN - FASTENING
6.5 x 6, Insulator / From: KA000001 		- 2 Enquire
6C800 LR132045
TRAY - OIL
From: KA000001 		- 1 Enquire
6N041 LR123026
SHIELD - ENGINE PROTECTING
Oil Pan / From: KA000001 		- 1 Enquire
6675A LR175751
PAN - ENGINE OIL
Upper / From: KA000001 		- 1 Enquire
6675B LR121376
PAN - ENGINE OIL
Lower / From: KA000001 		- 1 Enquire
6730 LR073675
PLUG - OIL DRAIN
M14 X 21 / From: KA000001 		- 1 Enquire
6754 LR121375
TUBE - OIL EXTRACTION
From: KA000001 		- 1 Enquire
