Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, RHD) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, RHD) ((V) FROMKA000001)

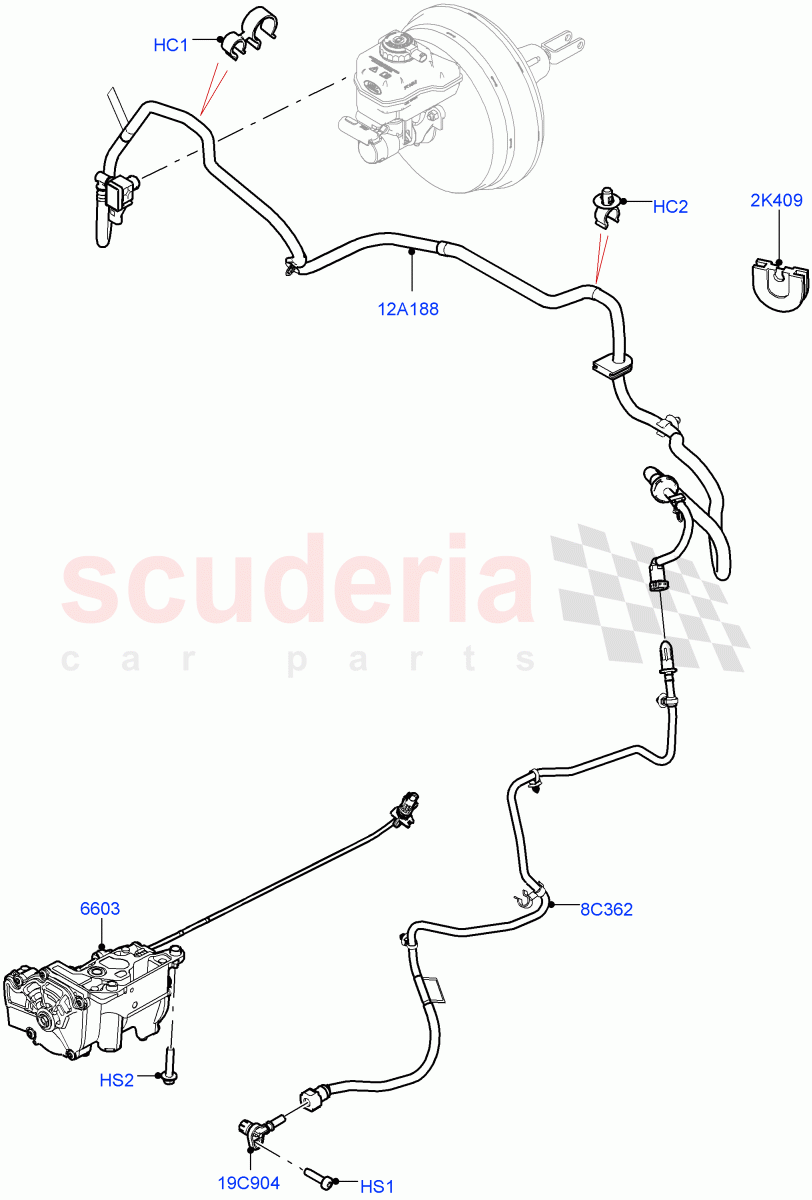

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049402	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049404	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121355	PUMP - OIL & VACUUM	Enquire	To Order
	LR121355	PUMP - OIL & VACUUM	Enquire	To Order
	LR121355	PUMP - OIL & VACUUM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081604	GROMMET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121789	HOSE - VACUUM CONTROL HARNESS	Enquire	To Order
	LR136622	HOSE - VACUUM CONTROL HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120276	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121354	TUBE - VACUUM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR049402	CLIP - DOUBLE	LR049402 CLIP - DOUBLE Double, To Vacuum Hose / From: KA000001	-	1	Enquire
HC2	LR049404	CLIP - SPECIAL	LR049404 CLIP - SPECIAL Single, To Vacuum Hose / From: KA000001	-	3	Enquire
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: KA000001	-	1	Enquire
HS2	LR073676	SCREW	LR073676 SCREW M8 x 35mm, To Vacuum Pump / From: KA000001	-	3	Enquire
2K409	LR081604	GROMMET - BRAKE PIPE	LR081604 GROMMET - BRAKE PIPE From: KA000001	-	1	Enquire
8C362	LR121789	HOSE - VACUUM CONTROL HARNESS	LR121789 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: KA000001 / To: LA877177	-	1	Enquire
8C362	LR136622	HOSE - VACUUM CONTROL HARNESS	LR136622 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: LA877178	-	1	Enquire
12A188	LR120276	HOSE - VACUUM	LR120276 HOSE - VACUUM To Brake Booster / From: KA000001	-	1	Enquire
19C904	LR121354	TUBE - VACUUM	LR121354 TUBE - VACUUM From: KA000001	-	1	Enquire
6603	LR121355	PUMP - OIL & VACUUM	LR121355 PUMP - OIL & VACUUM From: KA000001 / To: MA999999	-	1	Enquire
6603	LR121355	PUMP - OIL & VACUUM	LR121355 PUMP - OIL & VACUUM From: NA700000 / To: NA799999	-	1	Enquire
6603	LR121355	PUMP - OIL & VACUUM	LR121355 PUMP - OIL & VACUUM From: NA200000 / To: NA208038	-	1	Enquire
6603	LR164062	PUMP - OIL & VACUUM	LR164062 PUMP - OIL & VACUUM From: NA208039 / To: NA699999	-	1	Enquire
6603	LR164062	PUMP - OIL & VACUUM	LR164062 PUMP - OIL & VACUUM From: PA000001	-	1	Enquire

Emission Control - Crankcase (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

Evaporative Emission (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, LHD) ((V) FROMKA000001)

Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, RHD) ((V) FROMKA000001)
