Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

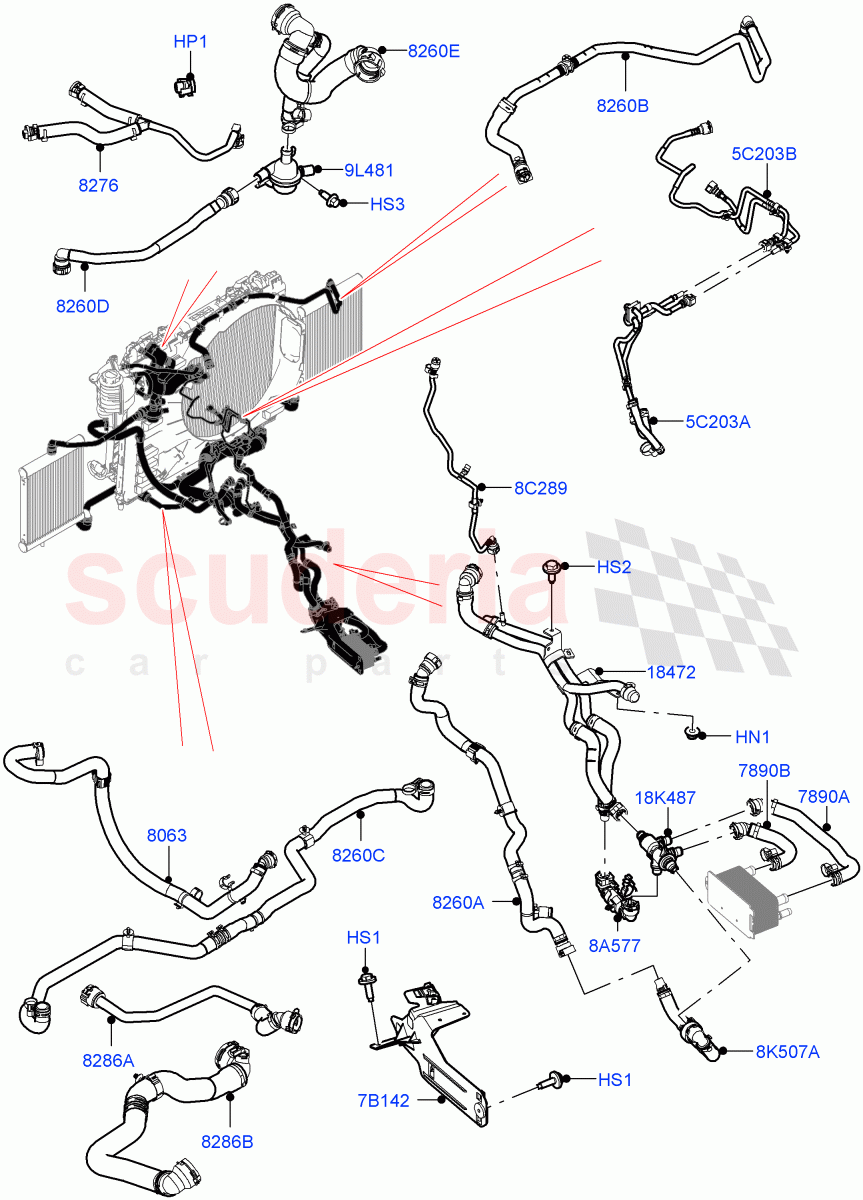

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123076	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128310	HOSE - COOLANT BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123038	TUBE - HEATER WATER	Enquire	To Order
	LR140702	TUBE - HEATER WATER	Enquire	To Order
	LR155132	TUBE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123724	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123723	HOSE - OIL COOLER	Enquire	To Order
	LR133678	HOSE - OIL COOLER	Enquire	To Order
	LR144619	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121395	BRACKET	Enquire	To Order
	LR144618	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123077	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123062	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123061	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123063	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123075	HOSE - RADIATOR	Enquire	To Order
	LR137873	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123058	HOSE - RADIATOR	Enquire	To Order
	LR139058	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123073	HOSE - RADIATOR	Enquire	To Order
	LR139054	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123722	HOSE - COOLING SYSTEM	Enquire	To Order
	LR133667	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123064	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123060	SEPARATOR - COOLANT DEGAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129397	VALVE - COOLANT FLOW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123079	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123078	HOSE - WATER	Enquire	To Order
	LR123078	HOSE - WATER	Enquire	To Order
	LR123078	HOSE - WATER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR123725	HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FX106046	NUT - FLANGED	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: KA000001	-	1	Enquire
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, Expansion Tank, Please Order With LR128310 / From: KA000001	-	1	Enquire
HS1	LR066438	SCREW	LR066438 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: KA000001	-	2	Enquire
HS2	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: KA000001	-	1	Enquire
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM / From: KA000001	-	1	Enquire
5C203A	LR123079	HOSE - WATER	LR123079 HOSE - WATER LH, Engine Control Module (ECM) / From: KA000001	-	1	Enquire
5C203B	LR123078	HOSE - WATER	LR123078 HOSE - WATER RH, Engine Control Module (ECM) / From: KA000001 / To: KA999999	-	1	Enquire
5C203B	LR123078	HOSE - WATER	LR123078 HOSE - WATER RH, Engine Control Module (ECM) / From: LA800000 / To: LA899999	-	1	Enquire
5C203B	LR123078	HOSE - WATER	LR123078 HOSE - WATER RH, Engine Control Module (ECM) / From: LA700000 / To: LA742446	-	1	Enquire
5C203B	LR137425	HOSE - WATER	LR137425 HOSE - WATER RH, Engine Control Module (ECM) / From: LA742447 / To: LA799999	-	1	Enquire
5C203B	LR137425	HOSE - WATER	LR137425 HOSE - WATER RH, Engine Control Module (ECM) / From: MA000001	-	1	Enquire
7B142	LR121395	BRACKET	LR121395 BRACKET From: KA000001 / To: LA744983	-	1	Enquire
7B142	LR144618	BRACKET	LR144618 BRACKET From: LA744984	-	1	Enquire
8A577	LR123722	HOSE - COOLING SYSTEM	LR123722 HOSE - COOLING SYSTEM Valve To Low Temperature Radiator / From: KA000001 / To: KA865469	-	1	Enquire
8A577	LR133667	HOSE - COOLING SYSTEM	LR133667 HOSE - COOLING SYSTEM Inlet Pipe, Valve To Low Temperature Radiator / From: KA865470	-	1	Enquire
8C289	LR123064	HOSE - RADIATOR	LR123064 HOSE - RADIATOR Engine Ventilation / From: KA000001	-	1	Enquire
8K507A	LR123725	HOSE	LR123725 HOSE Lower, To Cylinder Head / From: KA000001	-	1	Enquire
9L481	LR123060	SEPARATOR - COOLANT DEGAS	LR123060 SEPARATOR - COOLANT DEGAS From: KA000001	-	1	Enquire
18K487	LR129397	VALVE - COOLANT FLOW CONTROL	LR129397 VALVE - COOLANT FLOW CONTROL 5 Way / From: KA000001	-	1	Enquire
7890A	LR123724	HOSE - OIL COOLER	LR123724 HOSE - OIL COOLER Outlet pipe / From: KA000001	-	1	Enquire
7890B	LR123723	HOSE - OIL COOLER	LR123723 HOSE - OIL COOLER Inlet Pipe / From: KA000001 / To: KA865504	-	1	Enquire
7890B	LR133678	HOSE - OIL COOLER	LR133678 HOSE - OIL COOLER Inlet Pipe / From: KA865505 / To: LA744983	-	1	Enquire
7890B	LR144619	HOSE - OIL COOLER	LR144619 HOSE - OIL COOLER Inlet Pipe / From: LA744984	-	1	Enquire
8063	LR123076	HOSE - WATER	LR123076 HOSE - WATER From Engine To Expansion Tank, Lower / From: KA000001	-	1	Enquire
8260A	LR123077	HOSE - COOLING SYSTEM	LR123077 HOSE - COOLING SYSTEM To Cylinder Head, Upper / From: KA000001	-	1	Enquire
8260B	LR123062	HOSE - RADIATOR	LR123062 HOSE - RADIATOR Auxiliary Radiator, Inlet / From: KA000001	-	1	Enquire
8260C	LR123061	HOSE - WATER	LR123061 HOSE - WATER Connects Auxiliary Radiators / From: KA000001	-	1	Enquire
8260D	LR123063	HOSE - WATER	LR123063 HOSE - WATER Auxiliary Radiator, Outlet / From: KA000001	-	1	Enquire
8260E	LR123075	HOSE - RADIATOR	LR123075 HOSE - RADIATOR Radiator, Top / To: LA710567	-	1	Enquire
8260E	LR137873	HOSE - RADIATOR	LR137873 HOSE - RADIATOR Radiator, Top / From: LA710568	-	1	Enquire
8276	LR128310	HOSE - COOLANT BLEED	LR128310 HOSE - COOLANT BLEED From Engine To Expansion Tank, Please Order With LR011038 / From: KA000001	-	1	Enquire
8286A	LR123058	HOSE - RADIATOR	LR123058 HOSE - RADIATOR LH, Attaches To Bottom Of Radiator / From: KA000001 / To: LA717244	-	1	Enquire
8286A	LR139058	HOSE - RADIATOR	LR139058 HOSE - RADIATOR LH, Attaches To Bottom Of Radiator / From: LA717245	-	1	Enquire
8286B	LR123073	HOSE - RADIATOR	LR123073 HOSE - RADIATOR RH, Attaches To Bottom Of Radiator / From: KA000001 / To: LA717244	-	1	Enquire
8286B	LR139054	HOSE - RADIATOR	LR139054 HOSE - RADIATOR RH, Attaches To Bottom Of Radiator / From: LA717245	-	1	Enquire
18472	LR123038	TUBE - HEATER WATER	LR123038 TUBE - HEATER WATER From: KA000001 / To: MA758366	-	1	Enquire
18472	LR140702	TUBE - HEATER WATER	LR140702 TUBE - HEATER WATER 5 Way / From: MA758367 / To: MA791700	-	1	Enquire
18472	LR155132	TUBE - HEATER WATER	LR155132 TUBE - HEATER WATER 5 Way / From: MA791701	-	1	Enquire
