Air Cleaner (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Air Cleaner (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR111065 GUIDE - DIRTY AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
LR122708 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR121746 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR113348 GRILLE - DIRTY AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR093998 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR122692 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR122693 DUCT - AIR Enquire To Order
LR145209 DUCT - AIR Enquire To Order
LR133700 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR122694 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR100435 DUCT - DIRTY AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR049313 DUCT - DIRTY AIR Enquire To Order
View All

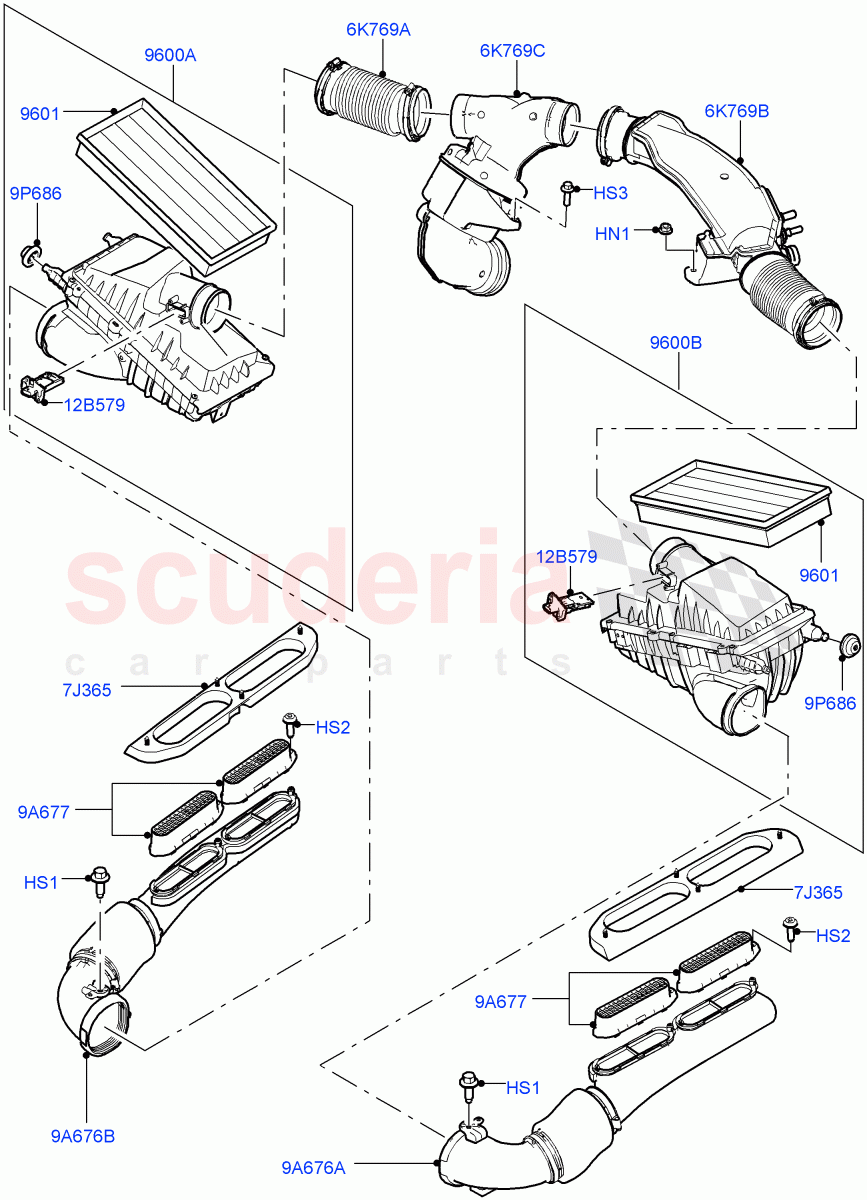

Air Cleaner (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KA000001 		- 1 Enquire
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: KA000001 		- 3 Enquire
HS2 LR008793
SCREW
M5 X 16MM, Torx / From: KA000001 		- 4 Enquire
HS3 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001 		- 1 Enquire
6K769A LR122692
DUCT - AIR
RH / From: KA000001 		- 1 Enquire
6K769B LR122693
DUCT - AIR
LH / From: KA000001 / To: LA742637 		- 1 Enquire
6K769B LR145209
DUCT - AIR
LH / From: MA000001 		- 1 Enquire
6K769B LR133700
DUCT - AIR
LH / From: LA742638 / To: LA999999 		- 1 Enquire
6K769C LR122694
DUCT - AIR
Middle / From: KA000001 		- 1 Enquire
7J365 LR111065
GUIDE - DIRTY AIR DUCT
Dirty Air Duct, Mounted To Hood, RH/LH / From: KA000001 		- 2 Enquire
9A676A LR100435
DUCT - DIRTY AIR
LH / From: KA000001 		- 1 Enquire
9A676B LR049313
DUCT - DIRTY AIR
RH / From: KA000001 		- 1 Enquire
9A677 LR113348
GRILLE - DIRTY AIR DUCT
From: KA000001 		- 4 Enquire
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: KA000001 		- 6 Enquire
12B579 LR093998
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: KA000001 		- 2 Enquire
9600A LR122708
CLEANER - AIR
RH / From: KA000001 		- 1 Enquire
9600B LR121746
CLEANER - AIR
LH / From: KA000001 		- 1 Enquire
9601 LR161843
FILTER - AIR CLEANER
From: KA000001 		- 2 Enquire
