Cylinder Head (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Cylinder Head (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

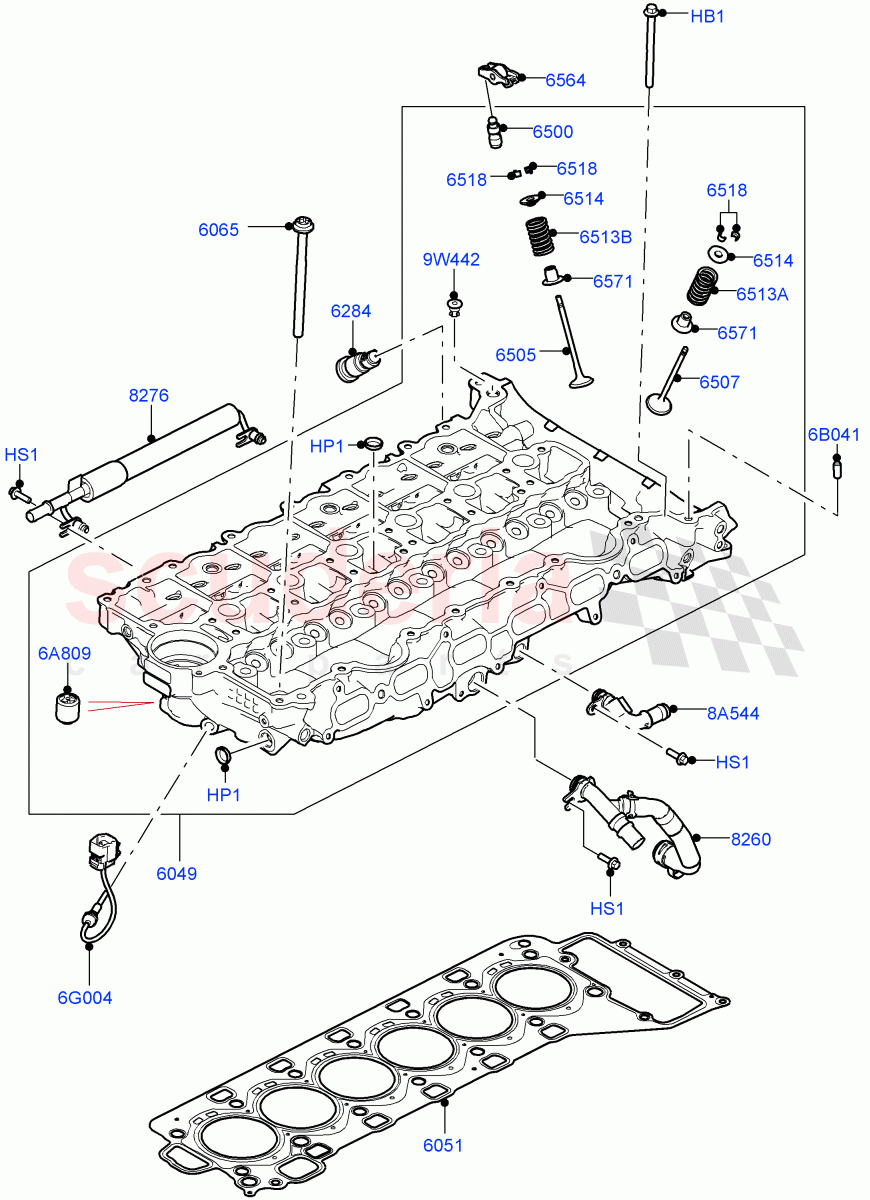

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105438	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170956	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121308	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121241	GASKET-CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091487	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121800	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091763	VALVE - EXHAUST	Enquire	To Order
	LR134473	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121763	VALVE - INLET	Enquire	To Order
	LR146779	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091753	RETAINER - VALVE SPRING - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091754	ARM - VALVE ROCKER	Enquire	To Order
	LR091754	ARM - VALVE ROCKER	Enquire	To Order
	LR091754	ARM - VALVE ROCKER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR116489	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121406	HOSE - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121400	HOSE - COOLANT BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121813	SPRING - VALVE	Enquire	To Order
	LR147017	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121814	SPRING - VALVE	Enquire	To Order
	LR147016	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073651	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121756	HOSE - WATER	Enquire	To Order
	LR150613	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR105438	BOLT - HEX.HEAD	LR105438 BOLT - HEX.HEAD M8 X 75MM / From: KA000001	-	2	Enquire
HP1	LR170956	Plug	LR170956 Plug	-	7	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	-	4	Enquire
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: KA000001	-	1	Enquire
6B041	LR073651	DOWEL - PIN	LR073651 DOWEL - PIN 8 x 19MM / From: KA000001	-	2	Enquire
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Temperature / From: KA000001 / To: MA779323	-	1	Enquire
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Temperature / From: MA779324	-	1	Enquire
8A544	LR121756	HOSE - WATER	LR121756 HOSE - WATER Water Charge Air Cooler / From: KA000001 / To: MA765536	-	1	Enquire
8A544	LR150613	HOSE - WATER	LR150613 HOSE - WATER Water Charge Air Cooler / From: MA765537	-	1	Enquire
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: KA000001	-	1	Enquire
6049	LR121308	CYLINDER HEAD	LR121308 CYLINDER HEAD With Valves / From: KA000001	-	1	Enquire
6051	LR121241	GASKET-CYLINDER HEAD	LR121241 GASKET-CYLINDER HEAD From: KA000001	-	1	Enquire
6065	LR091487	BOLT - HEX.HEAD	LR091487 BOLT - HEX.HEAD From: KA000001	-	14	Enquire
6284	LR121800	TENSIONER - TIMING CHAIN	LR121800 TENSIONER - TIMING CHAIN Secondary / From: KA000001	-	1	Enquire
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: KA000001	-	12	Enquire
6505	LR091763	VALVE - EXHAUST	LR091763 VALVE - EXHAUST From: KA000001 / To: MA781700	-	12	Enquire
6505	LR134473	VALVE - EXHAUST	LR134473 VALVE - EXHAUST From: MA781701	-	12	Enquire
6507	LR121763	VALVE - INLET	LR121763 VALVE - INLET From: KA000001 / To: MA781700	-	12	Enquire
6507	LR146779	VALVE - INLET	LR146779 VALVE - INLET From: MA781701	-	12	Enquire
6513A	LR121813	SPRING - VALVE	LR121813 SPRING - VALVE Intake Side / From: KA000001 / To: MA749902	-	12	Enquire
6513A	LR147017	SPRING - VALVE	LR147017 SPRING - VALVE Intake Side / From: MA749903	-	12	Enquire
6513B	LR121814	SPRING - VALVE	LR121814 SPRING - VALVE EXHAUST SIDE / From: KA000001 / To: MA749902	-	12	Enquire
6513B	LR147016	SPRING - VALVE	LR147016 SPRING - VALVE EXHAUST SIDE / From: MA749903	-	12	Enquire
6514	LR091753	RETAINER - VALVE SPRING - UPPER	LR091753 RETAINER - VALVE SPRING - UPPER From: KA000001	-	24	Enquire
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: KA000001	-	48	Enquire
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: KA000001 / To: MA999999	-	12	Enquire
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: NA700000 / To: NA799999	-	12	Enquire
6564	LR091754	ARM - VALVE ROCKER	LR091754 ARM - VALVE ROCKER From: NA200000 / To: NA208024	-	12	Enquire
6564	LR163044	ARM - VALVE ROCKER	LR163044 ARM - VALVE ROCKER From: NA208025 / To: NA699999	-	12	Enquire
6564	LR163044	ARM - VALVE ROCKER	LR163044 ARM - VALVE ROCKER From: PA000001	-	12	Enquire
6571	LR116489	SEAL - VALVE STEM	LR116489 SEAL - VALVE STEM From: KA000001	-	24	Enquire
8260	LR121406	HOSE - OIL	LR121406 HOSE - OIL To Oil Cooler / From: KA000001	-	1	Enquire
8276	LR121400	HOSE - COOLANT BLEED	LR121400 HOSE - COOLANT BLEED RH Side / From: KA000001	-	1	Enquire
