Insulators - Front (Passenger Compartment) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Insulators - Front (Passenger Compartment)

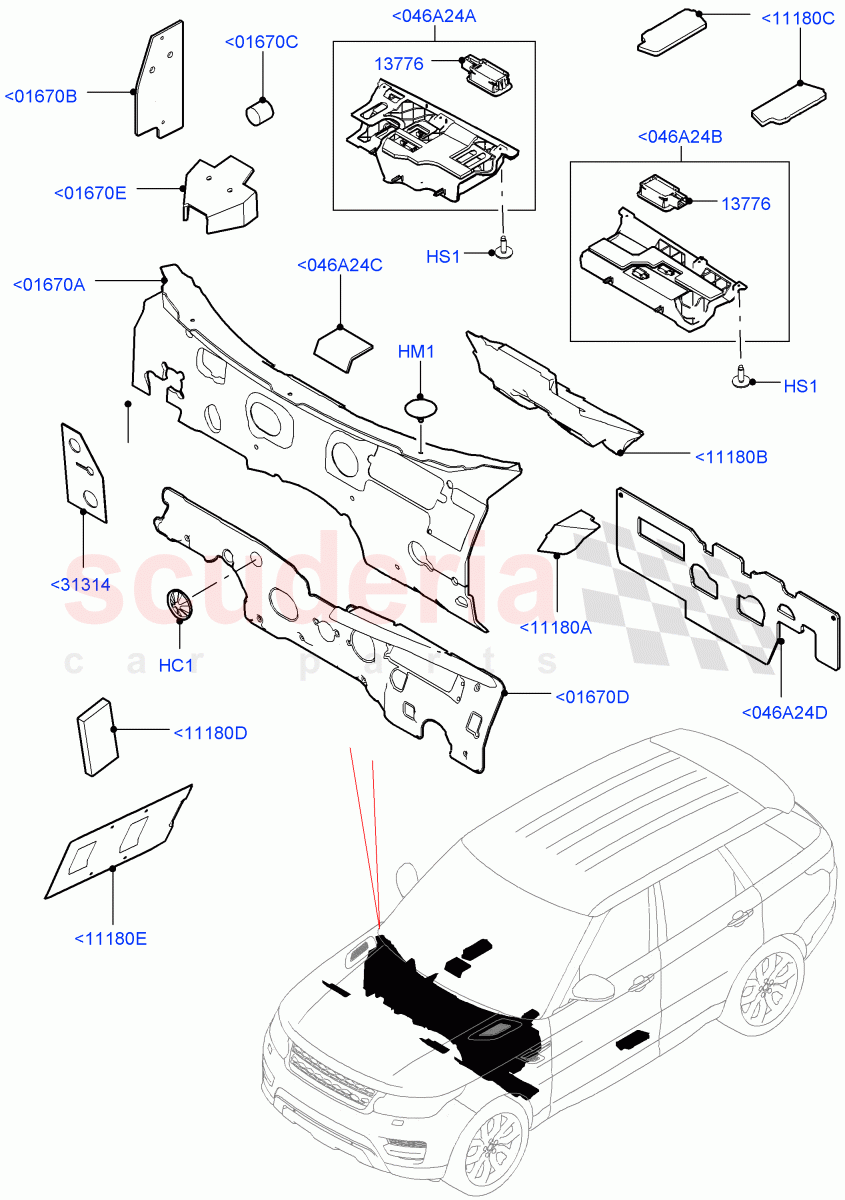

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033697	CLIP - PUSH ON STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500090	PIN - FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003016	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100154	LAMP - INTERIOR	Enquire	To Order
	LR098311	LAMP - INTERIOR	Enquire	To Order
	LR034050	LAMP - INTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037856	INSULATOR - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043798	INSULATOR - BULKHEAD	Enquire	To Order
	LR043800	INSULATOR - BULKHEAD	Enquire	To Order
	LR066359	INSULATOR - DASH PANEL	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR040771	INSULATOR - "A" PILLAR	Enquire	To Order
	LR040772	INSULATOR - "A" PILLAR	Enquire	To Order
	LR148852	INSULATOR - "A" PILLAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR040337	INSULATOR - SOUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049489	INSULATOR - DASH PANEL	Enquire	To Order
	LR049488	INSULATOR - DASH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042766	INSULATOR - STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037806	INSULATOR - "A" PILLAR	Enquire	To Order
	LR037808	INSULATOR - "A" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040777	INSULATOR - TRIM PANEL	Enquire	To Order
	LR040778	INSULATOR - TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041322	INSULATOR - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044575	INSULATOR - FOAM PAD	Enquire	To Order
	LR073083	INSULATOR - FOAM PAD	Enquire	To Order
	LR076687	INSULATOR - FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044573	INSULATOR - FOAM PAD	Enquire	To Order
	LR044573	INSULATOR - FOAM PAD	Enquire	To Order
	LR044573	INSULATOR - FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037812	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR037817	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR089254	INSULATOR - INSTRUMENT PANEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR037813	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR037816	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR098175	INSULATOR - INSTRUMENT PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR040894	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR040894	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR040894	INSULATOR - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139223	INSULATOR - AIR VENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<046A24A	LR037812	INSULATOR - INSTRUMENT PANEL	LR037812 INSULATOR - INSTRUMENT PANEL RHD / RH / To: HA128228	-	1	Enquire
<046A24A	LR037817	INSULATOR - INSTRUMENT PANEL	LR037817 INSULATOR - INSTRUMENT PANEL LHD / LH / To: HA128228	-	1	Enquire
<046A24A	LR089254	INSULATOR - INSTRUMENT PANEL	LR089254 INSULATOR - INSTRUMENT PANEL RHD / RH / From: HA128229 / To: HA999999	-	1	Enquire
<046A24A	LR089256	INSULATOR - INSTRUMENT PANEL	LR089256 INSULATOR - INSTRUMENT PANEL LHD / LH / From: HA128229 / To: HA999999	-	1	Enquire
<046A24A	LR098174	INSULATOR - INSTRUMENT PANEL	LR098174 INSULATOR - INSTRUMENT PANEL RHD / RH / From: JA000001	-	1	Enquire
<046A24A	LR098201	INSULATOR - INSTRUMENT PANEL	LR098201 INSULATOR - INSTRUMENT PANEL LHD / LH / From: JA000001	-	1	Enquire
<046A24B	LR037813	INSULATOR - INSTRUMENT PANEL	LR037813 INSULATOR - INSTRUMENT PANEL LHD / RH / To: HA999999	-	1	Enquire
<046A24B	LR037816	INSULATOR - INSTRUMENT PANEL	LR037816 INSULATOR - INSTRUMENT PANEL RHD / LH / To: HA999999	-	1	Enquire
<046A24B	LR098175	INSULATOR - INSTRUMENT PANEL	LR098175 INSULATOR - INSTRUMENT PANEL LHD / RH / From: JA000001	-	1	Enquire
<046A24B	LR098200	INSULATOR - INSTRUMENT PANEL	LR098200 INSULATOR - INSTRUMENT PANEL RHD / LH / From: JA000001	-	1	Enquire
<046A24C	LR040894	INSULATOR - INSTRUMENT PANEL	LR040894 INSULATOR - INSTRUMENT PANEL Low Line Audio System - 400W / To: HA999999	-	1	Enquire
<046A24C	LR040894	INSULATOR - INSTRUMENT PANEL	LR040894 INSULATOR - INSTRUMENT PANEL Less Emergency Call Button, Low Line Audio System - 400W / From: JA000001 / To: JA999999	-	1	Enquire
<046A24C	LR040894	INSULATOR - INSTRUMENT PANEL	LR040894 INSULATOR - INSTRUMENT PANEL Less Emergency Call Button, Midline Sound System / From: KA000001	-	1	Enquire
<046A24D	LR139223	INSULATOR - AIR VENT	LR139223 INSULATOR - AIR VENT From: LA000001 / To: NA219324	-	1	Enquire
<01670A	LR043798	INSULATOR - BULKHEAD	LR043798 INSULATOR - BULKHEAD LHD / To: FA999999	-	1	Enquire
<01670A	LR043800	INSULATOR - BULKHEAD	LR043800 INSULATOR - BULKHEAD RHD / To: FA999999	-	1	Enquire
<01670A	LR066359	INSULATOR - DASH PANEL	LR066359 INSULATOR - DASH PANEL 2.0L 16V TIVCT T/C 240PS Petrol, LHD / From: GA000001 / To: MA777623	-	1	Enquire
<01670A	LR070890	INSULATOR - BULKHEAD	LR070890 INSULATOR - BULKHEAD 3.0L AJ20D6 Diesel High, LHD / From: GA000001 / To: MA777623	-	1	Enquire
<01670A	LR070725	INSULATOR - DASH PANEL	LR070725 INSULATOR - DASH PANEL 3.0L AJ20D6 Diesel High, RHD / From: JA000001 / To: LA748857	-	1	Enquire
<01670A	LR066359	INSULATOR - DASH PANEL	LR066359 INSULATOR - DASH PANEL 3.0L AJ20P6 Petrol High, LHD / From: JA000001 / To: MA777623	-	1	Enquire
<01670A	LR070891	INSULATOR - DASH PANEL	LR070891 INSULATOR - DASH PANEL 5.0L OHC SGDI SC V8 Petrol - AJ133, RHD / From: JA000001 / To: MA750458	-	1	Enquire
<01670A	LR146830	INSULATOR - DASH PANEL	LR146830 INSULATOR - DASH PANEL 3.0L AJ20D6 Diesel High, RHD / From: LA748858 / To: MA781980	-	1	Enquire
<01670A	LR146829	INSULATOR - DASH PANEL	LR146829 INSULATOR - DASH PANEL 3.0 V6 D Gen2 Mono Turbo, RHD / From: MA750459 / To: MA780120	-	1	Enquire
<01670A	LR070891	INSULATOR - DASH PANEL	LR070891 INSULATOR - DASH PANEL RHD / From: GA000001 / To: HA999999	-	1	Enquire
<01670A	LR156696	INSULATOR - DASH PANEL	LR156696 INSULATOR - DASH PANEL 3.0L AJ20P6 Petrol High, LHD / From: MA777624	-	1	Enquire
<01670A	LR156695	INSULATOR - DASH PANEL	LR156695 INSULATOR - DASH PANEL 3.0 V6 D Gen2 Mono Turbo, RHD / From: MA780121	-	1	Enquire
<01670A	LR156694	INSULATOR - DASH PANEL	LR156694 INSULATOR - DASH PANEL 2.0L AJ200P Hi PHEV, RHD / From: MA781981	-	1	Enquire
<01670A	LR156693	INSULATOR - DASH PANEL	LR156693 INSULATOR - DASH PANEL 5.0L P AJ133 DOHC CDA S/C Enhanced, LHD / From: MA777624	-	1	Enquire
<01670B	LR040771	INSULATOR - "A" PILLAR	LR040771 INSULATOR - "A" PILLAR RHD / RH / To: MA759822	-	1	Enquire
<01670B	LR040772	INSULATOR - "A" PILLAR	LR040772 INSULATOR - "A" PILLAR LHD / LH / To: MA759822	-	1	Enquire
<01670B	LR148852	INSULATOR - "A" PILLAR	LR148852 INSULATOR - "A" PILLAR RHD / RH / From: MA759823	-	1	Enquire
<01670B	LR148853	INSULATOR - "A" PILLAR	LR148853 INSULATOR - "A" PILLAR LHD / LH / From: MA759823	-	1	Enquire
<01670C	LR040337	INSULATOR - SOUND	LR040337 INSULATOR - SOUND Includes RH And LH Sides	-	2	Enquire
<01670D	LR049489	INSULATOR - DASH PANEL	LR049489 INSULATOR - DASH PANEL 2.0L I4 DSL HIGH DOHC AJ200, RHD	-	1	Enquire
<01670D	LR049488	INSULATOR - DASH PANEL	LR049488 INSULATOR - DASH PANEL 2.0L 16V TIVCT T/C 240PS Petrol, LHD	-	1	Enquire
<01670E	LR042766	INSULATOR - STEERING COLUMN	LR042766 INSULATOR - STEERING COLUMN Steering Column / From: JA000001	-	1	Enquire
<11180A	LR037806	INSULATOR - "A" PILLAR	LR037806 INSULATOR - "A" PILLAR LH, "A" Pillar	-	1	Enquire
<11180A	LR037808	INSULATOR - "A" PILLAR	LR037808 INSULATOR - "A" PILLAR RH, "A" Pillar	-	1	Enquire
<11180B	LR040777	INSULATOR - TRIM PANEL	LR040777 INSULATOR - TRIM PANEL RHD / For Passengers Side	-	1	Enquire
<11180B	LR040778	INSULATOR - TRIM PANEL	LR040778 INSULATOR - TRIM PANEL LHD / For Passengers Side	-	1	Enquire
<11180C	LR041322	INSULATOR - FLOOR	LR041322 INSULATOR - FLOOR "B" Pillar	-	2	Enquire
<11180D	LR044575	INSULATOR - FOAM PAD	LR044575 INSULATOR - FOAM PAD A/C Main Unit, Pad / To: FA514315	-	1	Enquire
<11180D	LR073083	INSULATOR - FOAM PAD	LR073083 INSULATOR - FOAM PAD A/C Main Unit, Pad / From: FA514316 / To: FA519670	-	1	Enquire
<11180D	LR076687	INSULATOR - FOAM PAD	LR076687 INSULATOR - FOAM PAD A/C Main Unit, Pad / From: FA519671	-	1	Enquire
<11180E	LR044573	INSULATOR - FOAM PAD	LR044573 INSULATOR - FOAM PAD Pad, Tunnel Insulator / To: HA999999	-	1	Enquire
<11180E	LR044573	INSULATOR - FOAM PAD	LR044573 INSULATOR - FOAM PAD With Diesel Fuel Capability / Pad, Tunnel Insulator / From: JA000001 / To: KA999999	-	1	Enquire
<11180E	LR044573	INSULATOR - FOAM PAD	LR044573 INSULATOR - FOAM PAD 4.4L DOHC DITC V8 Diesel / Pad, Tunnel Insulator / From: LA000001	-	1	Enquire
<31314	LR037856	INSULATOR - FLOOR	LR037856 INSULATOR - FLOOR RHD	-	1	Enquire
HC1	LR033697	CLIP - PUSH ON STEEL	LR033697 CLIP - PUSH ON STEEL Bulkhead, M6	-	1	Enquire
HM1	RZM500090	PIN - FIXING	RZM500090 PIN - FIXING 6.5 X 17MM, Dash Panel	-	3	Enquire
HS1	LR003016	SCREW AND WASHER	LR003016 SCREW AND WASHER 17.0MM, 4.2	-	3	Enquire
13776	LR100154	LAMP - INTERIOR	LR100154 LAMP - INTERIOR Configurable Ambient Lighting / Courtesy Lamp: footwell IND#161, Located On Each Side, RH/LH / From: JA000001	-	2	Enquire
13776	LR098311	LAMP - INTERIOR	LR098311 LAMP - INTERIOR Ambient Lighting-High Line Interior / Courtesy Lamp: footwell IND#161, Located On Each Side, RH/LH / From: JA000001	-	2	Enquire
13776	LR034050	LAMP - INTERIOR	LR034050 LAMP - INTERIOR Courtesy Lamp: footwell IND#161, Located On Each Side, RH/LH / To: HA999999	-	2	Enquire
